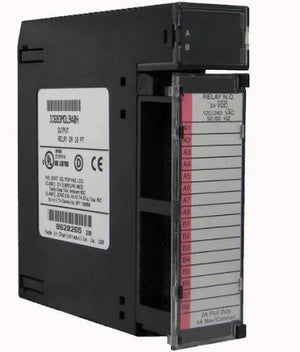

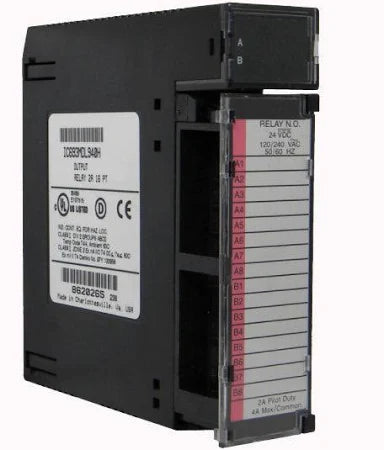

IC693MDL753 | GE Fanuc Logic Output Module
- Regular price
- $284.00
- Sale price
- $284.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693MDL753
Description
The GE Fanuc IC693MDL753 is a 12/24 volt DC, 0.5A Positive Logic Output module designed for the Series 90-30 Programmable Logic Controller (PLC). Featuring 32 discrete outputs organized into four isolated groups of eight, each group has its own dedicated common. As sourcing type outputs, they switch loads on the positive side of the power supply, supporting voltages from +12V to +24V DC (+20%, –15%). Each output can handle a maximum current of 0.5 amps per point. User I/O connectors within the group commons accommodate up to 3A current, with recommended connections made to both pins for stability.
Technical Specifications
|
Brand |
GE Fanuc |
|
Series |
Series 90-30 |
|
Manufacturer |
GE Fanuc; Emerson Automation (Current) |
|
Part Number |
IC693MDL753 |
|
Description |
Discrete output module |
|
Product Type |
Digital I/O |
|
No. of Channels |
Thirty-Two (32) |
|
No. of Output Groups |
Four (4) |
|
Channels per Group |
Eight (8) |
|
Output Points |
32 |
|
Compatibility |
GE Fanuc 90-30 PLCs |
|
Output Voltage Range |
10.2-28.8 VDC |
|
Nominal Output Voltage |
12-24 VDC |
|
Isolation |
1500 volts between field side and logic side; 250 Volts between groups |
|
Module Current Draw |
260 milliamps |
|
Maximum Inrush Current |
5.4 A for 20 ms |
|
Output Signal Range |
12 to 24 volts DC (+20%, –15%) |
|
Module Voltage Input |
5 Volts DC |
|
Nominal Input Voltage |
12 / 24 VDC |
|
Output Point Current Draw |
16 milliamps |
|
Off Response Time, Maximum |
0.5 ms |
|
Output Current |
0.5 Amperes per point; 4 Amperes per module; 3 Amperes per group common pin |
|
LED Current Draw |
4.7 milliamps |
|
Output Voltage Drop |
0.3 volt, maximum |
|
Current Draw |
260 mA |
|
Inrush Current |
5.4 Amps |
|
Off-state Leakage |
1 mA maximum |
|
On Response Time, Maximum |
0.5 ms |
Information About IC693MDL753
The GE Fanuc IC693MDL753 is a 12/24 volt DC, 0.5A Positive Logic Output module designed for integration with the Series 90-30 Programmable Logic Controller (PLC). Featuring 32 discrete outputs organized into four isolated groups of eight, each group is equipped with its dedicated common terminal. These outputs operate as sourcing type, controlling loads on the positive side of the power supply to deliver current to connected loads. The module supports switching capabilities across a range from +12 to +24 VDC (+20%, –15%), with each point capable of sourcing up to 0.5 amps.
User I/O connectors within the group commons feature two pins, each capable of handling currents up to 3A. For optimal operation, it is recommended to establish connections to both pins when connecting the group common.
Each group of output points can independently drive various loads, contingent upon the provision of an external power source by the user. Opto-couplers integrated into the module provide essential backplane isolation between the field side and logic side, ensuring reliable and safe operation within the PLC system.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
