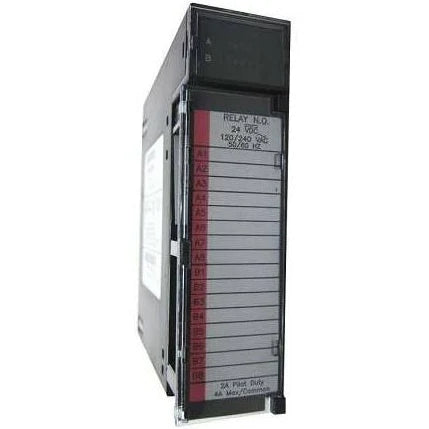

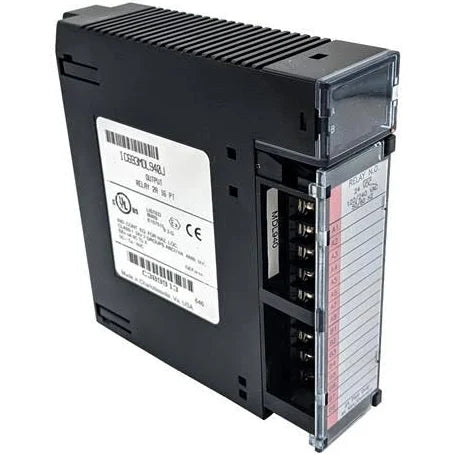

IC693MDL940 | GE FANUC Series 90-30 module
- Regular price
- $259.00
- Sale price
- $259.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: IC693MDL940
Description
The GE Fanuc IC693MDL940 is a Series 90-30 module. This module is a relay output module that features Sixteen (16) Normally Open (NO) output channels with 2 Ampere capacity. This module has an operating voltage range of 5-30VDC and 5 to 250VAC, 50/60 Hz. It has Four (4) groups of output with Four (4) channels per group.
Technical Specifications
| Brand | GE FANUC |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Series | Series 90-30 |
| Part Number | IC693MDL940 |
| Off Response Time | 15 ms maximum |
| Inrush Current | 5 Amperes |
| Output Current per common | 4 Amperes |
| Output current per channel | 2 Amperes |
| No. of channels per group | Four (4) channels |
| No. of groups | Four (4) groups |
| Contact Form | Normally Open (N.O.) |
| Output Voltage Range | 5 to 30VDC and 5 to 250VAC, 50/60 |
| No of Channels | Sixteen (16) |
| Product Description | Relay Output Module |
| On Response Time | 15 ms maximum |
| Minimum Load | 10 mA |
| Rated Voltage | 24 Volts DC, 120/240 Volts AC |
| Operating Voltage | 5 to 30 Volts DC 5 to 250 Volts AC, 50/60 Hz |
| Outputs per Module | 16 |
| Maximum Load | 16 Amps maximum per module |
| Maximum Inrush | 5 Amps |
Information About IC693MDL940
The IC693MDL940 is a GE-Fanuc 90-3- Series Programmable Logic Controller (PLC) module. This module is a Relay Output module that is designed with Four (4) groups of Four (4) output channels each, total of Sixteen (16) output channels. Each channel of this relay output module is in form of a Normally Open (NO) contact with a maximum current capacity of 2 Amperes pilot duty per output channel while the maximum output capacity per common is 4 Amperes with minimum load of 10 mA.
Each output channel has a maximum OFF to ON transition of 15 ms and ON to OFF transition time of 15 ms with maximum inrush current capacity of 5 Amperes. This module is designed with field side and logic side isolation of 1500 Volts and 500 Volts between groups. This module occupies a single slot of the 90-30 chassis with internal power consumption of 7 mA (all outputs on) from 5 volt bus on backplane and 135 mA (all outputs on) from relay 24V bus on backplane. The IC693MDL940 has a rated operational voltage of 24 volts DC, 120/240 volts AC while the operating voltage range is 5 to 30VDC and 5 to 250VAC, 50/60 Hz.
The IC693MDL940 may be used to operate actuating devices such as Pilot lamps, Siren, Buzzer, Horn, Contactors, Relay, Solenoid actuated valves, and other compatible devices. Each group may be operated with different voltage ranges per group. This module is equipped with LED indicators that represent the status of the module and individual channels.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
