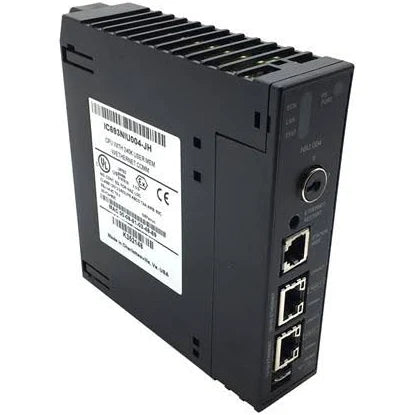

IC693NIU004 | GE Fanuc Series 90-30 Ethernet Network Interface Unit With Dual 10/100 Ports and EGD Support
- Regular price
- $2,479.00
- Sale price
- $2,479.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693NIU004
Description
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC693NIU004 |
| Subcategory | PLC Module/Rack |
| Type | Ethernet Network Interface Unit |
| Memory Storage | RAM and Flash |
| Discrete Inputs (%I) | 2048 |
| Discrete Outputs (%Q) | 2048 |
| Analog Inputs (%AI) | 1268 |
| Analog Outputs (%AQ) | 512 |
| Internal Coils (%M) | 4096 (system reserved) |
| Temporary Coils (%T) | 256 bits |
| Communication Ports | Two 10/100 Base-T Ethernet ports |
| Supported Protocols | SRTP Server, Ethernet Global Data (EGD) |
| Communication Speed | 10/100 Mbps, auto-sensing |
| Number of IP Addresses | 1 |
| SNP/SNPX Support | Via RS-485 power supply port |
| Slot Width | Single-slot module |
| Series Compatibility | GE Fanuc Series 90-30 |
| Application | Remote I/O and distributed control networking |
| Network Type | Ethernet (built-in) |
Information About IC693NIU004
The IC693NIU004 operates as a dedicated Ethernet NIU within the GE Fanuc Series 90-30 platform, now under Emerson Automation. It facilitates remote I/O architectures by broadcasting and receiving Ethernet Global Data (EGD) and by acting as an SRTP server for direct PLC communication. The unit features onboard RAM and Flash memory, allowing retention of configuration data while supporting significant discrete and analog data capacity for expanded control applications. With dual auto-sensing 10/100 Base-T/TX Ethernet ports, the module ensures reliable network redundancy and high-speed data exchange. Designed for flexibility and system scalability, it enables efficient integration into modern industrial networks requiring distributed I/O processing.
Key Features:
- Remote I/O capability: Enables Ethernet-based distributed I/O stations for Series 90-30 PLCs.
- Dual Ethernet ports: Two 10/100 Mbps auto-sensing ports for flexible network topologies.
- Large I/O capacity: Supports 2048 discrete inputs and outputs, plus extensive analog word handling.
- SRTP and EGD support: Provides interoperability with GE Fanuc controllers and networked systems.
- Built-in memory: Includes RAM and Flash for configuration storage and system data.
- Single-slot design: Fits efficiently into Series 90-30 racks without requiring additional modules.
- Dedicated IP address: Operates with one IP address for simplified network management.
- High communication throughput: Auto-negotiated 10/100 Mbps Ethernet speeds.
- System coil storage: Reserves 4096 %M internal coils for system-level operations.
- RS-485 SNP/SNPX capability: Available through the power supply for additional communication options.
- Supports analog and discrete data: Handles AI, AQ, I, Q, T, and M register types for comprehensive I/O mapping.
The IC693NIU004 delivers the reliability and precision required for Ethernet-based remote I/O communication in Series 90-30 industrial control systems.
