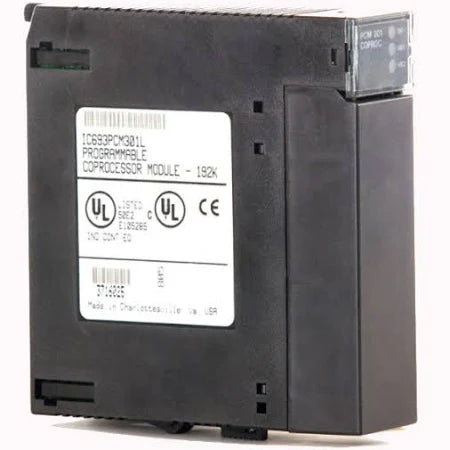

IC693PCM301 | GE Fanuc Programmable Coprocessor Module
- Regular price
- $579.00
- Sale price
- $579.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693PCM301
Description
The IC693PCM301 is a Programmable Coprocessor Module (PCM) from the Series 90-30 PLC, originally by GE Fanuc Automation, now under Emerson Automation. This module includes a 25-pin D-shell port (combining Port 1 and Port 2) that supports Modbus RTU and CCM protocols. It features 192 Kbytes of built-in memory, with 47 Kbytes dedicated to Megabasic memory. The IC693PCM301 is capable of running applications not native to the Series 90-30 CPU, such as those developed in the Basic Programming language.
Technical Specifications
| Brand | GE Fanuc |
| Part Number | IC693PCM301 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Series | Series 90-30 |
| Product Description | Programmable Coprocessor module |
| Communication Protocols Supported | Modbus RTU and GE Fanuc CCM |
| Replacement battery | IC693ACC301 |
| Memory Backup | Lithium Battery provided |
| Slot width | Single slot |
| Internal Power | 425 mA at 5 VDC |
| Number of LED lights | 3 |
| Communication Ports | Two (2) internally installed ports via the (1) 25-pin D Shell port |
| Total memory | 192K |
| Communication protocol | Modbus; CCM |
| Battery Backed RAM | 192 K or EPROM option |
| Supported devices | Programming terminals, CRTs, Bar code readers, scales, printers, ASCII devices, Remote Terminal Units (RTU) master devices |
| Compatible devices | CRTs, bar code readers, scales, printers, ASCII devices, etc. |
| Internal Power | 425 mA at 5 VDC |
| Programming languages | Megabasic, C Language |
| Number of LED lights | 3 |
| Supported non-native programming | Basic Programming Language (BAS) |
| Mounting location | CPU baseplate only |
| Module location | CPU baseplate only except slot 1 |
| MegaBasic memory | 47K |
| LED indicators | OK; US1 and US2 |
| Module re-initialization | Restart pushbutton included |
| Compatible cables | IC693CBL304/305 Wye cable; IC690CBL701/702/705 |
Information About IC693PCM301
The IC693PCM301 is a Programmable Coprocessor Module (PCM) designed for compatibility with the Series 90-30 Programmable Logic Controller (PLC) product family, initially manufactured by GE Fanuc Automation and now under Emerson Automation. This module supports Modbus and GE Fanuc’s CCM protocols through an integrated 25-pin port, functioning as a dual-port interface.
The IC693PCM301 extends the processing capabilities of the host controller, enabling the execution of non-native or third-party applications, such as those developed using the Basic Programming Language (BAS). This facilitates the implementation of custom executable files for SCADA systems. Additionally, the module supports data exchange with programming terminals, CRTs, bar code readers, scales, printers, ASCII devices, and RTU master devices.
This module is installed in the CPU baseplate, excluding the slot reserved for the CPU (CPU/1), and is not compatible with expansion or remote racks, nor with embedded CPU models like CPU 311, 313, and 323. It features indicator lights, including a Module OK indicator and US1 and US2 LEDs for the two internal serial ports. A restart pushbutton allows for module initialization without restarting the entire rack or using software.
The IC693PCM301 offers 192 Kbytes of total memory, with 47 Kbytes dedicated to Megabasic memory. It provides additional processing power to Series 90-30 PLCs, enabling communication with peripheral devices such as serial programming terminals, monitors, bar code readers, personal computers, scales, printers, ASCII devices, and RTUs configured as master devices. The module supports various protocols, including GE Fanuc CCM, MegaBasic, Modbus RTU, and C programming language protocols.
The IC693PCM301 has an internal lithium battery to retain stored information during power interruptions, ensuring long-term data integrity.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
