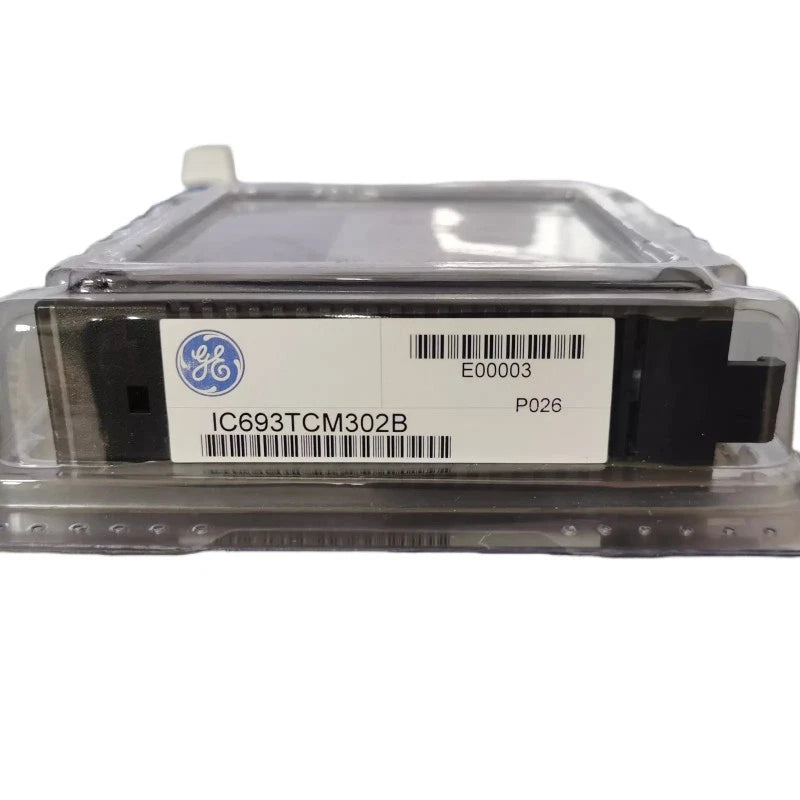

IC693TCM302B | Fanuc 8 Zone Temperature Control Module
- Regular price
- $2,327.00
- Sale price
- $2,327.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693TCM302B
Description
The A16B‑2202‑0432 is a Fanuc Alpha Spindle Drive Control PCB used in 6088-series spindle amplifier modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC693TCM302B |
| Subcategory | PLC Module/Rack |
| Number of Channels | 8 input / 8 output |
| Input Type | Thermocouple, RTD |
| Output Type | Relay |
| Common Mode Voltage | 12 V |
| Current Consumption | 150 mA at 5 Volts DC |
| Overload Threshold Current | Refer to the specific documentation |
| Temperature Control Accuracy | Typically within ±1 °C (for one zone) |
| Operating Modes | Automatic, Manual (configurable per zone) |
| Indicators | 12 LEDs for thermocouple status and fault indication |
| Fuse | 2 Amp user-replaceable fuse |
| Compatibility | GE Fanuc Series 90-30 PLC systems |
| Configuration Software | Logicmaster 90 |
| Weight | 0.24 lbs |
Information About IC693TCM302B
The IC693TCM302B is a high-performance GE Fanuc temperature control module designed for the Series 90-30 PLC platform, offering precise multi-zone thermal management for industrial applications. Supporting up to 8 independent zones, this module accepts thermocouple or RTD inputs and delivers relay-based control outputs for each zone. It operates in both automatic (PID closed-loop) and manual (open-loop) modes, providing flexibility for diverse process control scenarios. Built for reliability, the module features robust diagnostics, LED indicators, and integrated safety mechanisms. Though discontinued by the manufacturer, it remains well-supported through third-party suppliers and refurbishers.
Key Features:
- 8-Zone Temperature Control: Manages up to 8 channels independently, enabling detailed thermal control for ovens, kilns, and process equipment.
- Thermocouple & RTD Support: Compatible with a variety of sensor types, making it adaptable across different temperature sensing requirements.
- Dual Control Modes: Offers configurable manual and automatic PID control on a per-zone basis, ensuring flexibility in both legacy and modern systems.
- Precision & Accuracy: Delivers 12-bit resolution (~0.2 °C) and maintains ±1 °C accuracy per zone, ideal for fine-tuned temperature-sensitive processes.
- Relay Output Interface: Provides relay drive signals (18–30 VDC, 100 mA max) per channel, with PWM-based output control.
- Diagnostic LED Indicators: Includes 12 status LEDs for fault detection, thermocouple status, and output activity per channel.
- Built-In Protection: Equipped with a 2 A user-replaceable fuse and fault detection features for reverse polarity, open sensors, and output shorts.
- Compact, Lightweight Design: Weighs approximately 0.2 kg (0.44 lb) for easy installation into standard Series 90-30 racks.
- Software Compatibility: Configured using Logicmaster 90 for seamless integration with GE Fanuc automation systems.
The GE Fanuc IC693TCM302B continues to be a trusted temperature control solution in industrial automation, valued for its reliability, flexibility, and integration simplicity. Whether maintaining legacy equipment or building scalable thermal systems, it delivers dependable multi-zone performance across a wide range of process environments.
