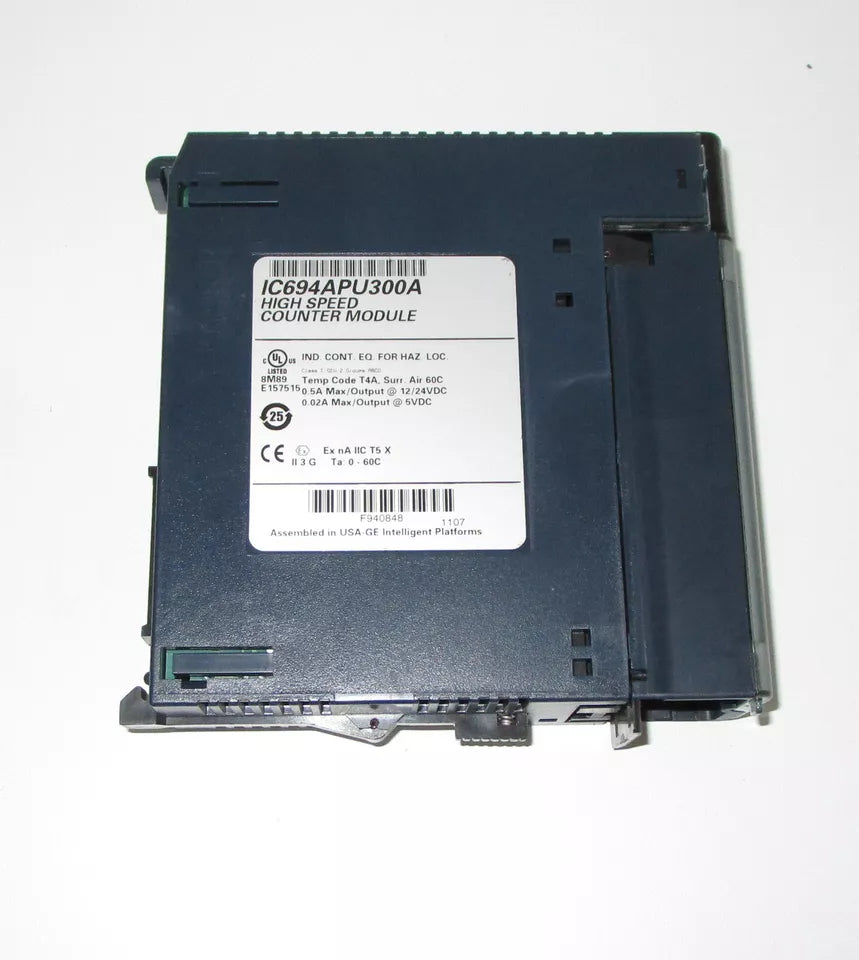

IC694APU300A | GE Fanuc High Speed Counter Module
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC694APU300A
Description
The GE Fanuc IC694APU300A High-Speed Counter Module is designed for precise counting and pulse processing in industrial automation systems. It operates at a base speed of 200 kHz, with an enhanced mode of up to 1 MHz and a 2 MHz internal oscillator for high-speed applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs and Accessories |
| Part Number | IC694APU300A |
| Subcategory | PLC Expansion Modules |
|
Processing Speed |
80 kHz |
|
Counting Speed |
200 kHz (Standard), 1 MHz (Enhanced Mode) |
|
Internal Oscillator |
2 MHz |
|
Input Types |
A, B, and C-type |
|
Input Voltage Range |
5V DC or 10-30V DC (TSEL open) |
|
Output Voltage Range |
10-30V DC 500mA or 4.75-6V DC 20mA |
|
I/O Type |
Positive Logic |
|
Power Consumption |
250mA from 5V bus |
|
Module Type |
High-Speed Counter |
|
Dimensions |
1.1 in x 5.1 in x 4.9 in (2.8 cm x 13.0 cm x 12.4 cm) |
Information About IC694APU300A
The IC694APU300A High-Speed Counter Module is an advanced motion control solution for GE Fanuc RX3i PLC systems. It features a processing speed of 80 kHz and is capable of handling high-frequency pulse inputs for precise position and speed measurement. The module supports both 5V DC and 10-30V DC input voltage ranges, providing flexibility in industrial environments. Its positive logic I/O configuration ensures reliable signal processing, while the 500mA output at 10-30VDC or 20mA at 4.75-6VDC ensures compatibility with different loads. With a power consumption of 250mA from the 5V bus, it efficiently integrates into control systems without excessive power demands.
Key Features:
- High-speed processing: 200 kHz standard, 1 MHz enhanced mode, 2 MHz internal oscillator for rapid counting.
- Multiple input types: Supports A, B, and C-type inputs for versatile operation.
- Processing speed: 80 kHz for efficient counting and pulse processing.
- Flexible input voltage range: 5V DC or 10-30V DC (TSEL open).
- Versatile output voltage: 10-30VDC 500mA or 4.75-6VDC 20mA.
- Positive logic I/O: Ensures reliable and precise signal control.
- Efficient power consumption: 250mA from the 5V bus, reducing system load.
With its high-speed operation, multiple input configurations, and flexible voltage support, the GE Fanuc IC694APU300A is ideal for industrial automation applications requiring precise counting, motion control, and pulse processing.
