Product Description P/N: IC694MDL645

Description / Specifications

Description

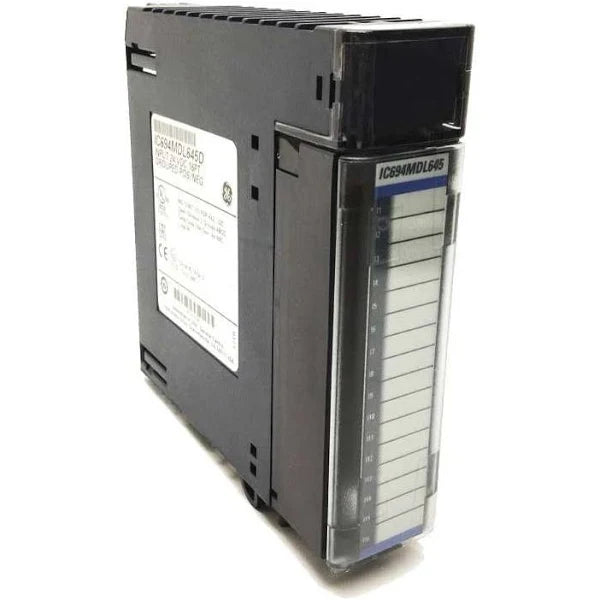

The IC694MDL645 is a 16-Point, 24 Volt DC, Positive/Negative Logic, Input module part of the GE Fanuc RX3i Series. It offers 16 input points in 1 group with a common power input terminal and features discrete input with no backplane restrictions. This module supports both positive and negative logic configurations and includes 16 LEDs to indicate the ON/OFF status of individual points.

Compatible with various input devices such as switches, buttons, and BCD thumbwheels, the IC694MDL645 serves as an interface between external devices and the PLC, facilitating seamless cooperation. Moreover, it can interface with external output modules like interposing relays, contactors, and indicator lamps.



Technical Specifications





Manufacturer

GE Fanuc

Series

RX3i PACSystems

Part Number

IC694MDL645

Product Type

Input Module

Number of Inputs

16

Module Type

Low-Voltage Module

Voltage Type

DC

Nominal Voltage

24 Volts DC

Operating Voltage

0 to 30 Volts DC

Operating Temperature

32 to 140 degrees Fahrenheit

Rated Voltage

24 Vdc

Input Voltage Range

0 to +30 Vdc

Inputs per Module

16 (one group with a single common)

Isolation: Field to Backplane (optical)

250 Vac continuous; 1500 Vac for one minute

Isolation: Field to frame ground

250 Vac continuous; 1500 Vac for one minute

Input Current

7 mA (typical) at rated voltage

On–state Voltage

11.5 to 30 Vdc

Off–state Voltage

0 to +5 Vdc

On–state Current

3.2 mA minimum

Off–state Current

1.1 mA maximum

On response Time

7 ms typical

Off response Time

7 ms typical

Power Consumption: 5Vdc

80 mA (all inputs on) from 5Vdc bus on backplane

Power Consumption: 24Vdc

125 mA from the Isolated 24Vdc backplane bus or from user supplied power





Information About IC694MDL645



The IC694MDL645 is a digital input module manufactured by GE Fanuc Emerson as part of the RX3i Series. It offers 16 input points in a single group with a common power input terminal, operating at 24 volts DC. This module supports both positive and negative logic configurations and features discrete input without any backplane restrictions. Each point's ON/OFF status is indicated by an LED.

Designed for compatibility with various input and field devices, the IC694MDL645 serves as an interface between these external devices and the PLC, facilitating their seamless integration and cooperation. It also enables communication between the PLC and external output modules, including relays, contactors, and indicator lamps.

GE Fanuc provides a diverse range of I/O modules, ensuring compatibility with different voltage ranges and types to suit diverse application needs. The IC694MDL645, denoted as a low-voltage module by its blue bands, is adaptable to any slot within the RX3i system. Users can insert or remove the module from the Universal backplane while the RX3i system is powered, although it's essential to remove the field side terminal block during this process.



Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
