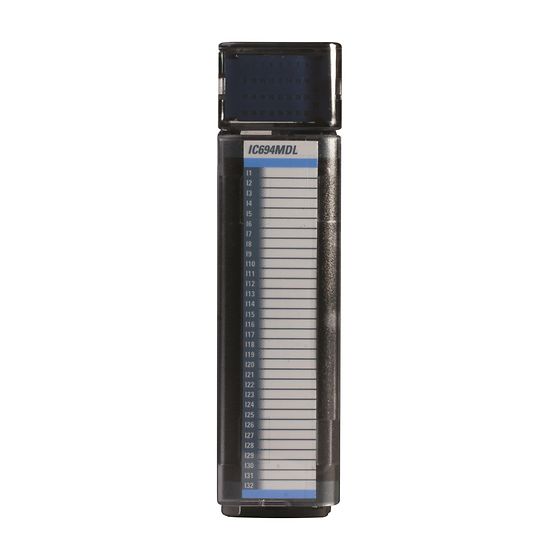

IC694MDL940 | Ge Fanuc AC/DC Voltage Output module, 2A, 16 point
IC694MDL940 | Ge Fanuc AC/DC Voltage Output module, 2A, 16 point
Part #: IC694MDL940 Manufactured by: Ge Fanuc

IC694MDL940 | Ge Fanuc AC/DC Voltage Output module, 2A, 16 point

Regular price
$402.00
Sale price
$402.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
The GE Fanuc IC694MDL940 Relay Output Module is made for the RX3i PacSystems series. This relay output module has 16 relay...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: IC694MDL940
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Ge Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
IC694MDL940 | Ge Fanuc AC/DC Voltage Output module, 2A, 16 point
    IC694MDL940 | Ge Fanuc AC/DC Voltage Output module, 2A, 16 point
IC694MDL940 | Ge Fanuc AC/DC Voltage Output module, 2A, 16 point
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: IC694MDL940

Description / Specifications

Description

The IC694MDL940 is a PACSystem RX3i Discrete output module formerly manufactured by GE Fanuc, now under Emerson Automation. This module features Sixteen (16) Normally Open (N.O.) contacts grouped into Four (4) with Four (4) outputs each group. Each contact output can be operated with 5-30 VDC with nominal voltages of 24 VDC; 5 - 250VAC at frequency of 47 to 63 Hz, with nominal input voltages of 120/240VAC. Each channel is designed for maximum loads of 2 Amps pilot duty, maximum per output and 4 Amps maximum per common. This module has current draw of 7 mA with all outputs on from 5 volt bus on backplane and 135 mA with all outputs on from relay 24V bus on backplane.


Technical Specifications


Brand GE FANUC
Part Number IC694MDL940
Series PACSystem RX3i
Product Description Relay output module
No. of channels 8
Operating Voltage 5.0 to 30 Volts DC or 5.0 to 250 Volts AC
No. of groups 4
Switching current 2.0 Amps
No. of channels per group 4
I/O Capacity 16 Individually isolated Normally Open (N.O) Outputs
Contact form Normally Open (N.O.) Form A contacts
Point to Point Isolation Yes
Output voltage, range 5 - 30 VDC; 5 - 250VAC (50/60 Hz);
Max. Backplane Draw 135 Milliamps
Rated voltage 24 VDC; 120/240 VAC
Inrush Rating 5.0 Amps
Maximum load 2 Amps pilot duty per output; 4 Amps maximum per common
Max. Response Time 15 Milliseconds
Minimum load 10 mA
Location PacSystems PLC I/O Slots
LED Indicators 32 Individually-Numbered LEDs
Current draw 7 mA (all outputs on) from 5 volt bus on backplane; 135 mA (all outputs on) from relay 24V bus on backplane
Number of Groups 4 Groups of 4 Outputs Each
Isolation, Field to Backplane (optical) and to Frame Ground 250 VAC continuous; 1500 VAC for 1 minute
Relay Contact Life 100,000 - 1,000,000 operations, depending on voltage and load type
Response time 15 ms




Information About IC694MDL940

The IC694MDL940 is a Sixteen (16) point Relay output module from the PACSystem RX3i series of Emerson Automation, formerly manufactured by GE Intelligent Platforms (GE IP). This module has a single-slot width, occupying a single slot of the backplane and comes with Four (4) groups of outputs with each group having Four (4) relay outputs each.

The IC694MDL940 relay contacts are Normally Open (N.O.) contacts or Form A contacts. Each output contact is rated for a maximum load of 2 Amperes pilot duty, maximum per output while each output group is designed to deliver maximum output current of 4 Amperes. Additionally, the module’s minimum load is 10 mA and maximum inrush current of 5 Amperes. Each relay output channel has response time of 15 ms, maximum for both signal transitions and the module’s power consumption is 7 mA @ 5VDC bus voltage and 135 mA from relay 24V bus on backplane. These power consumption ratings are based with all output channels energized.

The IC694MDL940 comes with Sixteen (16) status LED indicators, each representing the individual channels. An energized LED represents an energized output while a de-energized LED represents otherwise. This module does not come with an internally installed fuse for channel protection therefore, users may want to install external fuses to protect the module.

The IC694MDL940 comes with 250 VAC continuous and 1500 VAC for 1 minute isolation rating, from field to backplane and frame to ground while the channel to channel isolation is 250 VAC continuous; 1500 VAC for 1 minute.

The GE Fanuc IC694MDL940 Relay Output Module is a 16-channel relay output module that is designed for the RX3i PACSystems PLC system. The IC694MDL940 Output Module provides 16 individually isolated normally-open output circuits for controlling output devices such as motor starters, solenoids, and indicators. Each IC694MDL940 Output Module output point has a maximum switching capacity of 2 Amps, and they are grouped into 4 non-isolated groups of 4 output channels each. Each of the IC694MDL940 Output Module’s output group has a common output terminal (4 output terminals total per module), and the power for each internal relay output point is drawn from the 24 Volts DC backplane power. An external AC/DC power source must be ordered separately and installed to power the connected output field devices.

The IC694MDL940 Output Module has a nominal operating rating of 24 Volts DC or 120/240 Volts AC and an operating range of 5 to 30 Volts DC or 5 to 250 Volts AC at 50/60 Hertz. The IC694MDL940 Output Module has 1500 Volts AC of maximum point to point isolation for 1 minute and 250 Volts AC of continuous isolation between the field and backplane and to the frame ground. The minimum possible load on each of the IC694MDL940 Output Module s output circuits is 10 milliamps and the maximum load on each output point is 2.0 Amps, while it is 4.0 Amps per group common. The IC694MDL940 Output Module draws up to 7.0 milliamps of backplane current at 5.0 Volts DC and 135 milliamps at 24 Volts DC relay bus voltage on the backplane. There are 32 LEDs on the front panel of the module that indicates the on or off status of each individual output channel. The IC694MDL940 Output Module is compatible only with the RX3i PacSystems CPUs and it can be installed in any I/O slot in the RX3i PacSystems PLC backplanes.




Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The IC694MDL940 is a PACSystem RX3i Discrete output module formerly manufactured by GE Fanuc, now under Emerson Automation. This module features Sixteen (16) Normally Open (N.O.) contacts grouped into Four (4) with Four (4) outputs each group. Each contact output can be operated with 5-30 VDC with nominal voltages of 24 VDC; 5 - 250VAC at frequency of 47 to 63 Hz, with nominal input voltages of 120/240VAC. Each channel is designed for maximum loads of 2 Amps pilot duty, maximum per output and 4 Amps maximum per common. This module has current draw of 7 mA with all outputs on from 5 volt bus on backplane and 135 mA with all outputs on from relay 24V bus on backplane.


Technical Specifications


Brand GE FANUC
Part Number IC694MDL940
Series PACSystem RX3i
Product Description Relay output module
No. of channels 8
Operating Voltage 5.0 to 30 Volts DC or 5.0 to 250 Volts AC
No. of groups 4
Switching current 2.0 Amps
No. of channels per group 4
I/O Capacity 16 Individually isolated Normally Open (N.O) Outputs
Contact form Normally Open (N.O.) Form A contacts
Point to Point Isolation Yes
Output voltage, range 5 - 30 VDC; 5 - 250VAC (50/60 Hz);
Max. Backplane Draw 135 Milliamps
Rated voltage 24 VDC; 120/240 VAC
Inrush Rating 5.0 Amps
Maximum load 2 Amps pilot duty per output; 4 Amps maximum per common
Max. Response Time 15 Milliseconds
Minimum load 10 mA
Location PacSystems PLC I/O Slots
LED Indicators 32 Individually-Numbered LEDs
Current draw 7 mA (all outputs on) from 5 volt bus on backplane; 135 mA (all outputs on) from relay 24V bus on backplane
Number of Groups 4 Groups of 4 Outputs Each
Isolation, Field to Backplane (optical) and to Frame Ground 250 VAC continuous; 1500 VAC for 1 minute
Relay Contact Life 100,000 - 1,000,000 operations, depending on voltage and load type
Response time 15 ms




Information About IC694MDL940

The IC694MDL940 is a Sixteen (16) point Relay output module from the PACSystem RX3i series of Emerson Automation, formerly manufactured by GE Intelligent Platforms (GE IP). This module has a single-slot width, occupying a single slot of the backplane and comes with Four (4) groups of outputs with each group having Four (4) relay outputs each.

The IC694MDL940 relay contacts are Normally Open (N.O.) contacts or Form A contacts. Each output contact is rated for a maximum load of 2 Amperes pilot duty, maximum per output while each output group is designed to deliver maximum output current of 4 Amperes. Additionally, the module’s minimum load is 10 mA and maximum inrush current of 5 Amperes. Each relay output channel has response time of 15 ms, maximum for both signal transitions and the module’s power consumption is 7 mA @ 5VDC bus voltage and 135 mA from relay 24V bus on backplane. These power consumption ratings are based with all output channels energized.

The IC694MDL940 comes with Sixteen (16) status LED indicators, each representing the individual channels. An energized LED represents an energized output while a de-energized LED represents otherwise. This module does not come with an internally installed fuse for channel protection therefore, users may want to install external fuses to protect the module.

The IC694MDL940 comes with 250 VAC continuous and 1500 VAC for 1 minute isolation rating, from field to backplane and frame to ground while the channel to channel isolation is 250 VAC continuous; 1500 VAC for 1 minute.

The GE Fanuc IC694MDL940 Relay Output Module is a 16-channel relay output module that is designed for the RX3i PACSystems PLC system. The IC694MDL940 Output Module provides 16 individually isolated normally-open output circuits for controlling output devices such as motor starters, solenoids, and indicators. Each IC694MDL940 Output Module output point has a maximum switching capacity of 2 Amps, and they are grouped into 4 non-isolated groups of 4 output channels each. Each of the IC694MDL940 Output Module’s output group has a common output terminal (4 output terminals total per module), and the power for each internal relay output point is drawn from the 24 Volts DC backplane power. An external AC/DC power source must be ordered separately and installed to power the connected output field devices.

The IC694MDL940 Output Module has a nominal operating rating of 24 Volts DC or 120/240 Volts AC and an operating range of 5 to 30 Volts DC or 5 to 250 Volts AC at 50/60 Hertz. The IC694MDL940 Output Module has 1500 Volts AC of maximum point to point isolation for 1 minute and 250 Volts AC of continuous isolation between the field and backplane and to the frame ground. The minimum possible load on each of the IC694MDL940 Output Module s output circuits is 10 milliamps and the maximum load on each output point is 2.0 Amps, while it is 4.0 Amps per group common. The IC694MDL940 Output Module draws up to 7.0 milliamps of backplane current at 5.0 Volts DC and 135 milliamps at 24 Volts DC relay bus voltage on the backplane. There are 32 LEDs on the front panel of the module that indicates the on or off status of each individual output channel. The IC694MDL940 Output Module is compatible only with the RX3i PacSystems CPUs and it can be installed in any I/O slot in the RX3i PacSystems PLC backplanes.




Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
