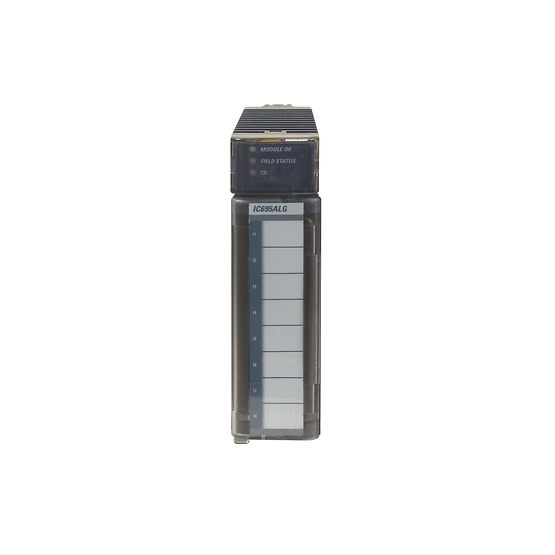

IC695ALG600 | GE Fanuc | Analog Input module
- Regular price
- $1,342.00
- Sale price
- $1,342.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC695ALG600
Description
The IC695ALG600 is an 8-channel analog input module designed for the GE Fanuc RX3i Series. It supports a variety of input types including thermocouple, resistance, current/voltage, and RTD (Resistance Temperature Detector). Featuring 8 general-purpose input channels along with 2 Cold Junction Compensation (CJC) channels, the IC695ALG600 is versatile and suitable for diverse industrial applications. This module requires placement within an RX3i Universal Backplane for operation.
Technical Specifications
|
Manufacturer |
GE Fanuc |
|
Series |
Versamax |
|
Part Number |
IC695ALG600 |
|
Product Type |
Thermocouple Input Module |
|
Number of Channels |
8 |
|
Input Resolution |
11 to 16 bits |
|
Power Dissipation |
5.4 Watts |
|
Backplane Power Requirement |
400 mA at 5V, 350 mA at 3.3V |
|
RTD Cable Impedance |
25 Ohms |
|
RTD Wire Length |
1000 feet |
|
Additional Features |
- 2 isolated groups: 4 channels per group <br> - 2 CJC channels <br> - Cold Junction Compensation |
Information About IC695ALG600
The IC695ALG600 is a versatile analog input module designed for the GE Fanuc RX3i Series. It features 8 channels supporting various input types including thermocouple, resistance, current/voltage, RTD, and universal analog inputs. Additionally, the module incorporates 2 Cold Junction Compensation (CJC) channels to ensure accurate temperature measurements.
As part of the RX3i Series, the IC695ALG600 is specifically engineered to operate within an RX3i Universal Backplane. Its design and functionality are optimized for seamless integration within the RX3i system architecture.
Key features of the IC695ALG600 include its ability to handle 8 general-purpose input channels, making it suitable for diverse industrial applications requiring analog input monitoring and control. The module's versatility allows it to accommodate various sensor types and input signals, enhancing its utility across different industrial settings.
For precise temperature measurement and compensation, the IC695ALG600 incorporates dedicated Cold Junction Compensation channels, ensuring accurate readings even in demanding environmental conditions.
It's essential to refer to the specifications provided on the IC695ALG600's website page for detailed technical information and operational guidelines. These specifications offer insights into the module's performance characteristics, input/output configurations, operating parameters, and compatibility requirements.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
