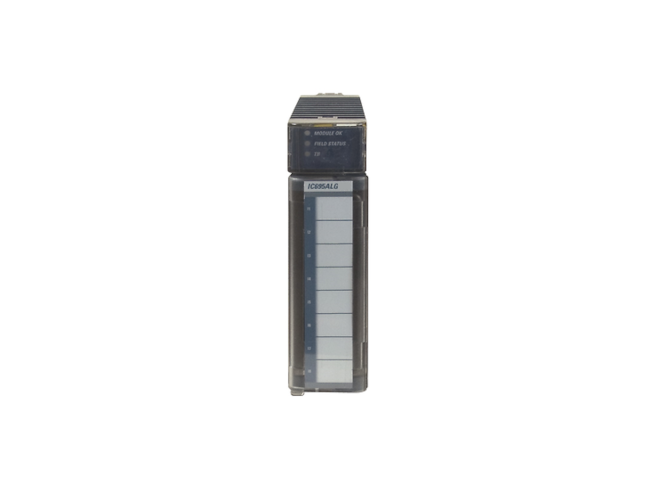

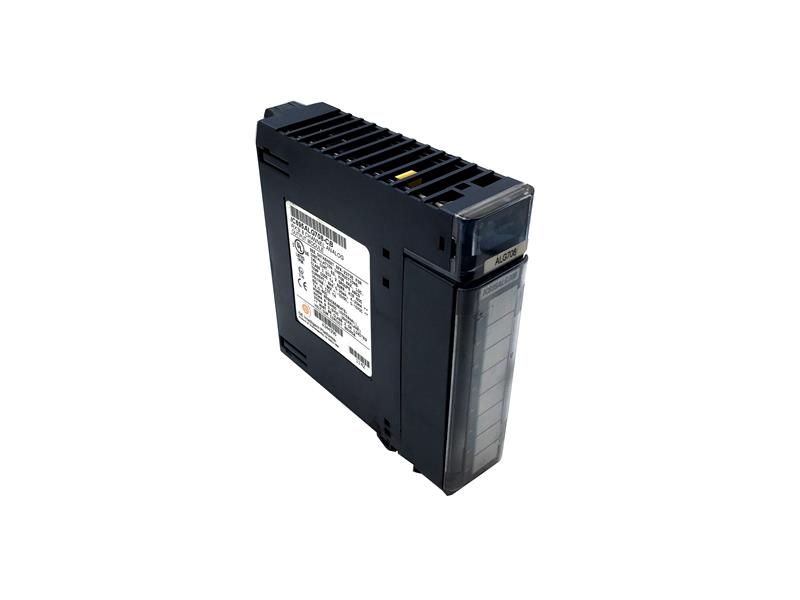

IC695ALG708 | Ge Fanuc Analog Output Module

The IC695ALG708 is a versatile PLC module designed for integration within PLCs/Machine Control systems. This module is categorized as an 8 CHANNEL interface, enabling it to handle multiple input signals simultaneously, which is essential for complex automation and control applications. The IC695ALG708 is particularly notable for its configurability, allowing users to select between voltage and current input types based on specific operational requirements.

In terms of current configuration, the module supports two primary ranges: 0 to 20 mA and 4 to 20 mA. This dual-range capability provides flexibility for interfacing with various sensors and devices that utilize these standard current signals for transmitting process variables. This is particularly useful in industrial applications where accurate measurement and control of physical parameters are critical.

For voltage input, the IC695ALG708 can be configured for +/- 10 VDC and 0 to 10 VDC ranges. This feature enables the module to accommodate a wide array of voltage signals, making it suitable for applications that require precise voltage measurements, such as monitoring the output of transducers or other voltage-based sensors. The capability to configure both current and voltage inputs ensures that the module can adapt to the needs of diverse applications, enhancing its usability in different scenarios.

The IC695ALG708 is designed with non-isolated channels, meaning that all input channels share a common ground. This design choice simplifies wiring and reduces overall system complexity, making installation easier. However, users should be aware of the implications of non-isolation, particularly regarding noise and potential interference in environments with high electromagnetic interference (EMI).

Integration of the IC695ALG708 into existing control systems is straightforward, as it adheres to standard PLC communication protocols, ensuring compatibility with a variety of automation architectures. Its design is optimized for reliable performance in industrial environments, supporting extended operational lifetimes and minimizing maintenance requirements.
