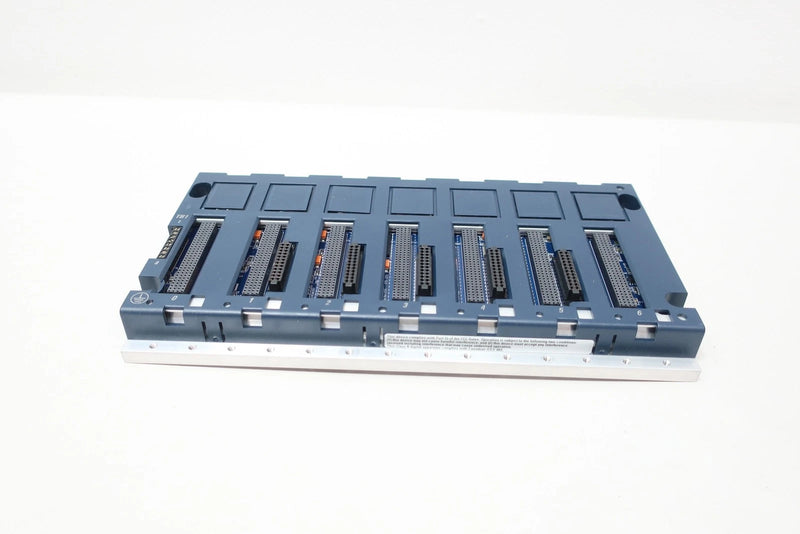

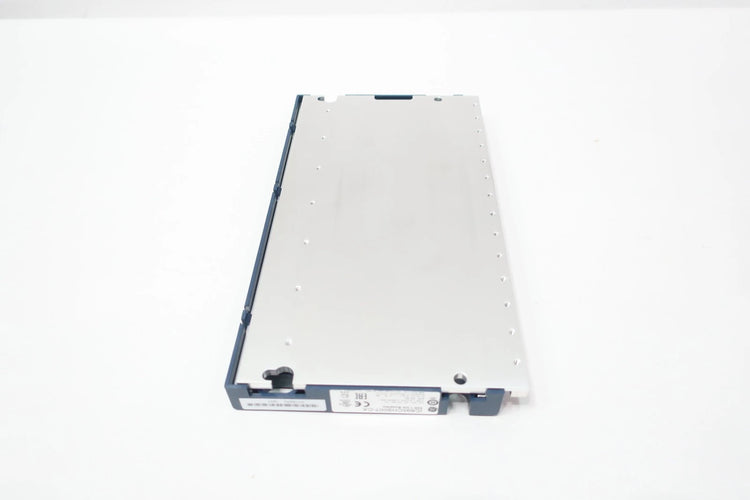

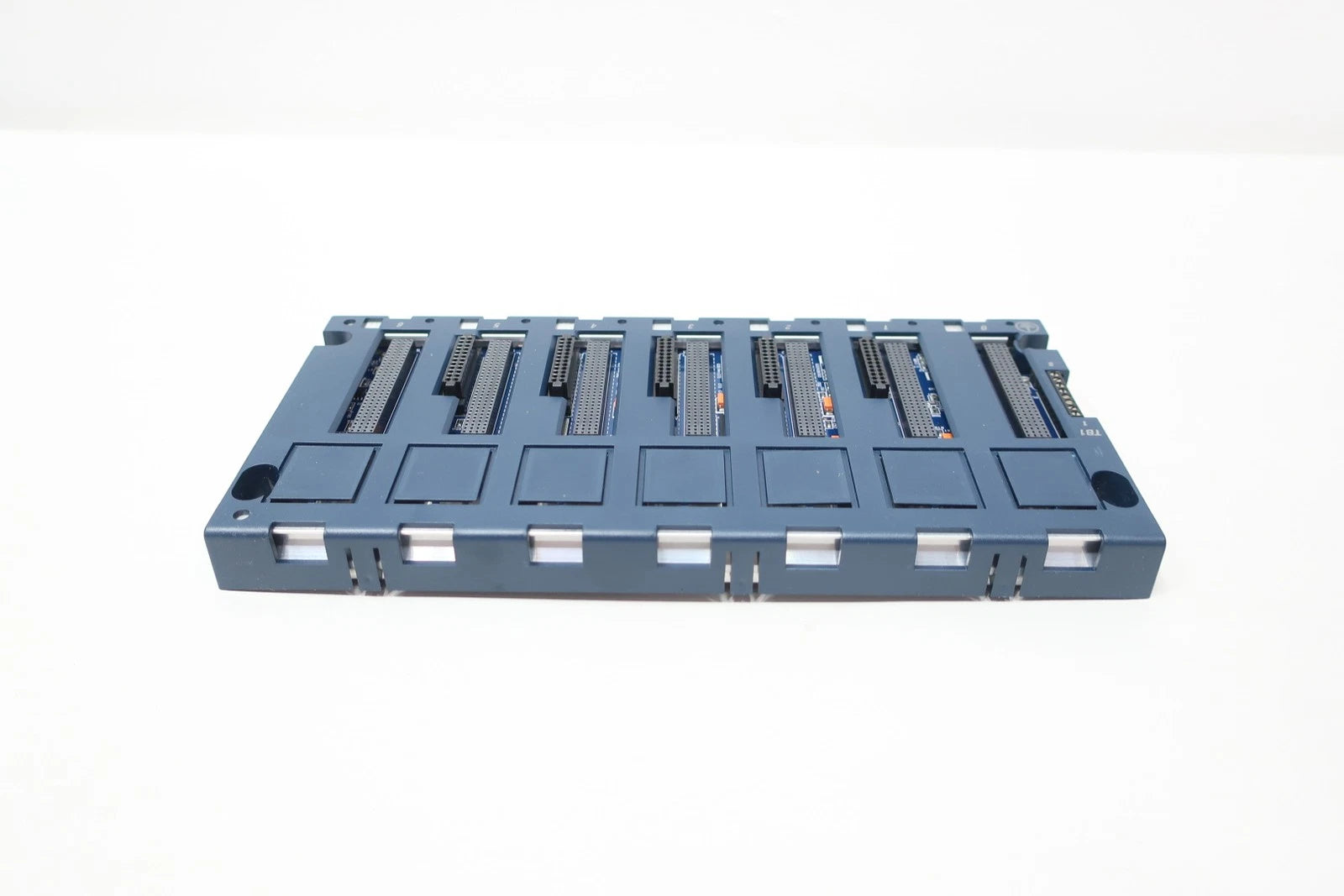

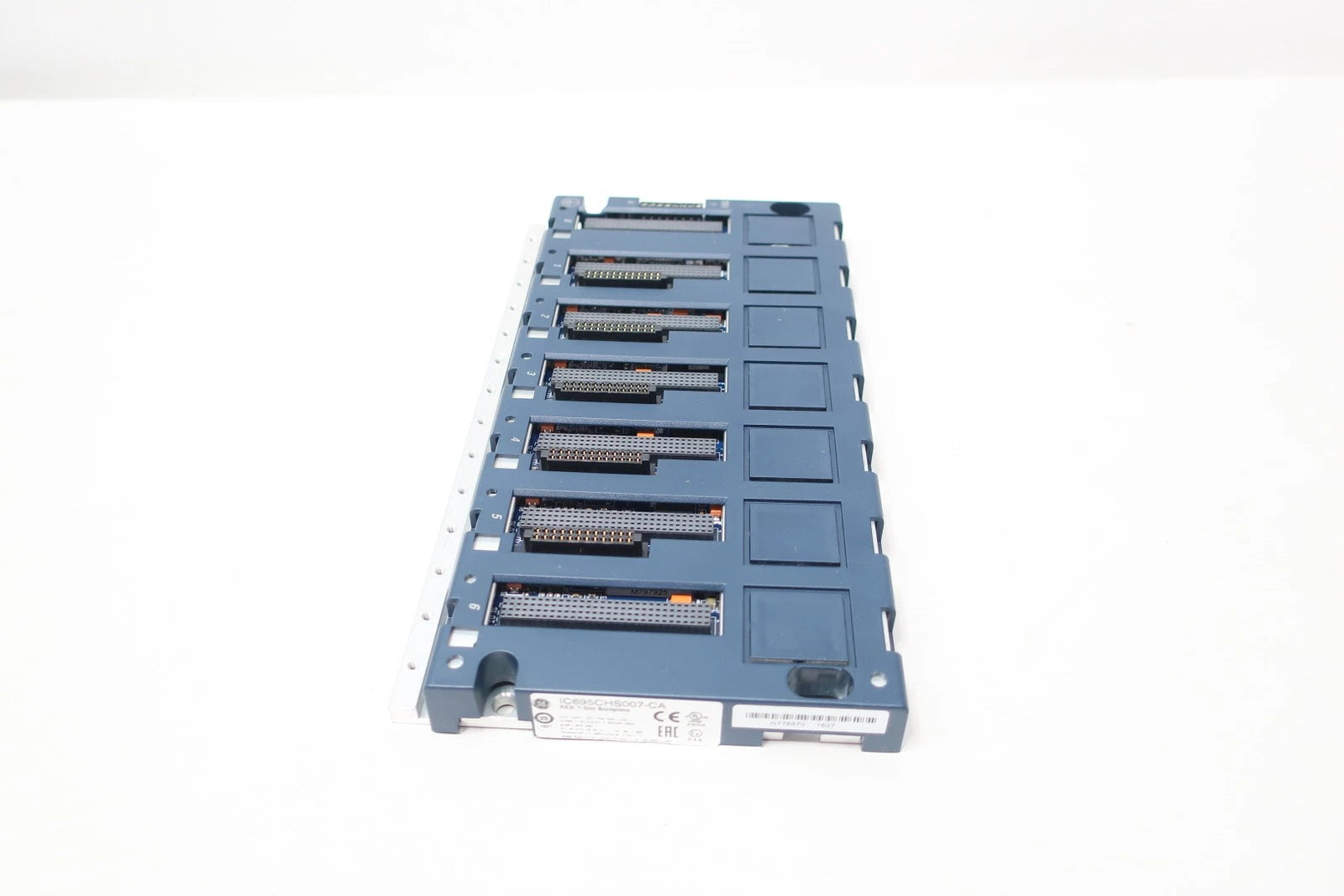

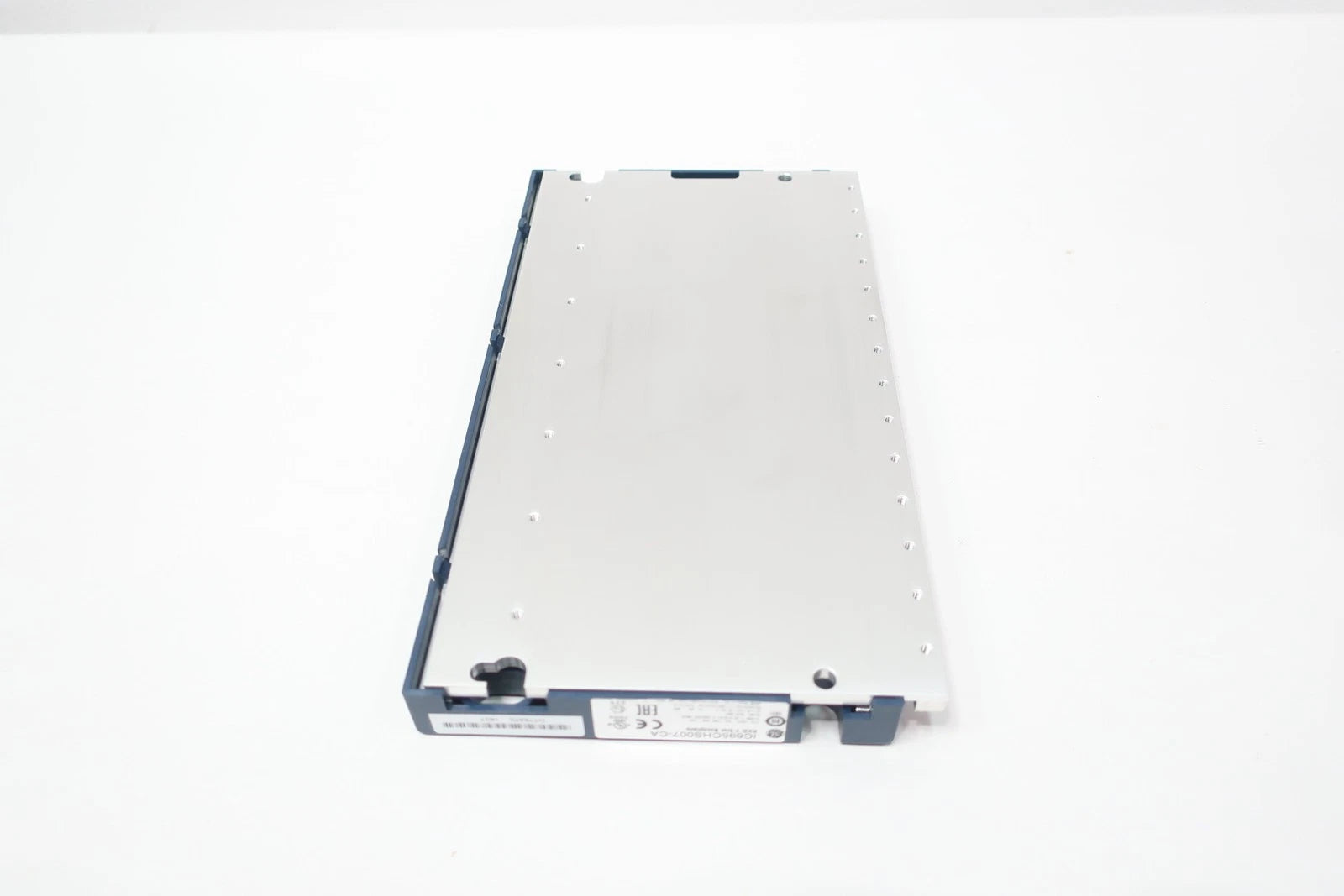

IC695CHS007-CA | Fanuc RX3i 7-Slot Universal PLC Backplane
- Regular price
- $1,367.00
- Sale price
- $1,367.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IC695CHS007-CA
Description
The Fanuc IC695CHS007-CA is a 7-slot universal backplane designed for RX3i PLC controller and I/O systems. It provides a stable mechanical and electrical platform for mounting CPUs, power supplies, and I/O modules. This backplane supports high-speed data communication required for industrial automation control architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | PLC & HMI |
| Part Number | IC695CHS007-CA |
| Subcategory | PLC Module/Rack |
| Series | RX3i |
| Module Type | Universal controller and I/O backplane |
| Number of Slots | 7 |
| Backplane Bus Support | PCI and high-speed serial |
| Compatible Modules | RX3i CPU, I/O, and communication modules |
| Internal Power Consumption (5 VDC) | 240 mA |
| Internal Power Consumption (3.3 VDC) | 600 mA |
| Mounting Type | Panel-mounted |
| Dimensions (H × W × D) | 5.57 × 10.43 × 5.80 in |
| Operating Environment | Industrial control cabinets |
| Weight | 2.00 lbs |
Information About IC695CHS007-CA
The IC695CHS007-CA is part of the Fanuc RX3i Series, engineered to support scalable PLC system configurations. It features a universal backplane design that accommodates controller, communication, and I/O modules within a single rack. Supporting both PCI and high-speed serial backplane buses, it enables efficient data transfer between installed modules. The rugged construction and standardized slot layout make it suitable for control panels used in continuous industrial operation.
Key Features:
- RX3i Series Backplane: Designed specifically for Fanuc RX3i PLC platforms.
- Seven-Slot Configuration: Supports installation of CPUs, I/O, and communication modules.
- Universal Module Support: Accepts controller and I/O modules in a unified rack design.
- PCI Backplane Bus: Enables reliable high-speed communication between installed modules.
- High-Speed Serial Support: Facilitates fast internal data exchange for advanced PLC tasks.
- Panel-Mount Form Factor: Designed for secure installation inside control cabinets.
- Efficient Power Distribution: Supplies regulated backplane power to all installed modules.
The IC695CHS007-CA delivers the reliability and precision required for modular PLC system backplane infrastructure in industrial automation environments.
