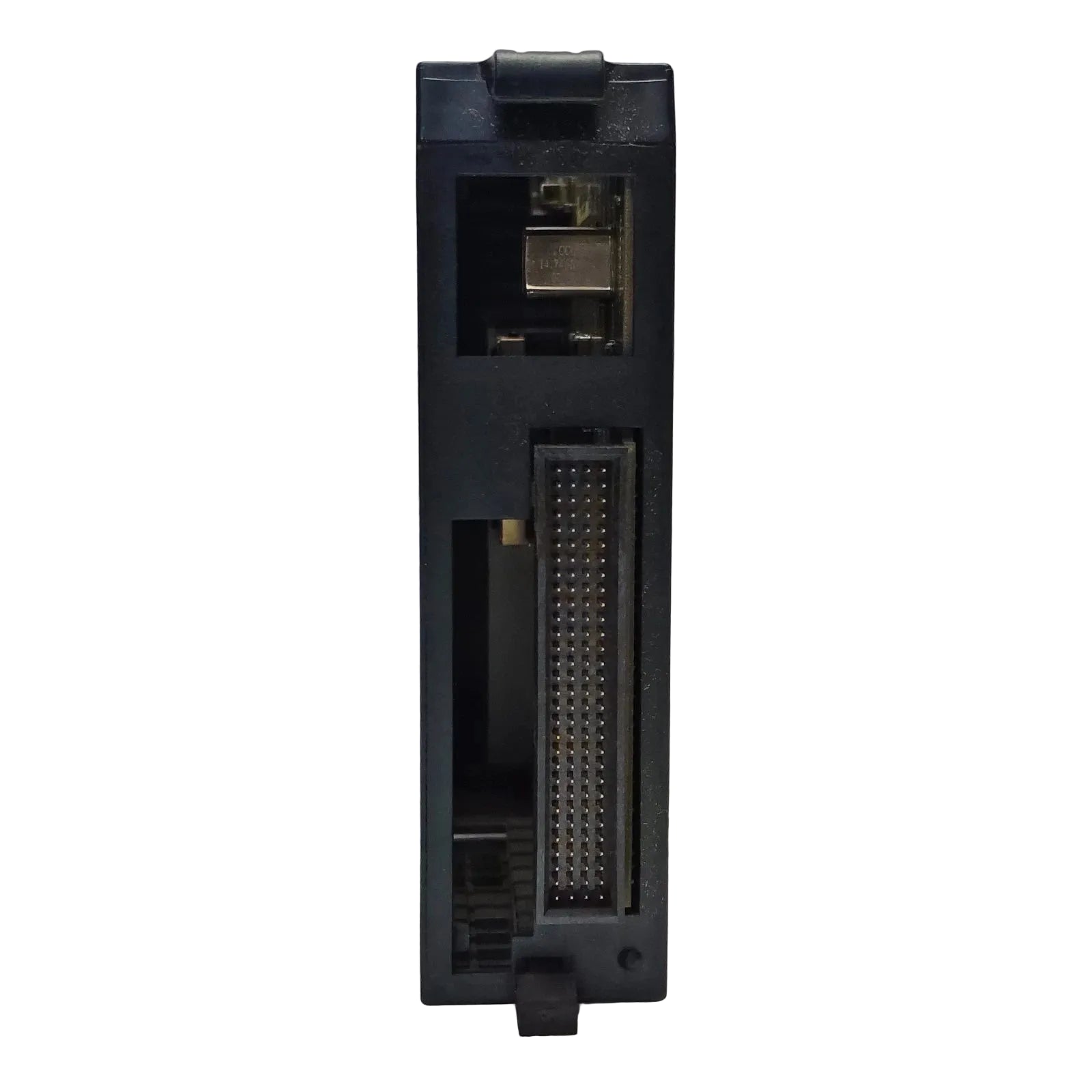

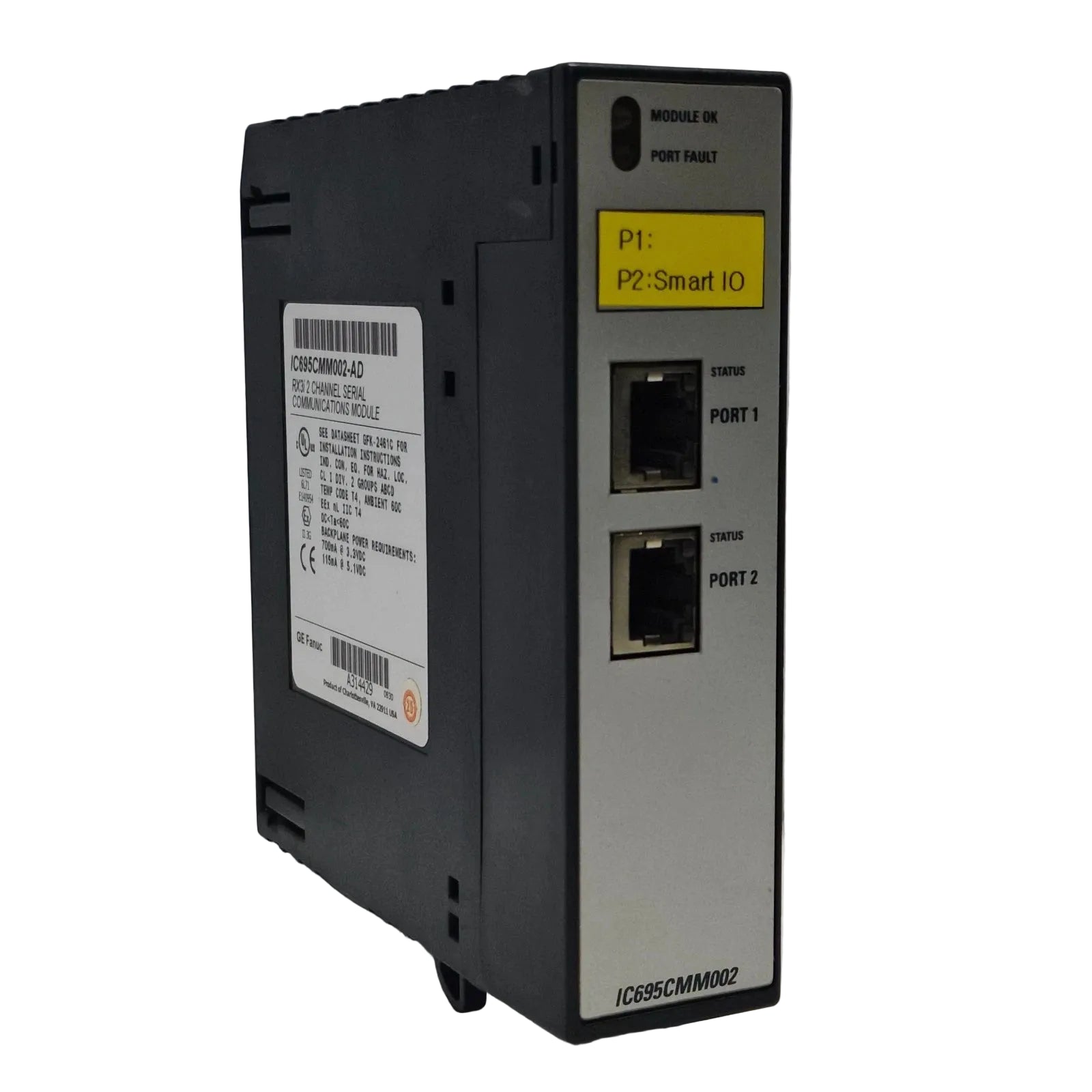

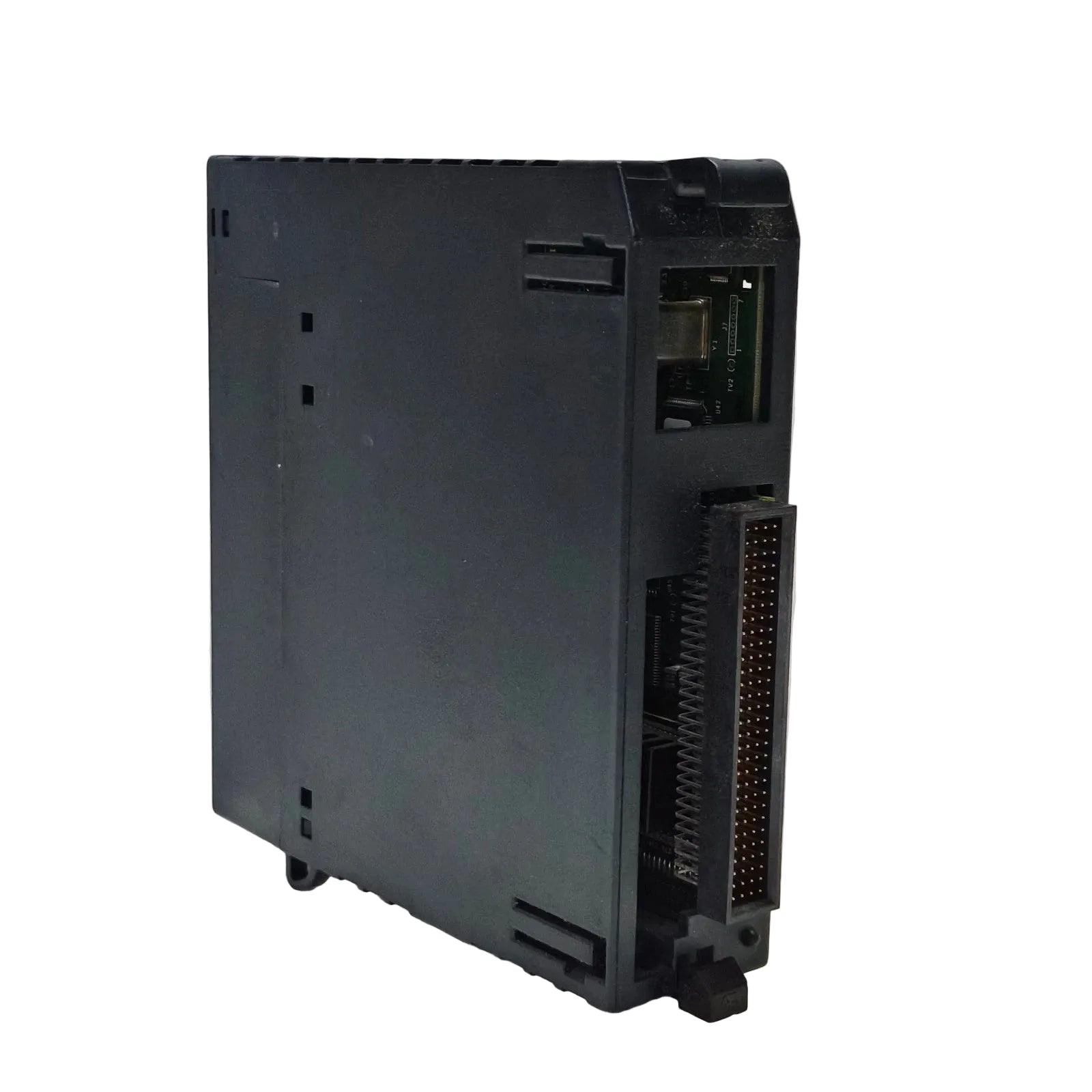

IC695CMM002 | Fanuc RX3i Serial Communications Module with Dual Isolated Ports
- Regular price
- $889.00
- Sale price
- $889.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IC695CMM002
Description
The Fanuc IC695CMM002 communications module is a serial interface solution designed for PACSystem RX3i PLC platforms. It provides reliable multi-protocol serial communication for industrial control systems using isolated RS-232 and RS-485/422 connections. This module supports both master and slave operation for seamless integration with automation networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | PLC & Automation |
| Part Number | IC695CMM002 |
| Subcategory | Communication Modules |
| Product Line | PACSystem RX3i |
| Series | PACSystem RX3i |
| Module Type | Serial Communications Module |
| Number of Slots | 1 (Single Slot) |
| Backplane Support | Universal RX3i Backplane |
| Communication Ports | 2 |
| Serial Protocols | RS-232, RS-485/422 |
| Supported Protocols | Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, Serial I/O |
| Interface | RJ-45 |
| Selectable Baud Rates | 1200 to 115.2 kbps |
| Parity Options | Even, Odd, None |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Operating Temperature | 0 to 60 °C |
| Status Indicators | Module OK, Port Fault, Port Status LEDs |
| Power Requirements | 0.7 A @ 3.3 VDC, 0.115 A @ 5 VDC |
| Isolation Rating | Up to 1500 VAC port-to-backplane |
| Weight | 0.75 lbs (0.34 kg) |
Information About IC695CMM002
The IC695CMM002 is a serial communications module from the PACSystem RX3i series, originally manufactured by GE Fanuc Emerson for industrial automation applications. It is built for installation in a single slot on a universal RX3i backplane and supports up to six modules per rack. The module incorporates dual isolated serial ports with configurable electrical standards to accommodate diverse field devices. Its protocol flexibility enables integration with Modbus, DNP3, CCM, and custom serial communication environments.
Key Features:
- Dual Isolated Serial Ports: Provides two independently configurable RS-232 or RS-485/422 communication channels.
- Multi-Protocol Support: Supports Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, and Serial I/O protocols.
- RX3i Platform Compatibility: Designed for seamless integration with PACSystem RX3i PLC architectures.
- Universal Backplane Support: Installs into any RX3i universal backplane without special configuration.
- Configurable Baud Rates: Supports selectable speeds from 1200 to 115.2 kbps for flexible device communication.
- Electrical Isolation Protection: Provides port-to-backplane and port-to-port isolation for enhanced system reliability.

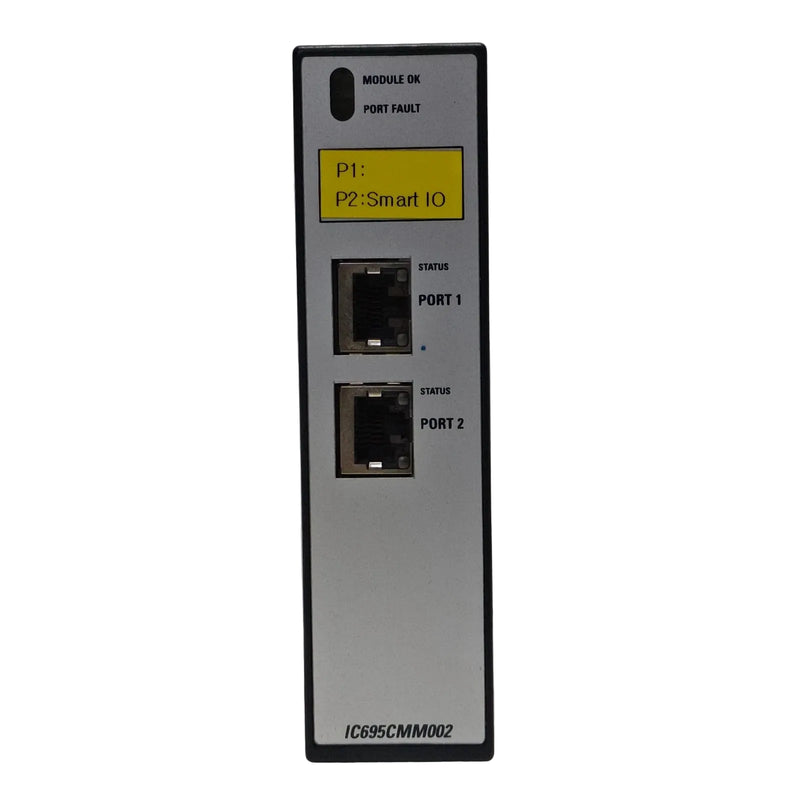

- Diagnostic LED Indicators: Includes module and port status LEDs for simplified troubleshooting.
The IC695CMM002 delivers the reliability and precision required for industrial serial communications and PLC network integration.
