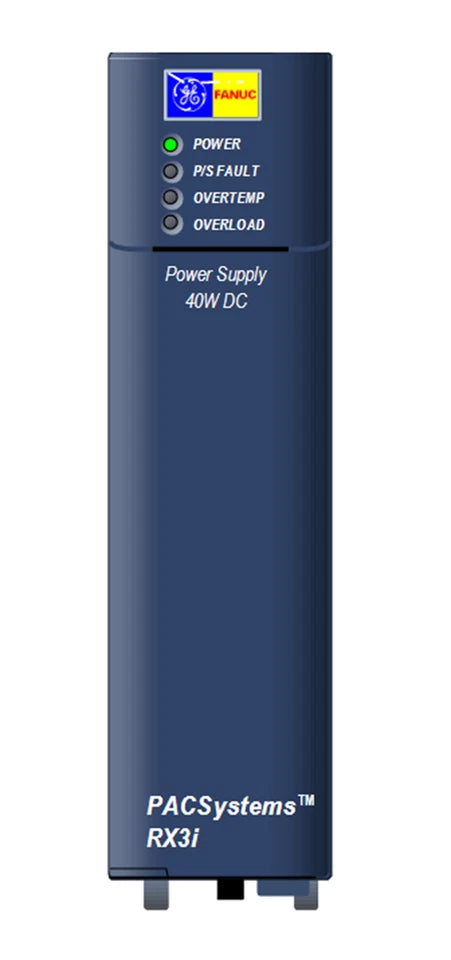

IC695PSD040 | GE Fanuc PACSystems RX3i 24VDC 40W Power Supply Module
- Regular price
- $1,014.00
- Sale price
- $1,014.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC695PSD040
Description
The GE Fanuc IC695PSD040 is a 40W DC power supply module from the PACSystems RX3i Series. It delivers regulated 5.1 VDC and 3.3 VDC outputs from a 24 VDC nominal input, ensuring stable power for RX3i PLC modules in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC695PSD040 |
| Subcategory | PLC Module/Rack |
| Series | PACSystems RX3i |
| Type | Universal Base Power Supply |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | Start: 18–30 VDC; Run: 12–30 VDC |
| Input Power | 60 W maximum |
| Output Power | 40 W maximum combined |
| Output Voltages | 5.1 VDC (5.0–5.25 V), 3.3 VDC (3.2–3.465 V) |
| Output Current | 5.1 VDC: 0–6 A; 3.3 VDC: 0–9 A |
| Ripple/Noise | 50 mV |
| Inrush Current | 4 A, 100 ms maximum |
| Ride-Through Time | 10 ms |
| Isolation | None |
| LED Indicators | Power, P/S Fault, Overtemperature, Overload |
| On/Off Switch | Yes (protected) |
| Wiring Terminals | 14–18 AWG, up to 6 A |
| Daisy-Chaining | Supports up to 2 supplies |
| Slot Assignment | Slot 0 (RX3i universal backplane) |
| Operating Environment | Pollution Degree 2 |
| Power Supply Redundancy | Not supported |
| Weight | 0.75 lbs |
Information About IC695PSD040
The IC695PSD040 is part of the PACSystems RX3i line, designed as a universal base power supply for RX3i backplanes. It accepts a nominal 24 VDC input, with an operating range of 18–30 VDC (start mode) and 12–30 VDC (run mode), providing up to 40W of total output power. The module distributes regulated 5.1 VDC and 3.3 VDC outputs, supporting up to 6 A and 9 A respectively, with ripple and noise limited to 50 mV. It features LED indicators for power, fault, overtemperature, and overload conditions, as well as an on/off switch with a protective cover. With support for daisy-chaining up to two units, this supply provides dependable power for modular PLC systems.
Key Features:
- Nominal Input Voltage: 24 VDC with 18–30 VDC operating range.
- Dual Outputs: Provides 5.1 VDC (0–6 A) and 3.3 VDC (0–9 A).
- Output Power: Maximum 40 W combined across outputs.
- Inrush Current: 4 A for 100 ms maximum.
- Ride-Through Capability: Maintains valid outputs for up to 10 ms during interruptions.
- LED Indicators: Monitors power, faults, temperature, and overload.
- On/Off Switch: Accessible behind a protective cover for safety.
- Installation: Fits into RX3i universal backplane, Slot 0 position.
- Wiring Terminals: Accepts 14–18 AWG wire, rated for 6 A current.
- Daisy-Chaining: Supports up to two IC695PSD040 supplies.
The IC695PSD040 delivers the stable power and protection features required for RX3i-based PLC automation systems.
Description
The GE Fanuc IC695PSD040 is a 40W DC power supply module from the PACSystems RX3i Series. It delivers regulated 5.1 VDC and 3.3 VDC outputs from a 24 VDC nominal input, ensuring stable power for RX3i PLC modules in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC695PSD040 |
| Subcategory | PLC Module/Rack |
| Series | PACSystems RX3i |
| Type | Universal Base Power Supply |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | Start: 18–30 VDC; Run: 12–30 VDC |
| Input Power | 60 W maximum |
| Output Power | 40 W maximum combined |
| Output Voltages | 5.1 VDC (5.0–5.25 V), 3.3 VDC (3.2–3.465 V) |
| Output Current | 5.1 VDC: 0–6 A; 3.3 VDC: 0–9 A |
| Ripple/Noise | 50 mV |
| Inrush Current | 4 A, 100 ms maximum |
| Ride-Through Time | 10 ms |
| Isolation | None |
| LED Indicators | Power, P/S Fault, Overtemperature, Overload |
| On/Off Switch | Yes (protected) |
| Wiring Terminals | 14–18 AWG, up to 6 A |
| Daisy-Chaining | Supports up to 2 supplies |
| Slot Assignment | Slot 0 (RX3i universal backplane) |
| Operating Environment | Pollution Degree 2 |
| Power Supply Redundancy | Not supported |
| Weight | 0.75 lbs |
Information About IC695PSD040
The IC695PSD040 is part of the PACSystems RX3i line, designed as a universal base power supply for RX3i backplanes. It accepts a nominal 24 VDC input, with an operating range of 18–30 VDC (start mode) and 12–30 VDC (run mode), providing up to 40W of total output power. The module distributes regulated 5.1 VDC and 3.3 VDC outputs, supporting up to 6 A and 9 A respectively, with ripple and noise limited to 50 mV. It features LED indicators for power, fault, overtemperature, and overload conditions, as well as an on/off switch with a protective cover. With support for daisy-chaining up to two units, this supply provides dependable power for modular PLC systems.
Key Features:
- Nominal Input Voltage: 24 VDC with 18–30 VDC operating range.
- Dual Outputs: Provides 5.1 VDC (0–6 A) and 3.3 VDC (0–9 A).
- Output Power: Maximum 40 W combined across outputs.
- Inrush Current: 4 A for 100 ms maximum.
- Ride-Through Capability: Maintains valid outputs for up to 10 ms during interruptions.
- LED Indicators: Monitors power, faults, temperature, and overload.
- On/Off Switch: Accessible behind a protective cover for safety.
- Installation: Fits into RX3i universal backplane, Slot 0 position.
- Wiring Terminals: Accepts 14–18 AWG wire, rated for 6 A current.
- Daisy-Chaining: Supports up to two IC695PSD040 supplies.
The IC695PSD040 delivers the stable power and protection features required for RX3i-based PLC automation systems.
