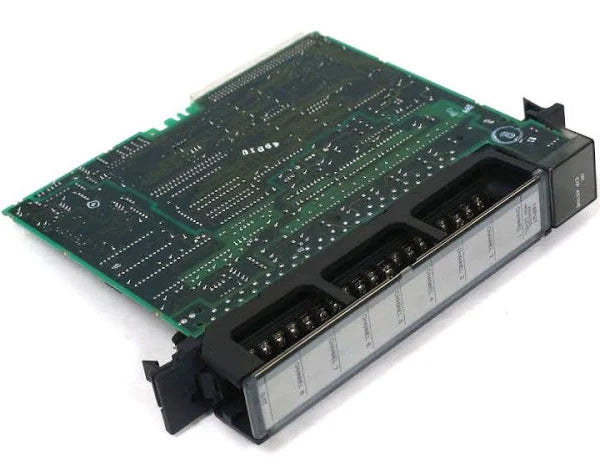

IC697ALG230 | GE Fanuc 8-Channel Base Converter Module for Series 90-70 Analog Input Systems
- Regular price
- $1,092.00
- Sale price
- $1,092.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC697ALG230
Description
The GE Fanuc IC697ALG230 is an 8-channel base converter module for the Series 90-70 PLC platform, supporting both voltage and current analog input signals. Designed for integration with the IC697ALG440 and IC697ALG441 expander modules, it provides 16-bit resolution for precise and configurable signal measurement.
Technical Specifications
| Condition | New/Never Used Surplus |
| Part Number | IC697ALG230 |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Subcategory | Base Converter Module |
| Inputs | 8 differential channels |
| Input Type | Voltage or current |
| Current Range | 4–20 mA |
| Voltage Range | –10 V to +10 V |
| Resolution | 16-bit |
| Configuration | Individually configurable channels |
| Compatible Modules | IC697ALG440 (current expander), IC697ALG441 (voltage expander) |
| Scaling | User-selectable scaling per channel |
| Application | Analog signal processing in Series 90-70 PLC systems |
Information About IC697ALG230
The IC697ALG230 functions as the primary analog input interface for the Series 90-70 system, enabling differential input processing across eight individually configurable channels. Each channel can be set to accept either 4–20 mA current or ±10 V voltage signals, supporting a wide range of industrial sensing applications. As part of a modular architecture, the module is used alongside dedicated current and voltage expanders to enhance overall signal handling capacity. Manufactured originally by GE Fanuc and now by Emerson Automation, the IC697ALG230 offers reliable performance and flexible configuration in demanding automation environments.
Key Features
- Eight Differential Inputs: provides eight isolated analog input channels for accurate sensing of process variables.
- Dual Signal Support: each channel accepts 4–20 mA current inputs or ±10 V voltage inputs, selectable individually for maximum flexibility.
- 16-Bit Resolution: enables high-precision analog measurements suitable for advanced process monitoring and control.
- Modular System Integration: designed for use with IC697ALG440 current expander and IC697ALG441 voltage expander modules in Series 90-70 PLCs.
- Individual Channel Scaling: allows user-defined scaling per channel for customized data handling in complex applications.
- Industrial-Grade Reliability: engineered for stable performance in harsh industrial environments requiring accurate and noise-resistant analog acquisition.
- Seamless PLC Integration: fits directly into Series 90-70 systems, ensuring straightforward installation and compatibility with existing hardware.
- Differential Input Design: reduces noise interference and improves accuracy when measuring low-level analog signals.
The IC697ALG230 delivers the reliability and precision required for high-accuracy analog signal processing in GE Fanuc Series 90-70 PLC systems.
