IC697ALG320 | GE Fanuc | Output Analog Module
IC697ALG320 | GE Fanuc | Output Analog Module
Part #: IC697ALG320 Manufactured by: GE Fanuc

IC697ALG320 | GE Fanuc | Output Analog Module

Regular price
$599.00
Sale price
$599.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
The IC697ALG320, previously manufactured by GE Fanuc Automation and currently by Emerson Automation, is an analog output m...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: IC697ALG320
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for GE Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
IC697ALG320 | GE Fanuc | Output Analog Module
    IC697ALG320 | GE Fanuc | Output Analog Module
IC697ALG320 | GE Fanuc | Output Analog Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: IC697ALG320

Description / Specifications

Description

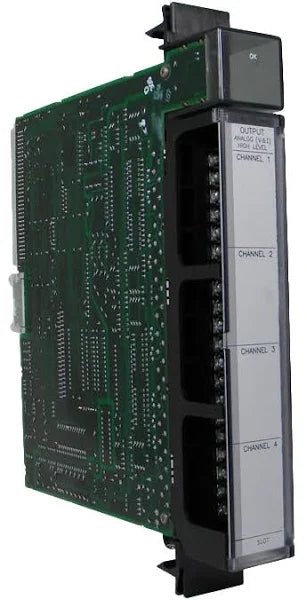

The IC697ALG320 is an analog output module designed for Series 90-70 PLC systems by GE Fanuc Automation, now under Emerson Automation. It facilitates the generation of 0-20 mA / 4-20 mA current output signals and -10VDC / +10 VDC voltage output signals.

Featuring four analog output channels, the module offers 16-bit resolution with 14-bit monotonicity. It operates with a conversion rate of 2 ms across all four channels, ensuring efficient signal processing and response times within the system architecture.

Technical Specifications


Brand

GE Fanuc

Series

Series 90-70

Manufacturer

GE Fanuc (Formerly); Emerson Automation (Current)

Product Description

Analog output module

Part Number

IC697ALG320

No of Channels

Four (4) output channels

Analog output signal

0-20 mA / 4-20 mA; -10VDC / +10 VDC

No. of Outputs

4 Outputs

Output ranges

Voltage: -10 volts to +10 volts (default)

Output ranges

Current: 0.0 mA to 22.5 mA (4 to 20 mA default)

Voltage Output Range

-10 to +10 Volts

Analog output resolution

16 bit with 14-bit monotonicity

Analog output resolution

312.5 microvolts per LSB step on voltage

Conversion rate

2.0 ms

Current Output Range

0 to 22.2 milliamps

Max. number of module per rack

Seven (7) IC697ALG320 modules

Calibration

Calibrated at factory with calibration data stored in EEPROM memory

Max, no. of Output channels

252 channels

Resolution

16 bits with 14-bit monotonicity

Analog output accuracy

Voltage: Factory set at full scale = 10 volts ±2.5 millivolts

Analog output accuracy

Current: Factory set at 4.0 mA ±5 µA and 20 mA ± 5 µA

Current draw

1.66A (8.3 watts) at 5VDC maximum

Current draw

150 mA of DC user power must be supplied by the user for the current outputs

Product Lifecycle

Discontinued / Obsolete

Power Requirement

1.66 Amps (8.3 watts) at +5 Volts

External Supply Voltage Range

10 to 30 VDC (24 VDC typical)

Module width

1-slot

Weight

0.84 kilograms

Product Lifecycle Status

Discontinued



Information About IC697ALG320


The IC697ALG320 is an analog output module manufactured by GE Fanuc Automation, now under Emerson Automation, designed for use with the Series 90-70 PLC system. It facilitates the generation of current output signals ranging from 0-20 mA or 4-20 mA, as well as voltage output signals within the range of -10VDC to +10 VDC.

Primarily, this module offers four (4) analog output channels, each featuring a 16-bit resolution with 14-bit monotonicity. This high resolution ensures precise control over the output signals, enabling accurate representation of the desired values in the control system.

The IC697ALG320 boasts a conversion rate of 2 milliseconds for all four channels, indicating its ability to swiftly process input data and generate corresponding output signals in real-time. This rapid conversion rate enhances the responsiveness and efficiency of the control system, allowing for quick adjustments to changing input conditions.

With its versatile output capabilities, the module caters to various industrial applications that demand precise analog signal generation. The current output signals enable the control of devices or processes that rely on current levels within the specified range, while the voltage output signals offer flexibility in controlling systems that operate based on voltage variations.

The module's compatibility with the Series 90-70 PLC system ensures seamless integration into existing automation setups, providing users with a reliable solution for analog signal processing and control.

Manufactured to stringent quality standards, the IC697ALG320 undergoes rigorous testing and calibration procedures to ensure accuracy and reliability in operation. Its robust construction and durable design make it suitable for use in demanding industrial environments where consistent performance is paramount.


Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The IC697ALG320 is an analog output module designed for Series 90-70 PLC systems by GE Fanuc Automation, now under Emerson Automation. It facilitates the generation of 0-20 mA / 4-20 mA current output signals and -10VDC / +10 VDC voltage output signals.

Featuring four analog output channels, the module offers 16-bit resolution with 14-bit monotonicity. It operates with a conversion rate of 2 ms across all four channels, ensuring efficient signal processing and response times within the system architecture.

Technical Specifications


Brand

GE Fanuc

Series

Series 90-70

Manufacturer

GE Fanuc (Formerly); Emerson Automation (Current)

Product Description

Analog output module

Part Number

IC697ALG320

No of Channels

Four (4) output channels

Analog output signal

0-20 mA / 4-20 mA; -10VDC / +10 VDC

No. of Outputs

4 Outputs

Output ranges

Voltage: -10 volts to +10 volts (default)

Output ranges

Current: 0.0 mA to 22.5 mA (4 to 20 mA default)

Voltage Output Range

-10 to +10 Volts

Analog output resolution

16 bit with 14-bit monotonicity

Analog output resolution

312.5 microvolts per LSB step on voltage

Conversion rate

2.0 ms

Current Output Range

0 to 22.2 milliamps

Max. number of module per rack

Seven (7) IC697ALG320 modules

Calibration

Calibrated at factory with calibration data stored in EEPROM memory

Max, no. of Output channels

252 channels

Resolution

16 bits with 14-bit monotonicity

Analog output accuracy

Voltage: Factory set at full scale = 10 volts ±2.5 millivolts

Analog output accuracy

Current: Factory set at 4.0 mA ±5 µA and 20 mA ± 5 µA

Current draw

1.66A (8.3 watts) at 5VDC maximum

Current draw

150 mA of DC user power must be supplied by the user for the current outputs

Product Lifecycle

Discontinued / Obsolete

Power Requirement

1.66 Amps (8.3 watts) at +5 Volts

External Supply Voltage Range

10 to 30 VDC (24 VDC typical)

Module width

1-slot

Weight

0.84 kilograms

Product Lifecycle Status

Discontinued



Information About IC697ALG320


The IC697ALG320 is an analog output module manufactured by GE Fanuc Automation, now under Emerson Automation, designed for use with the Series 90-70 PLC system. It facilitates the generation of current output signals ranging from 0-20 mA or 4-20 mA, as well as voltage output signals within the range of -10VDC to +10 VDC.

Primarily, this module offers four (4) analog output channels, each featuring a 16-bit resolution with 14-bit monotonicity. This high resolution ensures precise control over the output signals, enabling accurate representation of the desired values in the control system.

The IC697ALG320 boasts a conversion rate of 2 milliseconds for all four channels, indicating its ability to swiftly process input data and generate corresponding output signals in real-time. This rapid conversion rate enhances the responsiveness and efficiency of the control system, allowing for quick adjustments to changing input conditions.

With its versatile output capabilities, the module caters to various industrial applications that demand precise analog signal generation. The current output signals enable the control of devices or processes that rely on current levels within the specified range, while the voltage output signals offer flexibility in controlling systems that operate based on voltage variations.

The module's compatibility with the Series 90-70 PLC system ensures seamless integration into existing automation setups, providing users with a reliable solution for analog signal processing and control.

Manufactured to stringent quality standards, the IC697ALG320 undergoes rigorous testing and calibration procedures to ensure accuracy and reliability in operation. Its robust construction and durable design make it suitable for use in demanding industrial environments where consistent performance is paramount.


Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
