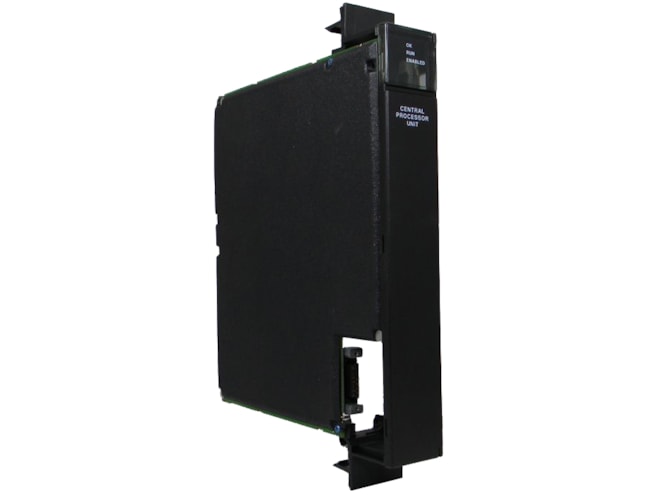

IC697CPX782 | GE Fanuc Series 90-70 CPU Module, 96 MHz 80486DX4, 1 MB RAM
- Regular price
- $3,124.00
- Sale price
- $3,124.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IC697CPX782
Description
The GE Fanuc IC697CPX782 is a high-performance CPU module for Series 90-70 PLC systems, powered by a 96 MHz 80486DX4 microprocessor. It provides 1 MB of battery-backed RAM and 256 KB of non-volatile memory, supporting advanced control, communication, and large I/O applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLC Hardware |
| Part Number | IC697CPX782 |
| Subcategory | CPU Modules |
| Series | GE Fanuc Series 90-70 |
| Microprocessor | Intel 80486DX4 |
| Clock Speed | 96 MHz |
| Architecture | 32-bit with floating-point support |
| User RAM | 1 MB battery-backed |
| NV-RAM | 256 KB |
| Boolean Execution Time | 0.4 µs |
| Supported I/O | Up to 8,000 analog / 12,000 mixed I/O |
| Serial Ports | 3 (Port 1: RS-232; Ports 2 & 3: RS-485) |
| Firmware | Supports in-system firmware upgrades |
| Programming | Via Ethernet (with module) or serial ports |
| Required Bus Voltage | 5 VDC |
| Current Draw | 3.1 A nominal |
| LED Indicators | Run, OK, Serial Port Status LEDs |
| Battery Shelf Life | 5 years at 20 °C |
| Operating Temperature | 0–60 °C |
| Compatibility | All GE Fanuc 90-70 PLC racks |
| Weight | 1.9 lbs |
Information About IC697CPX782
The IC697CPX782 is part of the GE Fanuc Series 90-70 family, designed as a powerful CPU solution for large and complex automation systems. Equipped with a 96 MHz Intel 80486DX4 processor, it delivers high-speed logic execution with a Boolean function time of 0.4 microseconds. Its memory architecture includes 1 MB of battery-backed RAM and 256 KB of non-volatile memory, supporting robust program retention and data storage. The module provides three serial communication ports—RS-232 on Port 1 and RS-485 on Ports 2 and 3—allowing flexible connection to programming devices, operator interfaces, and external equipment. The CPU supports up to 8,000 analog I/O points or 12,000 mixed I/O points, making it well suited for large-scale control environments. With firmware upgrade capability, extensive diagnostics, and Ethernet connectivity (via an additional interface module), it offers long-term adaptability and dependable performance for industrial automation.
Key Features:
- High-Speed Processing: 96 MHz 80486DX4 CPU delivers fast execution for complex logic applications.
- Expanded Memory Resources: 1 MB RAM plus 256 KB NV-RAM for program and data retention.
- Large I/O Capacity: Supports thousands of analog or mixed I/O points across Series 90-70 racks.
- Flexible Communication: Three serial ports with RS-232 and RS-485 support for programming and device interfacing.
- In-System Firmware Updating: Allows CPU firmware to be updated without module replacement.
- Battery-Backed Memory: Ensures critical program data is preserved during power loss.
- Full PLC Integration: Compatible with all Series 90-70 backplanes and modules.
- Robust Diagnostic Indicators: LED status lights for serial ports, CPU state, and system health.
- Stable Thermal Operation: Rated for 0–60 °C industrial temperature environments.
- Reliable Power Requirements: Draws 3.1 A from the 5 VDC bus for stable CPU operation.
The IC697CPX782 delivers the reliability and processing power required for complex, high-capacity control systems within the GE Fanuc 90-70 PLC platform.
