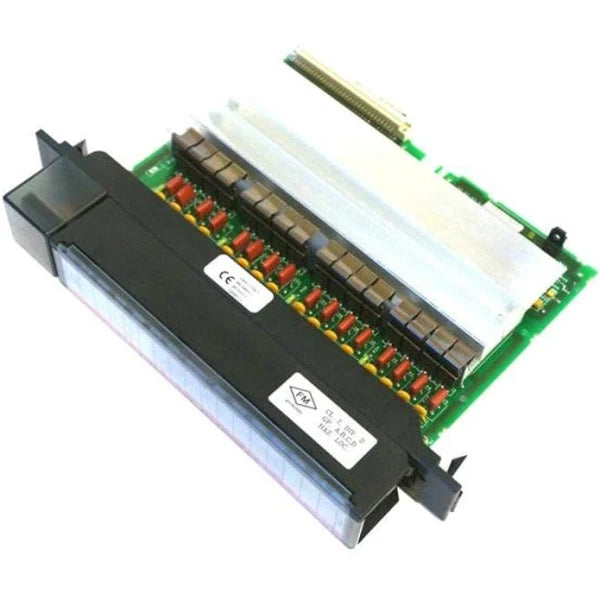

IC697MDL340 | GE Fanuc Series 90-70 120 VAC 16-Point Discrete Output Module
- Regular price
- $949.00
- Sale price
- $949.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC697MDL340
Description
The GE Fanuc IC697MDL340 is a 16-point 120 VAC discrete output module designed for the Series 90-70 PLC platform, providing four isolated groups of four outputs each. Each point supports up to 2 A with a high inrush capability, making the module suitable for inductive and incandescent loads requiring robust switching performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs / Machine Control |
| Part Number | IC697MDL340 |
| Subcategory | PLC Module / Rack |
| Rated Voltage | 120 VAC |
| Outputs per Module | 16 (4 groups × 4 outputs) |
| Isolation | 1500 V (Any Output to Backplane) |
| Output Voltage Range | 85–132 VAC, 47–63 Hz |
| Output Current | 2 A max per point |
| Inrush Current | 20 A max for one cycle (20 ms) |
| Output Voltage Drop | ≤ 3 V |
| Response Time – ON | ≤ 1 ms |
| Response Time – OFF | ½ cycle |
| Output Leakage | ≤ 1.5 mA |
| Fuse Rating | 10 A (per output group) |
| Current Required from 5 V Bus | 0.25 A |
| VME Standard | Supported |
| Load Compatibility | Inductive, Incandescent, Size 4 Contactors |
Information About IC697MDL340
The GE Fanuc IC697MDL340 output module is engineered for the Series 90-70 automation platform and provides sixteen 120 VAC output points arranged into four isolated groups. Each group can operate on separate AC phases, improving design flexibility in complex control systems. With a per-point rating of 2 A and a high inrush capability of up to 20 A for one line cycle, the module is well suited for inductive and incandescent loads such as solenoids, motor starters, and size 4 contactors. Each of the four output groups is protected by a dedicated 10 A fuse, while onboard LEDs provide clear indication of individual point status and fuse health. The module follows VME mechanical and electrical standards and features mechanical keying to ensure correct replacement during maintenance. It requires no DIP switches or jumpers, as I/O references are fully user-configurable, supporting flexible integration into industrial control architectures.
Key Features
- Sixteen 120 VAC Output Points: arranged in four isolated groups for phase-segmented AC distribution.
- High Inrush Capability: supports up to 20 A for one cycle, suitable for inductive and incandescent loads.
- Individual Group Protection: each group is fused with a 10 A replaceable fuse for added safety.
- Fast Response Times: delivers ≤1 ms turn-on and ½ cycle turn-off for responsive control performance.
- Industrial-Grade Isolation: 1500 V isolation between any output and the backplane enhances system safety.
- Clear LED Diagnostics: provides per-point status indication and fuse status at the top of the module.
- VME-Compliant Design: ensures compatibility within Series 90-70 racks and smooth system integration.
- User-Configurable I/O References: eliminates the need for DIP switches or jumpers, simplifying field setup.
The IC697MDL340 delivers the reliability and precision required for high-demand AC load switching, industrial automation control, and robust output performance within GE Fanuc Series 90-70 systems.
Description
The GE Fanuc IC697MDL340 is a 16-point 120 VAC discrete output module designed for the Series 90-70 PLC platform, providing four isolated groups of four outputs each. Each point supports up to 2 A with a high inrush capability, making the module suitable for inductive and incandescent loads requiring robust switching performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs / Machine Control |
| Part Number | IC697MDL340 |
| Subcategory | PLC Module / Rack |
| Rated Voltage | 120 VAC |
| Outputs per Module | 16 (4 groups × 4 outputs) |
| Isolation | 1500 V (Any Output to Backplane) |
| Output Voltage Range | 85–132 VAC, 47–63 Hz |
| Output Current | 2 A max per point |
| Inrush Current | 20 A max for one cycle (20 ms) |
| Output Voltage Drop | ≤ 3 V |
| Response Time – ON | ≤ 1 ms |
| Response Time – OFF | ½ cycle |
| Output Leakage | ≤ 1.5 mA |
| Fuse Rating | 10 A (per output group) |
| Current Required from 5 V Bus | 0.25 A |
| VME Standard | Supported |
| Load Compatibility | Inductive, Incandescent, Size 4 Contactors |
Information About IC697MDL340
The GE Fanuc IC697MDL340 output module is engineered for the Series 90-70 automation platform and provides sixteen 120 VAC output points arranged into four isolated groups. Each group can operate on separate AC phases, improving design flexibility in complex control systems. With a per-point rating of 2 A and a high inrush capability of up to 20 A for one line cycle, the module is well suited for inductive and incandescent loads such as solenoids, motor starters, and size 4 contactors. Each of the four output groups is protected by a dedicated 10 A fuse, while onboard LEDs provide clear indication of individual point status and fuse health. The module follows VME mechanical and electrical standards and features mechanical keying to ensure correct replacement during maintenance. It requires no DIP switches or jumpers, as I/O references are fully user-configurable, supporting flexible integration into industrial control architectures.
Key Features
- Sixteen 120 VAC Output Points: arranged in four isolated groups for phase-segmented AC distribution.
- High Inrush Capability: supports up to 20 A for one cycle, suitable for inductive and incandescent loads.
- Individual Group Protection: each group is fused with a 10 A replaceable fuse for added safety.
- Fast Response Times: delivers ≤1 ms turn-on and ½ cycle turn-off for responsive control performance.
- Industrial-Grade Isolation: 1500 V isolation between any output and the backplane enhances system safety.
- Clear LED Diagnostics: provides per-point status indication and fuse status at the top of the module.
- VME-Compliant Design: ensures compatibility within Series 90-70 racks and smooth system integration.
- User-Configurable I/O References: eliminates the need for DIP switches or jumpers, simplifying field setup.
The IC697MDL340 delivers the reliability and precision required for high-demand AC load switching, industrial automation control, and robust output performance within GE Fanuc Series 90-70 systems.
