IC697MDL350 | GE Fanuc | Output Module
- Regular price
- $1,112.00
- Sale price
- $1,112.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC697MDL350
Description
Technical Specifications
Specifications
|
Part # |
IC697MDL350 |
|
Manufacturer |
FANUC |
|
Brand |
GE FANUC |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Rated Voltage |
120 volts AC |
|
Outputs per Module |
32 (four groups of 8 outputs each) |
|
Isolation |
1500 volts - any output to backplane |
|
Output Voltage Range |
85 to 132 volts, 47-63 Hz |
|
Output Current |
0.5 amps maximum per point |
|
Inrush Current |
10 amps maximum per point for one cycle (20 ms) |
|
Output Voltage Drop |
3 volts maximum |
|
Response Time - On |
1 ms maximum |
|
Response Time - Off |
1/2 cycle |
|
Output Leakage |
1.5 mA maximum |
|
Current Required from 5V Bus |
0.5 amp |
|
VME |
System designed to support the VME standard C.1 |
Information About IC697MDL350

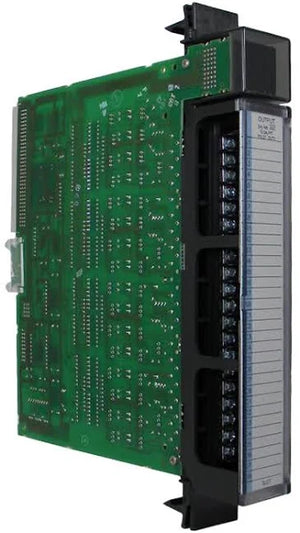

The IC697MDL350 is a 120 VAC 0.5 Amp, 32-Point Discrete Output Module manufactured by GE Fanuc for the Series 90-70 system. It features four isolated groups of 8 points, totaling 32 points, each with a 0.5 amp capacity and a high inrush capacity of 20 times the rated current. This module allows each group of 8 points to operate on different phases of the AC supply, enhancing versatility in industrial applications.
Each group of outputs is fused with a 5 amp fuse and exhibits a high degree of inrush current, rendering the outputs suitable for a wide range of inductive and incandescent loads. LEDs indicate the ON-OFF status of each point on the PLC side of the circuits, with an additional LED confirming the status of the fuses located at the top of the module.
Mechanically keyed for proper replacement, the IC697MDL350 promotes correct installation with similar modules in the field. Users can configure I/O references without the need for jumpers or DIP switches. Configuration is accomplished through the MS-DOS or Windows programming software running on Windows 95 or Windows NT, accessible over Ethernet TCP/IP or through the SNP port.
The IC697MDL350 is compatible with various load devices, including solenoids, motor starters, and indicators. The 0.5 amp rating applies to the long-term current capacity of each point. However, due to heat dissipation within the module, the maximum current capacity for each group of outputs is limited at higher temperatures.
