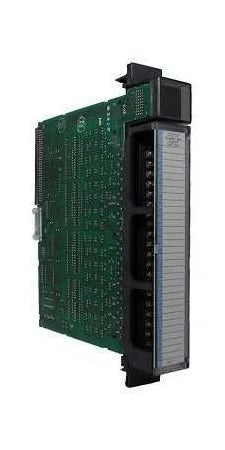

IC697MDL753 | GE Fanuc 90-70 Series DC Output Module 32 Point Negative Logic
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IC697MDL753
Description
The GE Fanuc IC697MDL753 is a 32-point DC output module designed for Series 90-70 PLC systems using negative logic control. It supports TTL-level operation with output voltages ranging from 5 V DC to 60 V DC and is suitable for loads requiring high inrush current capability.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC697MDL753 |
| Subcategory | PLC Module/Rack |
| PLC Series | Series 90-70 |
| Number of Outputs | 32 |
| Output Groups | 2 groups of 16 |
| Logic Type | Negative Logic (Sinking) |
| Rated Output Voltage | 5 V DC or 10–60 V DC |
| Output Voltage Range | 5–60 V DC |
| Output Current @ 5 V DC | 16 mA per point |
| Output Current @ 10–60 V DC | 0.5 A per point |
| Maximum Current per Group | 4 A |
| Module Current Requirement | 0.25 A |
| DC Power Required | Yes |
| Output Type | TTL Compatible |
Information About IC697MDL753
The IC697MDL753 is part of the GE Fanuc Series 90-70 PLC platform and is engineered for high-density DC output control in large-scale industrial automation systems. It provides 32 negative logic outputs divided into two electrically isolated groups, allowing independent load control and improved noise immunity. The module supports both low-voltage TTL signaling and higher DC voltage loads, enabling it to interface with a wide variety of field devices. LED indicators on each output point provide immediate visual status feedback for diagnostics and maintenance.
Key Features
- 32-point DC output configuration: Enables high-density discrete output control within a single Series 90-70 PLC slot.
- Negative logic (sinking) outputs: Designed to control loads by switching the negative side of the DC supply.
- Dual isolated output groups: Two groups of 16 outputs improve electrical separation and load management.
- Wide voltage support: Operates with 5 V DC TTL signals as well as 10–60 V DC loads for flexible application use.
- High current handling capability: Supports up to 0.5 A per output and 4 A per group for demanding load conditions.
- LED output status indicators: Provides clear ON/OFF indication for each output point to simplify troubleshooting.
- Industrial PLC compatibility: Designed specifically for GE Fanuc Series 90-70 PLC baseplates and control architectures.
The IC697MDL753 delivers the reliability and precision required for negative logic DC output control in Series 90-70 industrial PLC systems.
Description
The GE Fanuc IC697MDL753 is a 32-point DC output module designed for Series 90-70 PLC systems using negative logic control. It supports TTL-level operation with output voltages ranging from 5 V DC to 60 V DC and is suitable for loads requiring high inrush current capability.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC697MDL753 |
| Subcategory | PLC Module/Rack |
| PLC Series | Series 90-70 |
| Number of Outputs | 32 |
| Output Groups | 2 groups of 16 |
| Logic Type | Negative Logic (Sinking) |
| Rated Output Voltage | 5 V DC or 10–60 V DC |
| Output Voltage Range | 5–60 V DC |
| Output Current @ 5 V DC | 16 mA per point |
| Output Current @ 10–60 V DC | 0.5 A per point |
| Maximum Current per Group | 4 A |
| Module Current Requirement | 0.25 A |
| DC Power Required | Yes |
| Output Type | TTL Compatible |
Information About IC697MDL753
The IC697MDL753 is part of the GE Fanuc Series 90-70 PLC platform and is engineered for high-density DC output control in large-scale industrial automation systems. It provides 32 negative logic outputs divided into two electrically isolated groups, allowing independent load control and improved noise immunity. The module supports both low-voltage TTL signaling and higher DC voltage loads, enabling it to interface with a wide variety of field devices. LED indicators on each output point provide immediate visual status feedback for diagnostics and maintenance.
Key Features
- 32-point DC output configuration: Enables high-density discrete output control within a single Series 90-70 PLC slot.
- Negative logic (sinking) outputs: Designed to control loads by switching the negative side of the DC supply.
- Dual isolated output groups: Two groups of 16 outputs improve electrical separation and load management.
- Wide voltage support: Operates with 5 V DC TTL signals as well as 10–60 V DC loads for flexible application use.
- High current handling capability: Supports up to 0.5 A per output and 4 A per group for demanding load conditions.
- LED output status indicators: Provides clear ON/OFF indication for each output point to simplify troubleshooting.
- Industrial PLC compatibility: Designed specifically for GE Fanuc Series 90-70 PLC baseplates and control architectures.
The IC697MDL753 delivers the reliability and precision required for negative logic DC output control in Series 90-70 industrial PLC systems.
