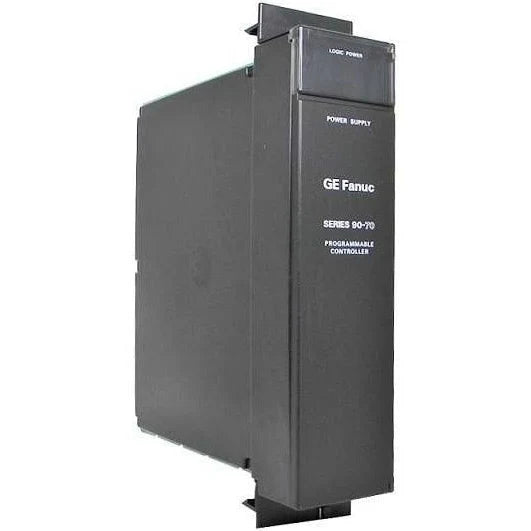

IC697PWR711 | GE Fanuc | Power Supply Module
- Regular price
- $842.00
- Sale price
- $842.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC697PWR711
Description
The GE Fanuc IC697PWR711 is a Power Supply module within the GE Fanuc Series 90-30 platform. This power supply is capable of powering One (1) or Two (2) racks. It is configurable for either 120VAC or 240VAC input, determined by the jumper setting. The power supply provides outputs of +5VDC and +/-12VDC with a maximum load capacity of 100 Watts.
Technical Specifications
|
Series |
90-30 PLC |
|
Holdup Time |
21 milliseconds minimum |
|
Overcurrent Limit |
+5 VDC output: 26 amp (maximum) |
|
Overcurrent Limit |
+12 VDC output: 4 amp (maximum) |
|
Overcurrent Limit |
-12 VDC output: 2 amp (maximum) |
|
Overvoltage Limit |
+5 VDC Output: 5.7 to 6.7 volts |
|
Input Half Cycle Peak Inrush |
55 amps (typical), 77 amps (maximum) |
|
Input Frequency Range |
47-63 Hz |
|
Input Voltage Range, AC |
90-132 VAC / 180-264 VAC |
|
Output Voltage |
+5 VDC: 4.90 to 5.25 volts |
|
Output Voltage |
+12 VDC: 11.75 to 12.6 volts |
|
Output Voltage |
-12 VDC: -12.6 to -11.75 volts |
|
No. of Outputs |
Three (3) |
|
Load Capacity |
100 Watts |
|
Product Type |
Power Supply Module |
|
Input Power |
160 watts maximum at full load |
|
Nominal rated voltage |
120/240 VAC |
|
Part Number |
IC697PWR711 |
|
Brand |
GE Fanuc |
|
Type |
Power module |
|
AC Input |
90 to 264 VAC |
|
Frequency |
47 to 63 Hz |
|
DC Input |
100 to 150 VDC |
|
Voltage regulation |
5, 12, and -12 VDC |
|
Power Factor |
> 0.93 |
|
Output power |
100 Watts maximum (total for all 3 outputs) |
|
Operating temperature |
0-60 degrees Celsius |
Information About IC697PWR711
The IC697PWR711, manufactured by GE Fanuc, serves as a Power Supply Module within the GE Fanuc Series 90-30 framework. This module facilitates the provision of power to one or two racks within the system. Its functionality is contingent upon the configuration, which allows for the adaptation to either 120VAC or 240VAC input, subject to jumper settings.
Designed with a load capacity of up to 100 Watts, the IC697PWR711 module supplies outputs of +5VDC and +/-12VDC. These outputs are intended to sustain the operational requirements of the connected components within the system.
The +5VDC output provides a regulated voltage of 5 volts, ensuring stable power delivery to compatible devices. Concurrently, the +/-12VDC outputs furnish a regulated voltage range of +12 volts and -12 volts, respectively. This dual output arrangement accommodates diverse power demands inherent in industrial applications.
Moreover, the IC697PWR711 module is engineered to maintain operational integrity under varying load conditions. It is designed to withstand fluctuations in power demand while ensuring consistent performance throughout its operational lifespan.
Installation and integration of the IC697PWR711 module are streamlined to optimize system functionality. The module is equipped with interface features that facilitate seamless connectivity within the Series 90-30 platform.
Furthermore, the module's compact design enhances spatial efficiency within the system configuration. Its dimensions are tailored to accommodate space constraints inherent in industrial environments, thereby promoting an optimal utilization of available resources.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
