IC697RCM711 | GE Fanuc Redundancy Communications Module
- Regular price
- $1,479.00
- Sale price
- $1,479.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC697RCM711
Description
The IC697RCM711 is a Redundancy Communications Module specifically designed for the GE Fanuc 90-70 series PLC system. This single-slot module features five LEDs that provide status indications for both the board and system operations. Its primary function is to facilitate synchronization messages from the active unit to the backup unit within a Hot Standby or Hot Standby CPU Redundancy system configuration.
Technical Specifications
|
Part # |
IC697RCM711 |
|
Module Type |
Redundancy Communications |
|
Number of Slots |
One (Single Slot) |
|
# of LEDs |
5 |
|
Connects to |
MS-DOS |
|
Serial Ports |
2 (1 not used) |
|
Current Required |
0.7 amps |
Information About IC697RCM711C

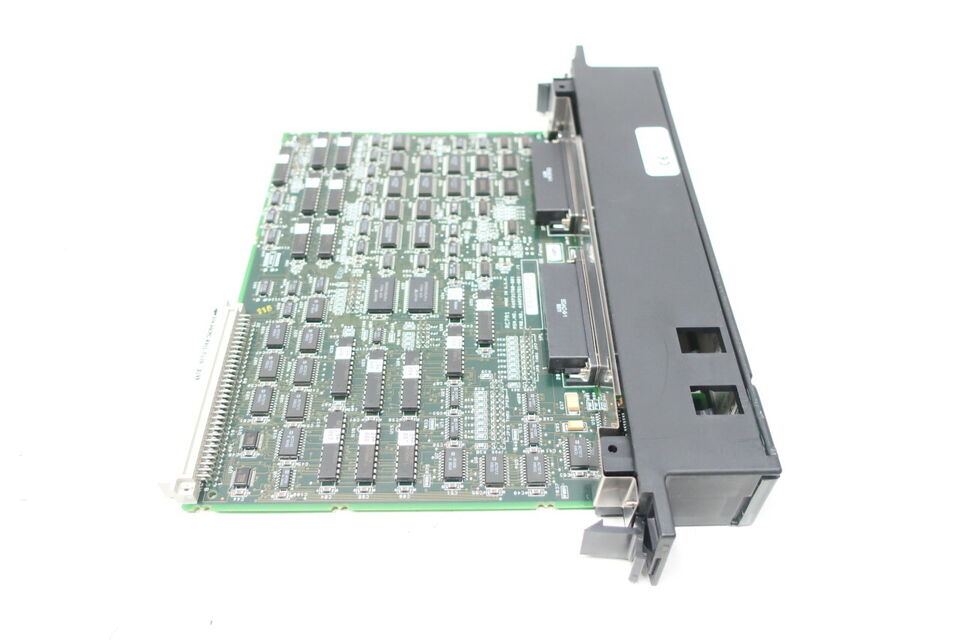

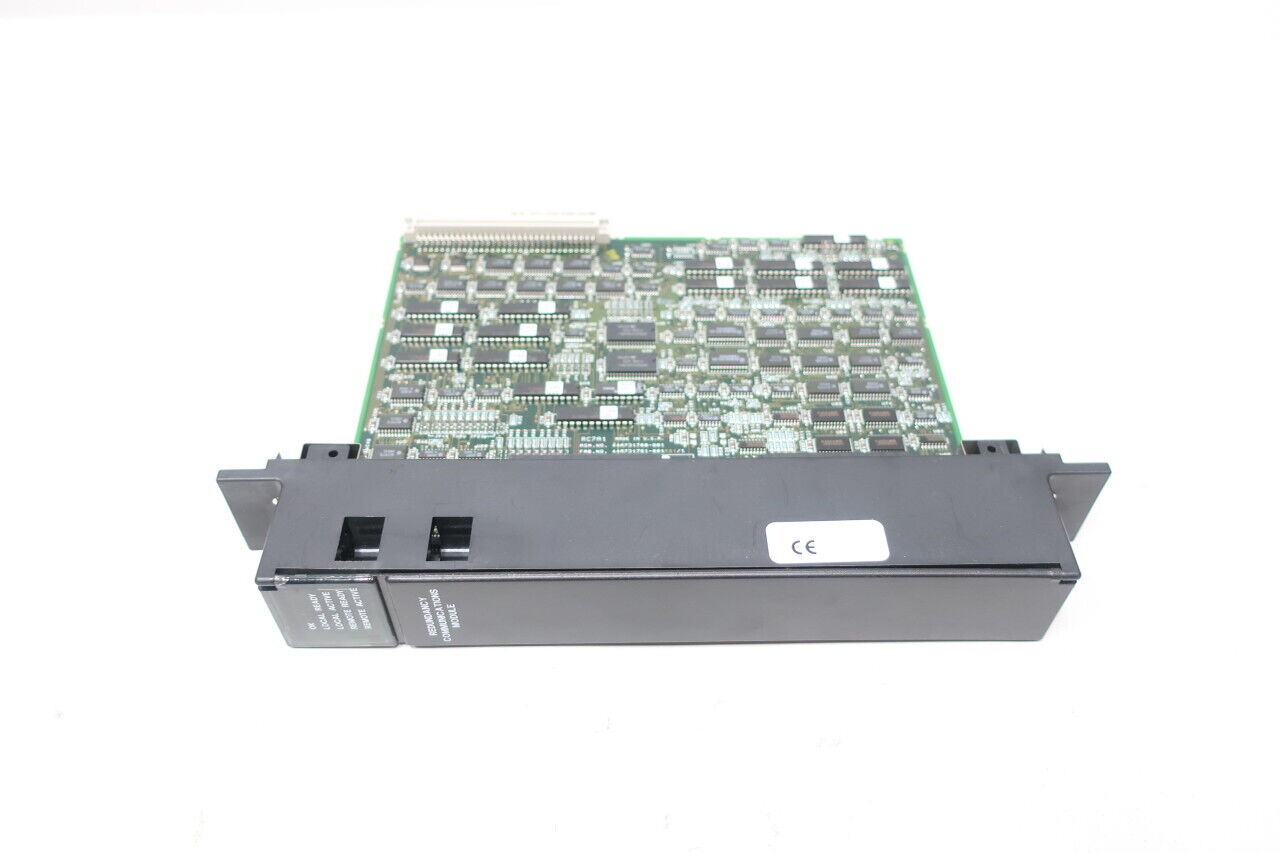

The IC697RCM711 is a Redundancy Communications Module designed for the GE Fanuc 90-70 series. It is a single-slot module that fits into one slot between slots 2-9. The module includes five LEDs, which provide status indications for the board and the system. The LEDs are labeled as Board OK, Local Ready, Local Active, Remote Ready, and Remote Active. These LEDs emit signals to inform users of the module's operational status.
The primary function of the IC697RCM711 module is to provide a path for synchronizing messages from the active unit to the backup unit. Additionally, it serves as a conduit for the transfer of I/O data shared between both units. This functionality is essential for ensuring that the backup unit can seamlessly take over operations if the active unit fails.
The module has two connectors: one located at the top and another at the bottom. The top connector is used for attaching the upstream BTM (Bus Terminal Module) or BRM (Bus Repeater Module). The bottom connector is not utilized in this configuration. The module is powered by a current of 0.7 amps and is configured using MS-DOS software.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
