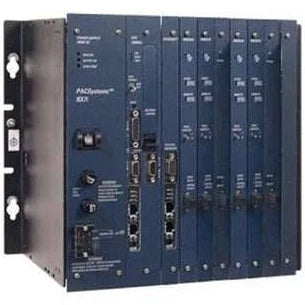

IC698CHS017 | GE Fanuc Rx7i PACSystem 17-Slot VME64 I/O Rack for CPU, Power Supply & Module Integration
- Regular price
- $2,244.00
- Sale price
- $2,244.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC698CHS017
Description
The GE Fanuc IC698CHS017 is a 17-slot I/O rack designed for the Rx7i PACSystem, supporting VME64 backplane architecture for high-speed data throughput. Compatible with Rx7i CPUs, Series 90-70 I/O, and standard VME modules, it offers flexible configuration in demanding control environments. The rack provides rear mounting capability and supports high-power supplies required for advanced industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC698CHS017 |
| Subcategory | PLC Module/Rack |
| Series | Rx7i PACSystem |
| Rack Type | I/O Rack |
| Slots Available | 17 |
| Backplane Type | VME64 |
| Power Supply Compatibility | 350 W Rx7i power supplies |
| Operating Voltage | 5 to 12 VDC |
| Current Rating | 60 A at 5 VDC, 4 A at 12 VDC |
| Mounting Type | Rear mounting |
| Fan Assembly | Optional |
| Dimensions (H × W × D) | 11.2 × 19.0 × 7.5 in. |
| I/O Support | Single- or double-width module support |
| System Compatibility | Rx7i CPUs, Series 90-70 I/O, VME modules |
| Enclosure Requirement | IP54 or higher (for industrial installation) |
| Configuration Method | CIMPLICITY Machine Edition Logic Developer-PLC |
| Operating Temperature | 0…60 °C |
Information About IC698CHS017
The IC698CHS017 is part of the GE Fanuc Rx7i PACSystem line and serves as a modular 17-slot I/O rack supporting VME64-based operation. Slot 0 is dedicated to the power supply, while slot 1 is designated for the CPU, ensuring consistent system architecture. The rack accommodates single- and double-width I/O modules and includes automatic slot-sensing functionality, eliminating the need for jumpers or DIP switch settings for addressing. Designed for compatibility with 350 W Rx7i power supplies, it delivers 60 A at 5 VDC and 4 A at 12 VDC for connected modules. Its open-style construction requires installation inside an enclosure rated IP54 or higher for industrial use and is fully supported through configuration tools such as CIMPLICITY Machine Edition Logic Developer-PLC.
Key Features:
- 17-slot backplane: Supports extensive PACSystem module configurations.
- VME64 architecture: Enables fast data throughput compared to standard VME systems.
- Dedicated CPU and power slots: Slot 1 for CPU, slot 0 for power supply.
- Automatic slot sensing: Eliminates DIP switch and jumper configuration.
- High-capacity power support: Compatible with 350 W Rx7i power supplies.
- Wide module compatibility: Works with Rx7i CPUs, Series 90-70 I/O, and standard VME modules.
- Flexible module arrangement: Supports single-width and double-width I/O modules.
- Rear mounting design: Suitable for industrial cabinet or enclosure installation.
- Open-style construction: Requires IP54 or higher protective enclosure.
- Software-configurable: Supported by CIMPLICITY Machine Edition for addressing and setup.
The IC698CHS017 delivers the reliability and precision required for high-performance PACSystem I/O expansion in demanding industrial environments.
