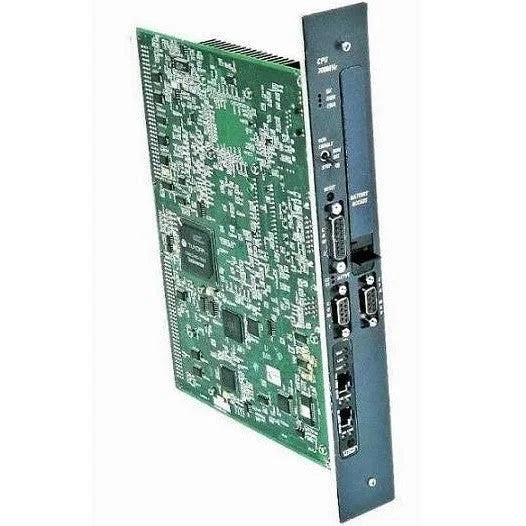

IC698CPE020 | GE FANUC Rx7i PACsystem
- Regular price
- $5,938.00
- Sale price
- $5,938.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC698CPE020
Description
The IC698CPE020 is a Central Processing Units (CPU). It is part of the PACSystem RX7i platform, currently under Emerson Automation, formerly produced by GE Intelligent Platforms (GE IP). This CPU is a rack mounted device that comes with 700 MHz Pentium III microprocessor and 10 Mbytes of battery-backed user memory and 10 Mbytes non-volatile (Flash) memory. The CPU’s IO memory is configurable to a maximum of 32Kbits for discrete %I and %Q and up to 32K words each for analog %AI and %AQ. It comes with Two (2) Ethernet communication port supporting 10/100 Mbps data rate and Two (2) isolated serial ports supporting RS232 and RS45 standard and another RS232Ethernet station manager port.
Technical Specifications
| Brand | GE FANUC |
| Series | PACSystem RX7i |
| Part Number | IC698CPE020 |
| Description | Rx7i PACsystem CPU |
| Communication ports | Two (2) LAN Ports; Two (2) RS232 / RJ45 Serial port |
| Random Access Memory (RAM) | 10 MB |
| Boolean Execution Speed | 0.14 ms per 1000 Boolean contacts/coils which |
| Application | Rx7i System |
| Supported programming language | Ladder Diagram, Structured Text, Function Block Diagram, or C |
| Operating Voltage | 5 to 12 Volts DC |
| Flash Memory | 10 MB |
| IO Memory | 32 Kbits Discrete I/O; 32 KWords Analog I/O |
| Discrete I/O memory | 32 K |
| Current Rating | 4.3 Amps |
| No. of Program blocks | 512 Program block |
| Analog I/O memory | 32 Kwords |
| Microprocessor | 700 Mega-Hertz Pentium III microprocessor |
| Compatible Memory storage | SRAM, Flash |
| Maximum Program block size | 128 KB |
| CPU Memory | 10 Megabyte User Logic RAM |
| Processor speed | 700 MHz |
| User Memory | 10 MB user-memory; 10 MB non-volatile memory |
| Supported serial protocols | Modbus RTU Slave, SNP, Serial I/O |
| Processor type | Pentium III, 700 MHz |
| Max Program Block | 512 Program Blocks |
| Supported Operation | Floating Point Operation |
| Supported Ethernet protocols | Ethernet Global data (EGD), SRTP, Modbus/TCP Server, and Modbus/TCP Client |
| Floating point | Supported |
| Programming Languages | Ladder Diagram, C, Structured Text, and Function Block Diagram |
| Ethernet data rate | 10Mb/sec and 100Mb/sec |
| Station Manager Port | One (1) RS232 Station Manager port |
| Built-in Ports | 2 Serial (RS-232, RS-485) 1 Ethernet (Auto 10/100, RJ45) |
| FTP / Webserver | Supported; Up to 16 connections |
| Media Redundancy | Supported via LAN 2 |
| Supported Protocols | Ethernet: SRTP, Modbus TCP Server and Client, Ethernet Global Data (EGD); Serial: Modbus RTU Slave, SNP, Serial I/O |
| Controller Redundancy | Supported via Synchronization Port LAN3 |
| Supported Protocols | Ethernet, SRTP Server, Modbus TCP Server, and EGD protocols |
| Current draw | +5 VDC: 4.5 Amps nominal; +12 VDC: 0.042 Amps nominal; -12 VDC: 0.008 Amps nominal |
| Location | Rx7i Rack |
Information About IC698CRE040
The IC698CPE020 is a Rack mount Central processing Module (CPU) from the PACSystem RX7i Programmable Automation Controller (PAC) Platform of Emerson Automation, formerly by GE Intelligent Platforms (GE IP). This CPU module is mainly used to process the downloaded user program for execution and actuation of connected electrical loads.
The IC698CPE020 is provided with a Pentium III, 700 MHz micro-processor with integrated 10 MB user memory and 10 MB non-volatile or flash memory. It has I/O memory that is designed to handle up to 32 Bits for discrete %I and %Q and up to 32K words each for analog %AI and %AQ. Up to 512 program blocks may be downloaded to this processor with maximum individual block size of 128 KB.
This CPU has built-in Two (2) Ethernet ports that support transmission rates of 10/100 mbps and compatible with Ethernet Global Data (EGD), TCP/IP communication services using SRTP, Modbus/TCP Server, and Modbus/TCP Client and may also be used as the primary programming and configuration port. These ethernet ports are embedded switch ports and require a single Ethernet I/P address only. With a CPU release 5.0 or later, these CPU ports can be used for Time Synchronization.
Aside from Ethernet ports, This module also has Three (3) isolated serial ports, supporting RS232 and RS485 standards. Two (2) of the serial ports can be used for data communication as these ports are compatible with Modbus RTU Slave, SNP, Serial I/O. The remaining serial port functions as an ethernet station manager port.
The IC698CPE020 comes with an upgradable firmware with integrated data monitoring capability. It has a total combined 16 Web server and FTP connections.
The GE Fanuc IC698CPE020 CPU is a central processing unit from the RX7i family of performance controllers that are designed to provide application flexibility across multiple hardware platforms. A fully programmed and configured IC698CPE020 CPU can perform real-time control of applications and machine processes and communicate with multiple I/O devices over the Rx7i backplane. The IC698CPE020 CPU is built with the VME64 architecture that supports a wide range of VME embedded technologies with fast data throughput, and it can communicate with a host of Human-Machine Interface devices (HMIs) via embedded Ethernet ports. The IC698CPE020 CPU comes with a 700-Megahertz Pentium III microprocessor and a 10-Megabyte RAM and a 10-Megabyte non-volatile flash memory for the storage of user data and programs. The IC698CPE020 CPU can perform both floating point math and Boolean functions and it supports the programming of the users' applications by using the Ladder Diagram, C, Function Block Diagram, and Structured Text programming languages.
The GE Fanuc IC698CPE020 CPU supports up to 512 KB of program blocks and it has a reference data table consisting of 32 Kilobits of %I and %Q discrete data and up to 32 kilowords of %AI and %AQ analog data. The IC698CPE020 CPU is located in Slot 1 of the Rx7i I/O rack and it has a maximum backplane current draw rating of 3.2 Amps at 5 Volts DC voltage. It has 3 rear serial ports that are the RS-485 port, the RS-232 port, and the RS-232 manager port, and a dual embedded Ethernet port that supports high-speed TCP/IP communication. The IC698CPE020 CPU also supports the Modbus RTU Slave, SNP, and the Serial I/O communication protocols. The IC698CPE020 CPU is configured by using the Proficy Machine Edition Logic Developer PLC software that is version 4.0 or later.
