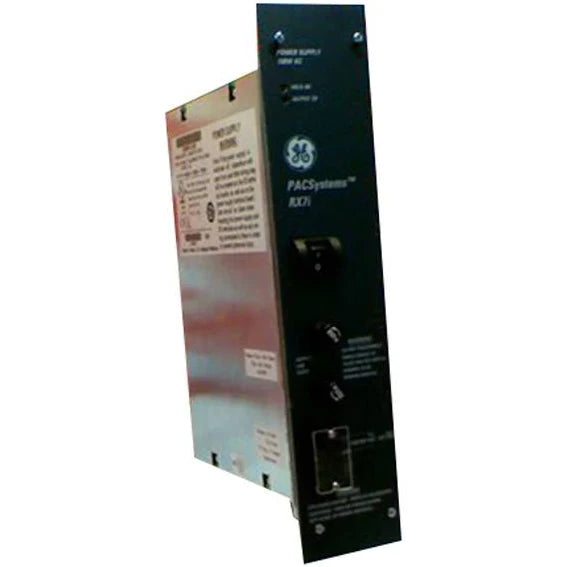

IC698PSA350 | GE Fanuc Emerson Power Supply Module
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC698PSA350
Description
The GE Fanuc IC698PSA350 is a high-capacity power supply module designed for PACSystems RX7i controllers, providing reliable backplane power for large automation racks. It supports wide-range AC and DC inputs and delivers up to 350 W of regulated output across three voltage rails for demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | Power Supplies |
| Part Number | IC698PSA350 |
| Subcategory | PACSystems RX7i Power Modules |
| Series | PACSystems RX7i |
| Module Type | Power Supply |
| Slot Assignment | Slot 0 (Leftmost rack position) |
| Nominal Rated Voltage | 120/240 VAC or 125 VDC |
| Input Voltage Range | 85–264 VAC / 100–150 VDC |
| Input Frequency | 47–63 Hz |
| Power Factor | 0.99 (AC input) |
| Input Power | 440 W typical, 500 W max |
| Output Power | 350 W max total |
| Output Voltages | +5 VDC, +12 VDC, –12 VDC |
| Output Currents | +5 VDC: 0–60 A / +12 VDC: 0–12 A / –12 VDC: 0–4 A |
| Overcurrent Limits | +5 VDC: 66 A / +12 VDC: 15 A / –12 VDC: 4.6 A |
| Isolation | 250 VAC continuous, 1500 VAC for 1 min |
| Hold-Up Time | 5 ms |
| Ride-Through Time | 15 ms |
| Protection | Overvoltage, overcurrent, over-temperature, airflow protection |
| Cooling | Forced-air, 70 CFM chassis fan |
| Wiring Terminals | Input: #16 AWG / Ground: #12 AWG |
| Operating Temperature | 0–60 °C |
| Status Indicators | FIELD OK / OUTPUT OK / OVER TEMP |
| Weight | 0.76 kg |
Information About IC698PSA350
The IC698PSA350 is part of the GE Fanuc PACSystems RX7i family and serves as the primary power source for the entire rack, supplying regulated backplane power to all installed modules. Installed exclusively in Slot 0, this supply delivers three isolated voltage outputs—5 VDC, +12 VDC, and –12 VDC—suitable for a wide variety of RX7i CPUs, communication modules, and specialty I/O. Designed to support both AC and DC power inputs, it offers broad voltage flexibility and high-efficiency operation with a power factor of 0.99 when operating from AC sources. Built-in protection mechanisms, including over-temperature, over-voltage, and airflow monitoring, safeguard the controller from electrical and thermal faults. With LED indicators and chassis-integrated forced-air cooling, the IC698PSA350 provides reliability and stable performance in demanding industrial automation environments.
Key Features:
- High-Capacity 350 W Output: Provides substantial backplane power for multi-module RX7i systems.
- Wide Input Range: Accepts 85–264 VAC or 100–150 VDC for flexible installation in global applications.
- Three Regulated Voltage Rails: Supplies +5 VDC, +12 VDC, and –12 VDC for diverse control and I/O requirements.
- Slot-0 Exclusive Design: Ensures dedicated power distribution and system stability within RX7i racks.
- Advanced Protection Circuits: Includes over-voltage, over-current, over-temperature, and airflow fault detection.
- High Efficiency with Power Factor Correction: Achieves PF 0.99 during AC operation for reduced energy loss.
- Industrial Reliability: Forced-air cooling and robust isolation enhance performance in harsh environments.
- Multiple Status Indicators: FIELD OK, OUTPUT OK, and OVER TEMP LEDs simplify diagnostics and maintenance.
- Durable Construction: Engineered to support continuous operation in mission-critical control systems.
- Full System Compatibility: Designed specifically for PACSystems RX7i universal backplanes.
The IC698PSA350 delivers the reliable, high-capacity power distribution required for complex PACSystems RX7i automation installations.
