IC754CSL12CTD-FE | Fanuc QuickPanel Operator Interface
- Regular price
- $664.00
- Sale price
- $664.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC754CSL12CTD-FE
Description

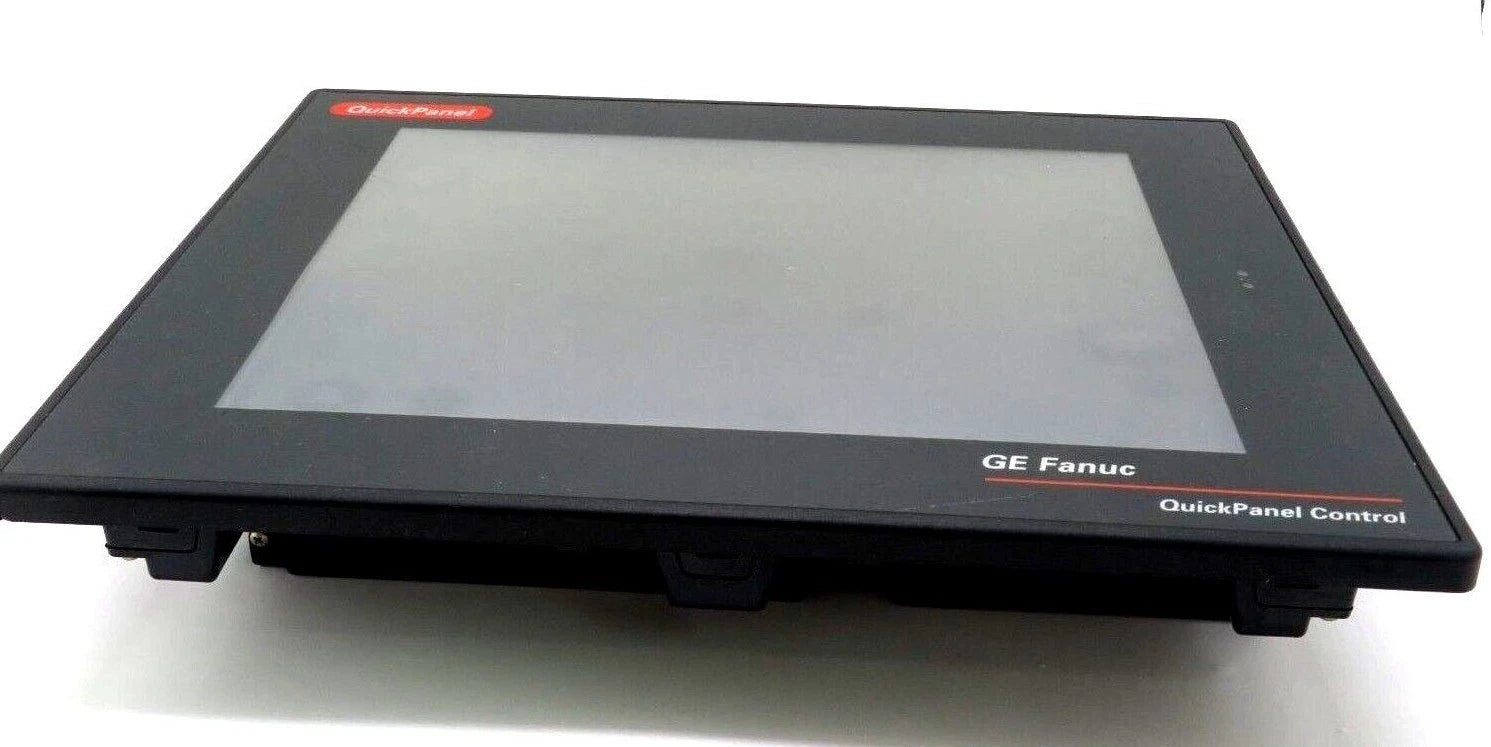

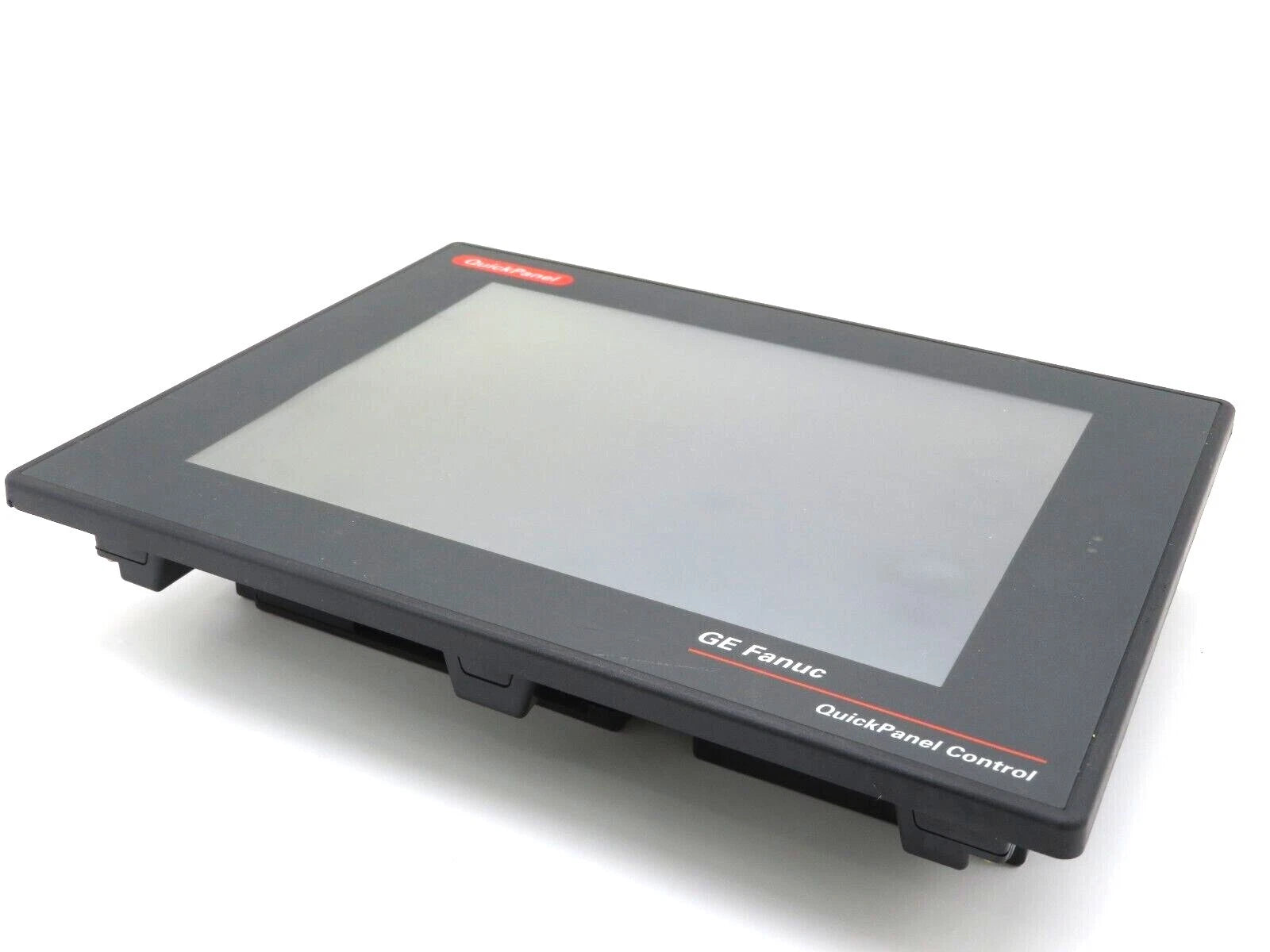

The GE Fanuc IC754CSL12CTD‑FE is a rugged 12" touchscreen operator interface (QuickPanel series) featuring an 800×600 TFT display for intuitive industrial HMI applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Industrial Automation |
| Part Number | IC754CSL12CTD-FE |
| Subcategory | HMI (Human-Machine Interface) Panels |
| Series | GE Fanuc QuickPanel+ |
| Display | 12″ TFT, 800 × 480 resolution, capacitive touch |
| Processor & Memory | ARM Cortex‑A8 (1 GHz), 512 MB DRAM, 256 MB flash, 512 KB SRAM |
| OS | Windows Embedded Compact 7 |
| Ports | 2× Ethernet, USB Host/Device, RS‑232/485, SD slot, audio out/in |
| Input Power | 24 VDC ±15 %, max current ≈2 A, power ≤15 W |
| Dimensions | 192 × 137 × 36 mm |
| Weight | ≈ 0.8 kg (1.76 lb) |
| Enclosure Rating | Front IP65, Pollution Degree 2 |
| Operating Environ. | 0–50 °C, ≤85 % RH non-condensing |
| Certification | UL, CE, potentially Class I Div 2, ATEX Zone 2 (depending on revision) |
Information About IC754CSL12CTD-FE
The IC754CSL12CTD-FE is a rugged and versatile GE Fanuc QuickPanel+ operator interface, designed for real-time monitoring and control in industrial automation environments. Featuring a 12″ WVGA (800×480) projected-capacitive touchscreen, it offers a high-resolution, glove-friendly display housed in an IP65-rated front panel enclosure. Powered by a 1 GHz ARM Cortex-A8 processor and running Windows Embedded Compact 7, this HMI provides fast response, flexible connectivity, and seamless integration with PLCs, sensors, and field devices. Though now discontinued, the IC754CSL12CTD-FE remains widely used and supported across manufacturing and process control industries.
Key Features:
- 12″ Touchscreen Interface: High-visibility color TFT display with projected-capacitive technology for responsive multi-touch control.
- Powerful Embedded Platform: Built on an ARM Cortex-A8 processor with 512 MB RAM, 256 MB flash, and battery-backed SRAM for fast HMI performance.

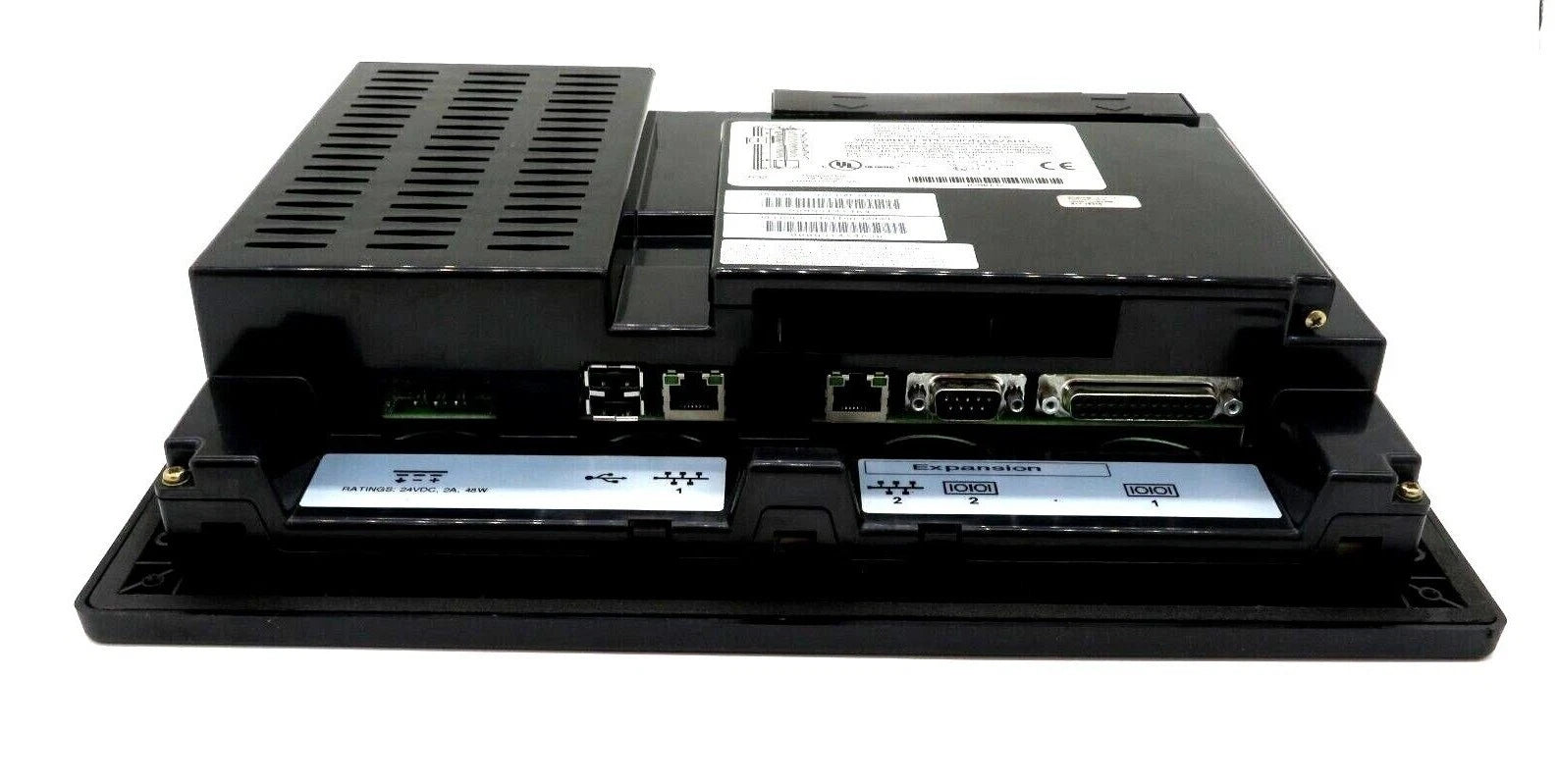

- Multiple Communication Ports: Equipped with dual Ethernet ports, USB Host/Device, RS-232/485 serial, and SD card slot for data logging and system connectivity.
- Industrial-Grade Protection: IP65-rated front bezel protects against dust and water ingress, with a fanless design and natural convection cooling.
- Low Power, Wide Voltage Input: Operates on 24 VDC (±20%), consuming only ~15 W, making it energy-efficient for continuous industrial use.
- Compact & Lightweight: Measures 192 × 137 × 36 mm and weighs approximately 0.8 kg, allowing flexible panel installation.
- Extended Environment Tolerance: Rated for 0–50 °C operating range and up to 85% non-condensing humidity, suited for harsh factory conditions.
The GE Fanuc IC754CSL12CTD-FE QuickPanel+ provides a durable, high-performance HMI solution for factory automation, machine interface, and system control. Combining a compact form factor with powerful processing and flexible I/O, it offers a dependable interface for real-time operations in demanding industrial settings.
