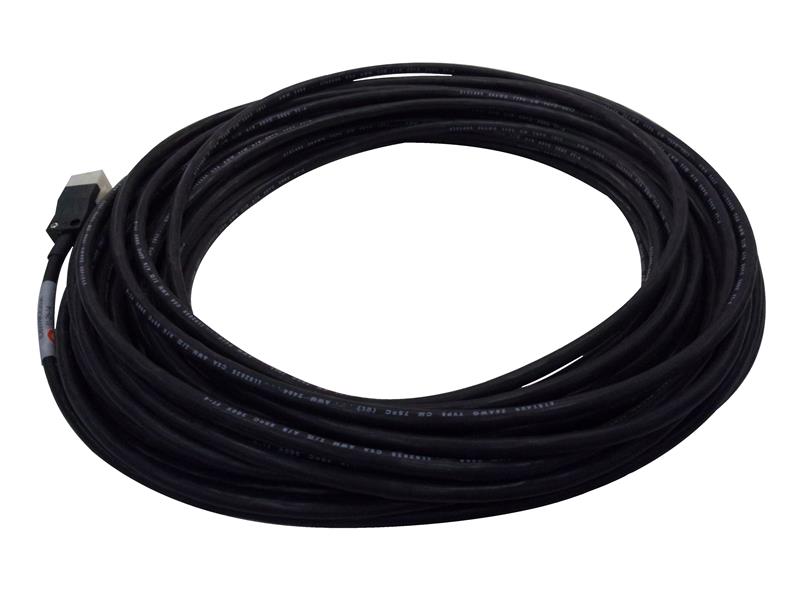

IC800VMCE200 | GE Fanuc VersaMotion Cable

Description

Technical Specifications

Information About IC800VMCE200

The IC800VMCE200 is an encoder cable designed as part of the Servo Products category, specifically under the Servo Cable and Accessory subcategory. Manufactured to meet the stringent requirements of motion control systems, this cable is engineered to provide reliable and precise connectivity between servo drives and motors. With a weight of 2.90 lbs and a length of 20 meters, the IC800VMCE200 is a robust and durable component, ideal for use in industrial environments where long cable runs are required.

This encoder cable is specifically designed for use with VersaMotion systems, which are known for their high-performance motion control capabilities. The IC800VMCE200 supports power ranges from 100W to 750W, making it suitable for a wide range of servo motor applications, from low-power setups to more demanding tasks that require higher power levels. The cable’s versatility in power handling ensures that it can be used in various configurations, providing flexibility for system designers and engineers when planning and implementing motion control systems.

The 20-meter length of the IC800VMCE200 offers ample reach for installations that require extended distances between components. This is particularly important in large-scale industrial environments where the distance between the servo drive and the motor can be significant. The extended length of the cable helps to simplify installations by reducing the need for additional connectors or extension cables, thereby minimizing potential points of failure and enhancing the overall reliability of the system.

As an encoder cable, the IC800VMCE200 plays a critical role in transmitting position and speed feedback from the servo motor to the drive. This feedback is essential for the precise control of motor movement, allowing the servo system to adjust and maintain accurate positioning and speed. The high-quality construction of the IC800VMCE200 ensures that the feedback signals are transmitted with minimal interference or signal loss, which is crucial for maintaining the performance and accuracy of the servo system.

The cable is constructed using durable materials that are designed to withstand the harsh conditions often found in industrial environments. This includes resistance to mechanical wear, abrasion, and environmental factors such as temperature fluctuations and exposure to chemicals. The robust design of the IC800VMCE200 ensures that it can endure the rigors of daily use in demanding applications without compromising its performance or lifespan.

In addition to its physical durability, the IC800VMCE200 is designed to provide excellent electrical performance. The cable features shielding that helps to protect the signal integrity by reducing electromagnetic interference (EMI) and crosstalk, which can be particularly problematic in environments with a high density of electrical equipment. The shielding ensures that the encoder signals are transmitted cleanly and accurately, which is essential for the reliable operation of the servo system.

The IC800VMCE200 is easy to install and integrate into existing systems. Its connectors are designed for secure attachment to both the servo drive and the motor, ensuring a stable and reliable connection. The cable’s flexibility allows it to be routed through tight spaces and around obstacles without placing undue strain on the connectors or the cable itself. This flexibility, combined with its length, makes the IC800VMCE200 a versatile solution for a wide range of installation scenarios.

Overall, the IC800VMCE200 encoder cable is a high-quality, reliable component that is essential for the optimal operation of VersaMotion servo systems. Its ability to handle a wide power range, combined with its durable construction and excellent signal integrity, makes it an ideal choice for industrial applications where precise motion control is critical. Whether used in new installations or as part of an upgrade or maintenance program, the IC800VMCE200 provides the reliability and performance that engineers and system integrators need to ensure the success of their motion control systems. Its robust design and long length ensure that it can meet the demands of even the most challenging environments, making it a valuable addition to any industrial motion control setup.

Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
