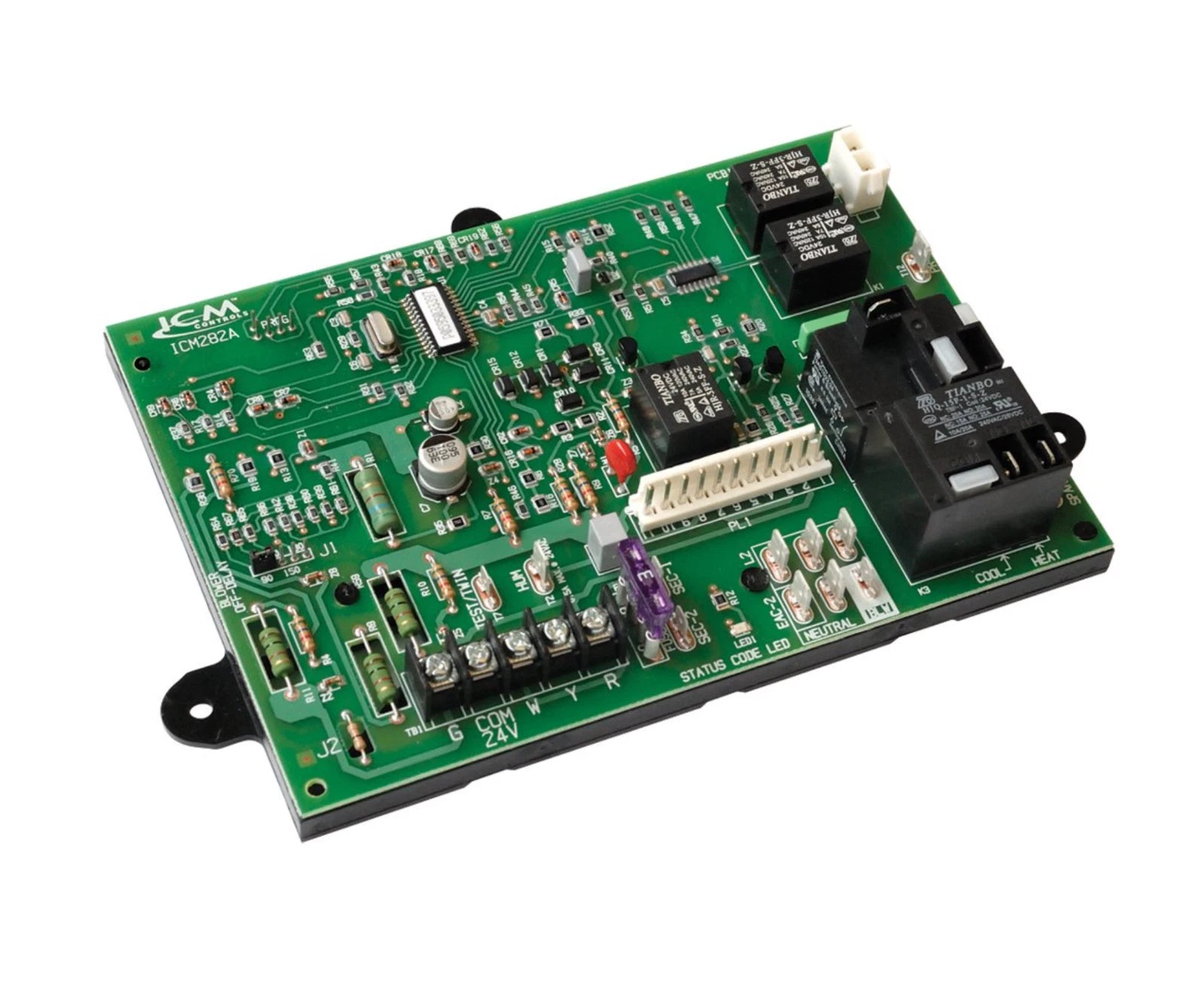

ICM Controls ICM282A Furnace Control Board OEM Replacement for Carrier HK42FZ-Series Systems
- Regular price
- $89.00
- Sale price
- $89.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ICM282A
Description
The ICM Controls ICM282A is a microprocessor-based furnace control board designed as a direct OEM replacement for Carrier HK42FZ-series systems. It manages critical furnace components including the gas valve, ignitor, blower, and inducer to ensure safe and efficient heating operation. Built for reliability, it provides advanced diagnostics and protection features for residential HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ICM Controls |
| Category | HVAC Controls |
| Part Number | ICM282A |
| Subcategory | Furnace Control Boards |
| Input Voltage Range | 98 to 132 VAC @ 60 Hz |
| Ignitor Output | 5 A @ 120 VAC |
| Cool Blower Rating | 30 A, 2 HP @ 240 VAC |
| Heat Blower Rating | 5 A, 1/2 HP @ 240 VAC |
| Inducer Motor Rating | 4 A FLA, 8.0 A LRA @ 120 VAC |
| Gas Valve Output | 1.5 A @ 30 VAC |
| Thermostat Compatibility | 24 VAC Standard |
| Control Type | Microprocessor-Based |
| Protection Features | Reverse polarity, brownout protection |
| Diagnostics | LED fault codes |
| Application Type | Counterflow and downflow furnaces |
| Weight | 0.8 lb |
Information About ICM282A
The ICM282A is a replacement furnace control board engineered by ICM Controls to match the functionality of Carrier HK42FZ-series modules. It features a durable electronic design with integrated microprocessor control to optimize furnace performance in both counterflow and downflow configurations. The board is compatible with standard 24 VAC thermostats and supports multiple HVAC components including humidifiers and air cleaners. With built-in diagnostic LEDs and advanced safety protections, it is widely used in residential heating systems requiring dependable control and fault monitoring.
Key Features:
- OEM Replacement Compatibility: Designed to replace multiple Carrier HK42FZ-series control boards
- Microprocessor-Based Control: Ensures precise timing and system coordination
- Multi-Component Control: Operates gas valve, ignitor, blower, inducer, humidifier, and air cleaner
- Diagnostic LED Indicators: Provides clear fault codes for troubleshooting
- Ignition Safety Shutoff: Ensures 100% gas shutoff in case of ignition failure
- Reverse Polarity Protection: Prevents damage from incorrect wiring connections
- Brownout Protection: Safeguards operation during low voltage conditions
- Twinning Capability: Allows connection with another ICM282A for dual furnace setups
- Thermostat Compatibility: Works with standard 24 VAC thermostats
- Enhanced Software Logic: Optimized for counterflow and downflow furnace applications
- High Load Capacity: Supports high-current blower and motor loads
- Easy Installation: Designed for straightforward replacement of OEM boards
The ICM282A delivers the reliability and precision required for efficient furnace control and safe residential HVAC system operation.
