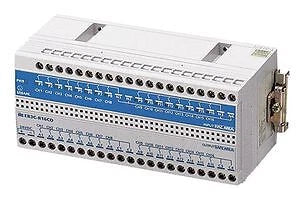

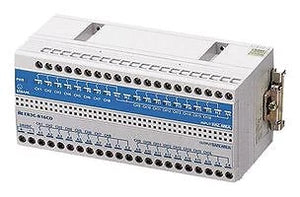

IDEC EB3C-R16CDN 16-Channel Intrinsic Safety Relay Barrier
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EB3C-R16CDN
Description
IDEC EB3C-R16CDN is a 16-channel intrinsic safety relay barrier designed to interface field devices in hazardous-area applications with control equipment in safe areas. It operates from 24 VDC and provides relay outputs through common-wiring connections.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Industrial Automation |
| Part Number | EB3C-R16CDN |
| Subcategory | Intrinsic Safety Barriers |
| Series | EB3C |
| Operating Voltage | 24 VDC |
| Power Consumption | Approx. 4.8 W |
| Connection Type | M3 Screw Terminal |
| Mounting | 35 mm DIN Rail / Panel |
| Dimensions (W × H × D) | 171.5 × 75 × 77.5 mm |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 45–85% RH, non-condensing |
| Ingress Protection | IP20 |
| Pollution Degree | 2 |
| Weight | 0.39 kg |
Information About EB3C-R16CDN
The EB3C-R16CDN is part of IDEC’s EB3C Relay Barrier Series for intrinsic safety applications. The unit provides 16 channels and uses relay output circuitry with common wiring for the connected field devices. It is equipped with screw terminals and can be installed on a 35 mm DIN rail or mounted directly to a panel. The device operates at 24 VDC and has a power consumption of approximately 4.8 W.
Key Features:
- 16-Channel Configuration: Provides 16 independent relay barrier channels for multi-device applications.
- Intrinsic Safety Barrier: Provides electrical isolation between intrinsically safe field circuits and non-intrinsically safe control circuits.
- Relay Output: Uses relay outputs for interface and switching applications.
- 24 VDC Operation: Designed for a 24 VDC operating supply.
- Common Wiring: Uses common wiring for the 16-channel configuration.
- Screw Terminals: Provides M3 screw-terminal connections for field and control wiring.
- DIN-Rail Mounting: Supports standard 35 mm DIN-rail installation or panel mounting.
- Industrial Construction: Designed for industrial hazardous-location interface applications.
The EB3C-R16CDN delivers the reliability and precision required for intrinsic safety interfacing, hazardous-area signal isolation, and industrial control systems.
