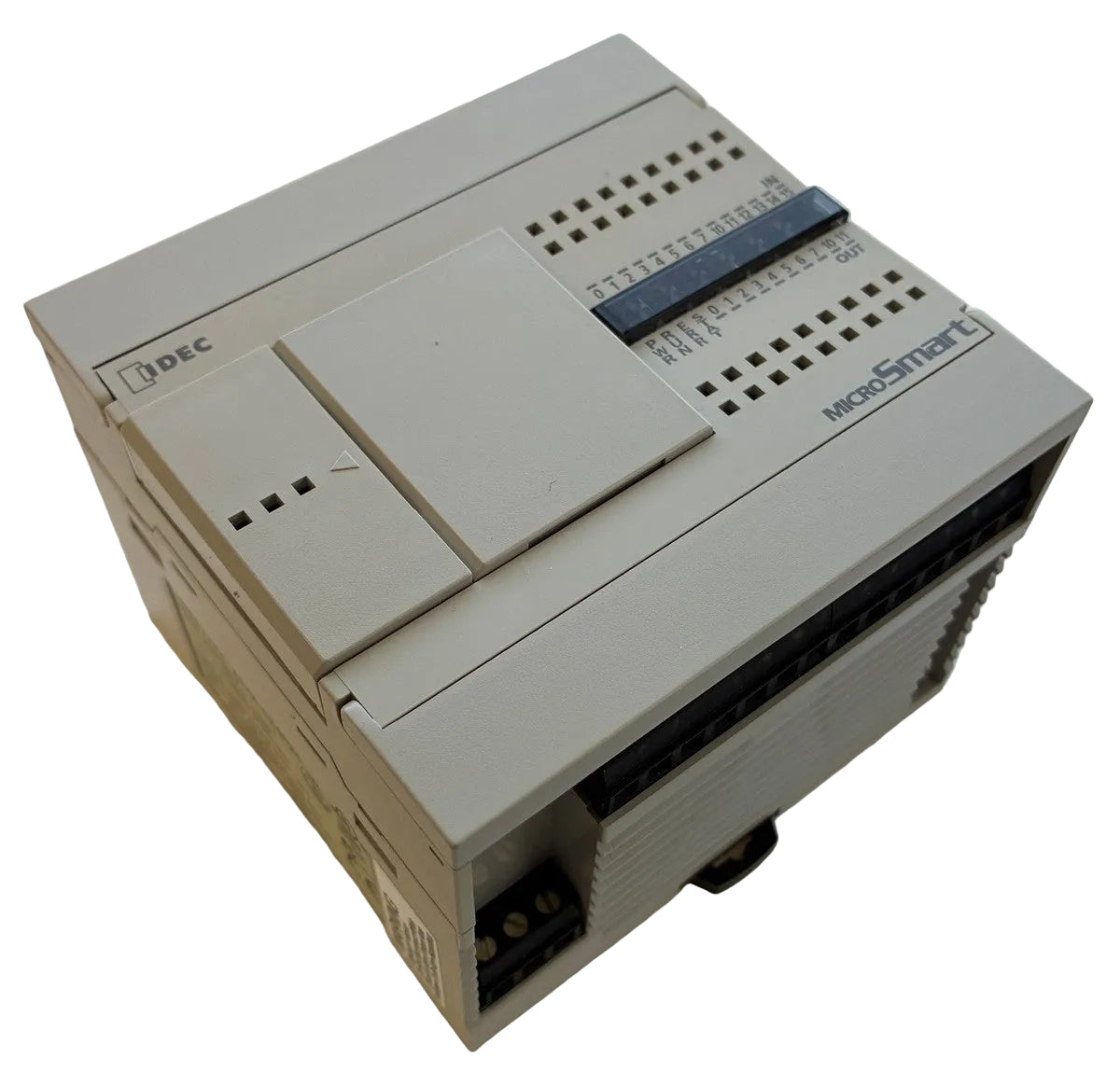

IDEC FC4A-C24R2C MicroSmart 24-Point PLC 14-Input 10-Relay Output CPU
- Regular price
- $737.00
- Sale price
- $737.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC4A-C24R2C
Description
The IDEC FC4A-C24R2C is a 24-point MicroSmart PLC CPU module with 14 digital inputs and 10 relay outputs. It operates with 24 VDC control signals and provides integrated relay switching for industrial automation equipment. The unit is designed for machine control, sequencing, and programmable industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | PLC / Programmable Logic Controller |
| Part Number | FC4A-C24R2C |
| Subcategory | Micro PLC |
| Series | MicroSmart FC4A |
| Module Type | All-in-One CPU Module |
| Total I/O Points | 24 |
| Digital Inputs | 14 |
| Digital Outputs | 10 |
| Input Type | 24 VDC Sink/Source |
| Input Voltage Range | 20.4–28.8 VDC |
| Output Type | Relay |
| Maximum Output Current | 2 A per point |
| Maximum Common Current | 8 A per common line |
| Rated Relay Load | 240 VAC/2 A; 30 VDC/2 A |
| Expansion Capacity | Up to 64 additional I/O points |
| Maximum System I/O | 88 points |
| High-Speed Inputs | 4 built-in |
| Relay Electrical Life | Minimum 100,000 operations |
| Relay Mechanical Life | Minimum 20,000,000 operations |
| Product Status | Discontinued |
| Mounting | DIN Rail / Panel |
| Weight | 200 g |
Information About FC4A-C24R2C
The FC4A-C24R2C belongs to the IDEC MicroSmart FC4A series of all-in-one programmable controller CPUs. It provides 14 DC inputs and 10 relay outputs, with the inputs supporting both sinking and sourcing signals. The relay section supports loads up to 2 A per output point and 8 A per common line, with a rated load of 240 VAC/2 A or 30 VDC/2 A. The 24-I/O CPU configuration can be expanded by up to 64 additional I/O points, allowing a maximum system capacity of 88 I/O points.
Key Features:
- 24-Point CPU: Provides 14 digital inputs and 10 relay outputs in one integrated PLC unit.
- 24 VDC Inputs: Supports 24 VDC sink/source input signals with an operating range of 20.4–28.8 VDC.
- Relay Outputs: Ten normally open relay outputs provide switching for connected control loads.
- 2 A Output Rating: Each relay output supports a maximum load current of 2 A.
- 8 A Common Rating: Each output common line supports up to 8 A of load current.
- I/O Expansion: Supports up to 64 additional I/O points for a maximum system capacity of 88 points.
- High-Speed Inputs: Includes four built-in high-speed inputs for supported pulse and counting applications.
- Industrial Standards: The series supports CE, cULus, Class 1 Division 2, and ABS approvals.
The FC4A-C24R2C delivers the reliability and precision required for programmable machine control, industrial automation, and relay-based PLC applications.
