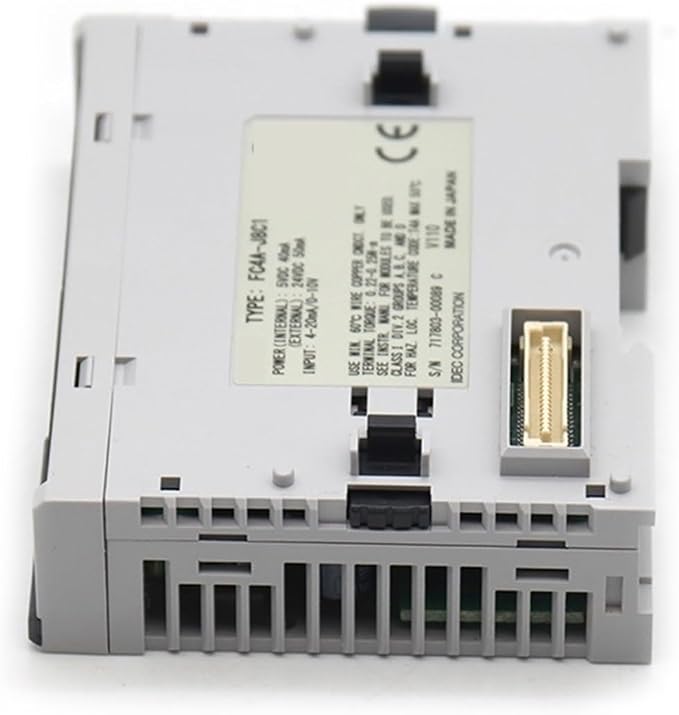

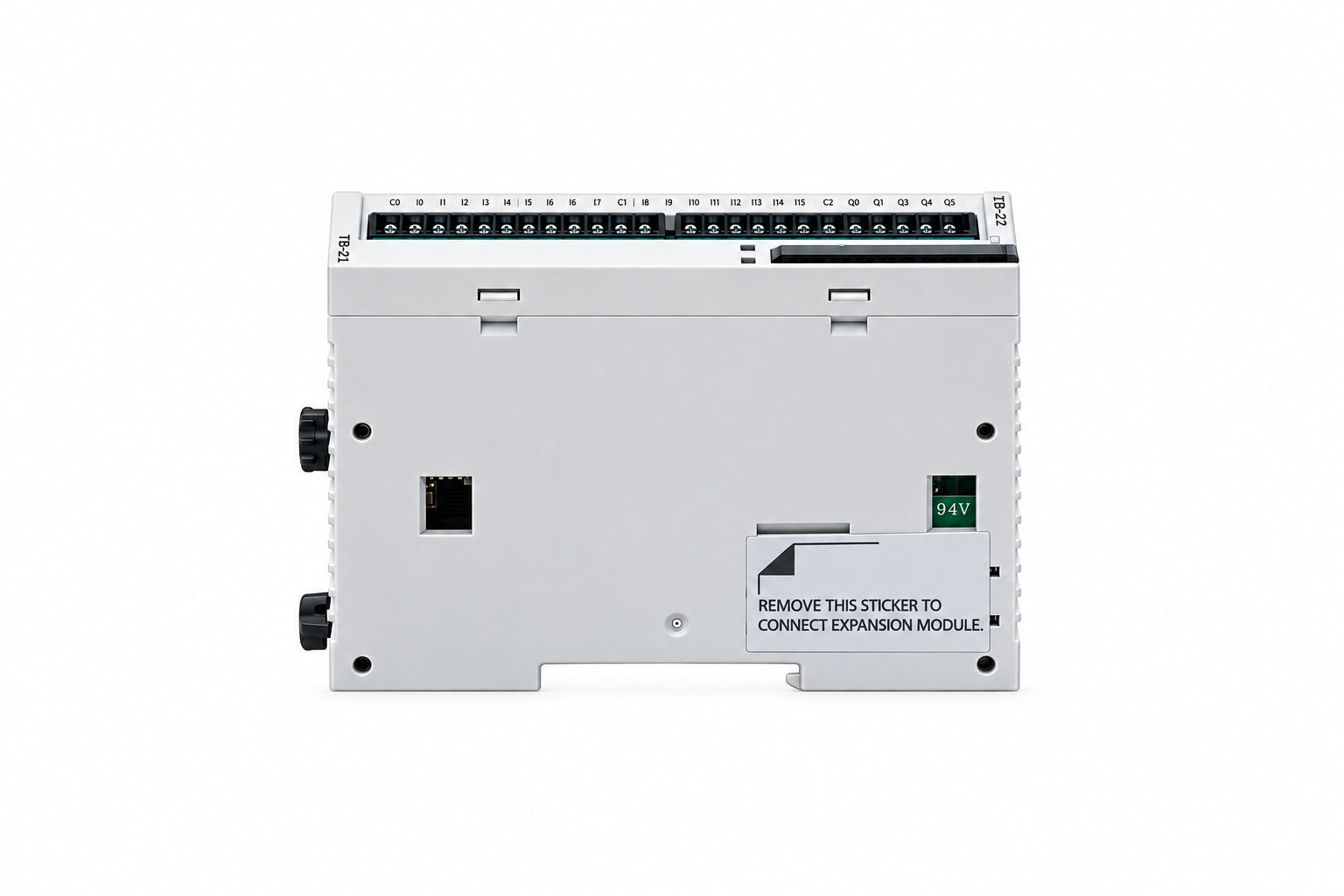

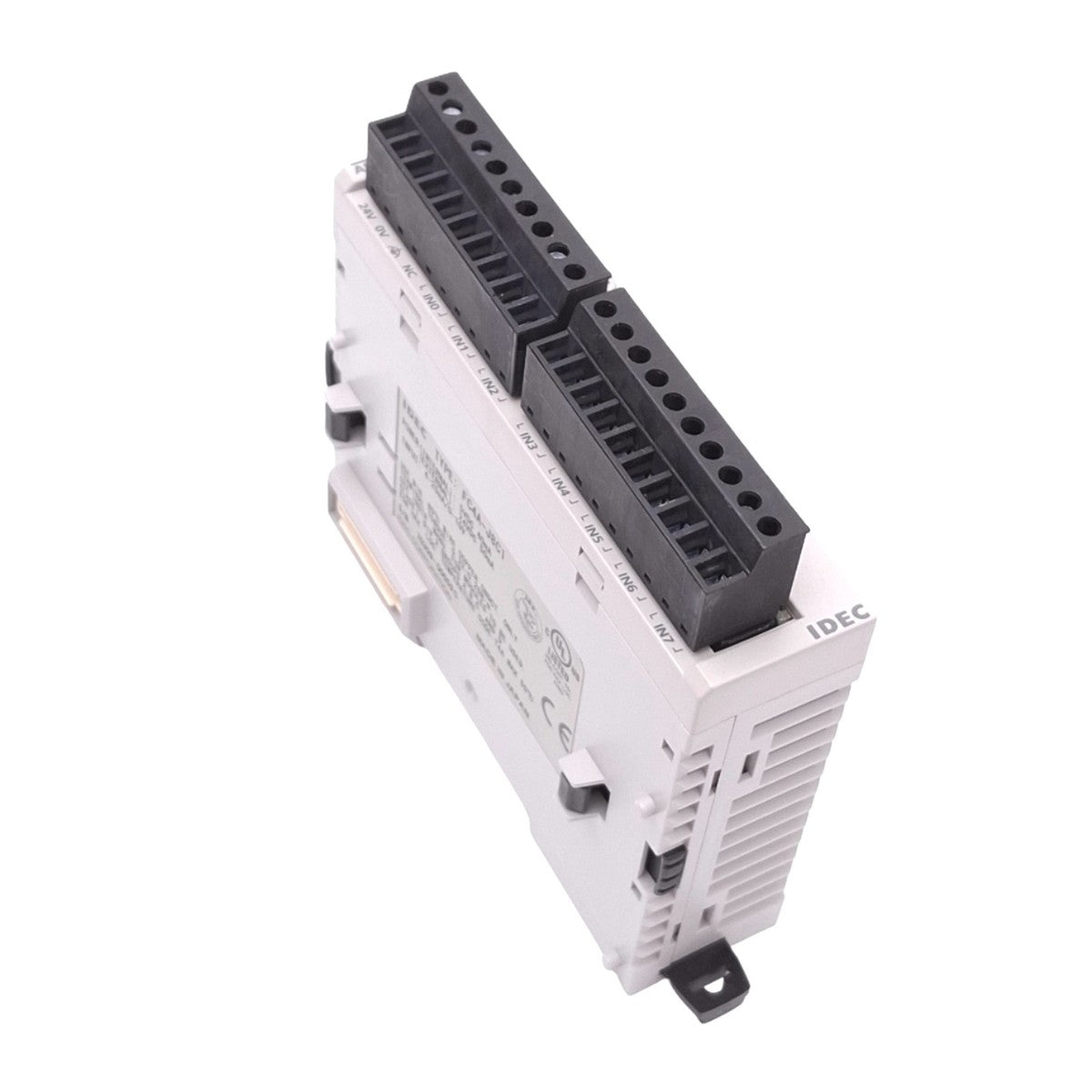

IDEC FC4A-J8C1 MicroSmart 8-Point Analog Input Expansion Module
- Regular price
- $615.00
- Sale price
- $615.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC4A-J8C1
Description
The IDEC FC4A-J8C1 is a MicroSmart analog input module designed for PLC systems requiring eight analog input points. It accepts 0–10 V DC voltage signals and 4–20 mA current signals, providing 16-bit digital resolution for industrial measurement and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Programmable Logic Controllers |
| Part Number | FC4A-J8C1 |
| Subcategory | Analog Input Modules |
| Series | FC5A/FC4A MicroSmart |
| Module Type | Analog I/O Expansion Module |
| Number of Inputs | 8 analog inputs |
| Voltage Input Range | 0–10 V DC |
| Current Input Range | 4–20 mA |
| Input Type | Single-ended |
| Digital Resolution | 16-bit, 50,000 increments |
| Rated Power Voltage | 24 V DC |
| Allowable Voltage Range | 20.4–28.8 V DC |
| Input Impedance | 1 MΩ voltage; 100 Ω current |
| Conversion Method | Successive approximation register |
| Operating Mode | Self-scan |
| Sample Repetition Time | 2 ms maximum |
| Maximum Error at 25°C | ±0.2% of full scale |
| Connector | MC1.5/10-G-3.81BK, Phoenix Contact |
| Weight | 0.31 lb |
Information About FC4A-J8C1
The FC4A-J8C1 is part of the IDEC FC5A/FC4A MicroSmart family of PLC expansion modules. It operates from a 24 V DC rated power supply and uses a removable connector arrangement for integration with compatible controller assemblies. The module uses successive-approximation-register A/D conversion with self-scan operation and single-ended inputs. Its eight-channel analog interface is intended for connecting voltage- and current-output field devices to MicroSmart PLC control systems.
Key Features:
- 8 Analog Inputs: Provides eight analog input channels for PLC measurement and monitoring.
- Voltage Input: Accepts 0–10 V DC analog signals.
- Current Input: Supports 4–20 mA current-loop signals.
- 16-Bit Resolution: Provides 50,000 digital increments for analog conversion.
- Fast Sampling: Maximum sample duration and repetition time are 2 ms.
- Self-Scan Operation: Performs analog conversion independently through self-scan operation.
- 24 V DC Supply: Uses a rated power voltage of 24 V DC with an allowable range of 20.4–28.8 V DC.
- Removable Connector: Uses an MC1.5/10-G-3.81BK Phoenix Contact motherboard connector.
The FC4A-J8C1 delivers the reliability and precision required for industrial PLC-based analog signal monitoring and control.
