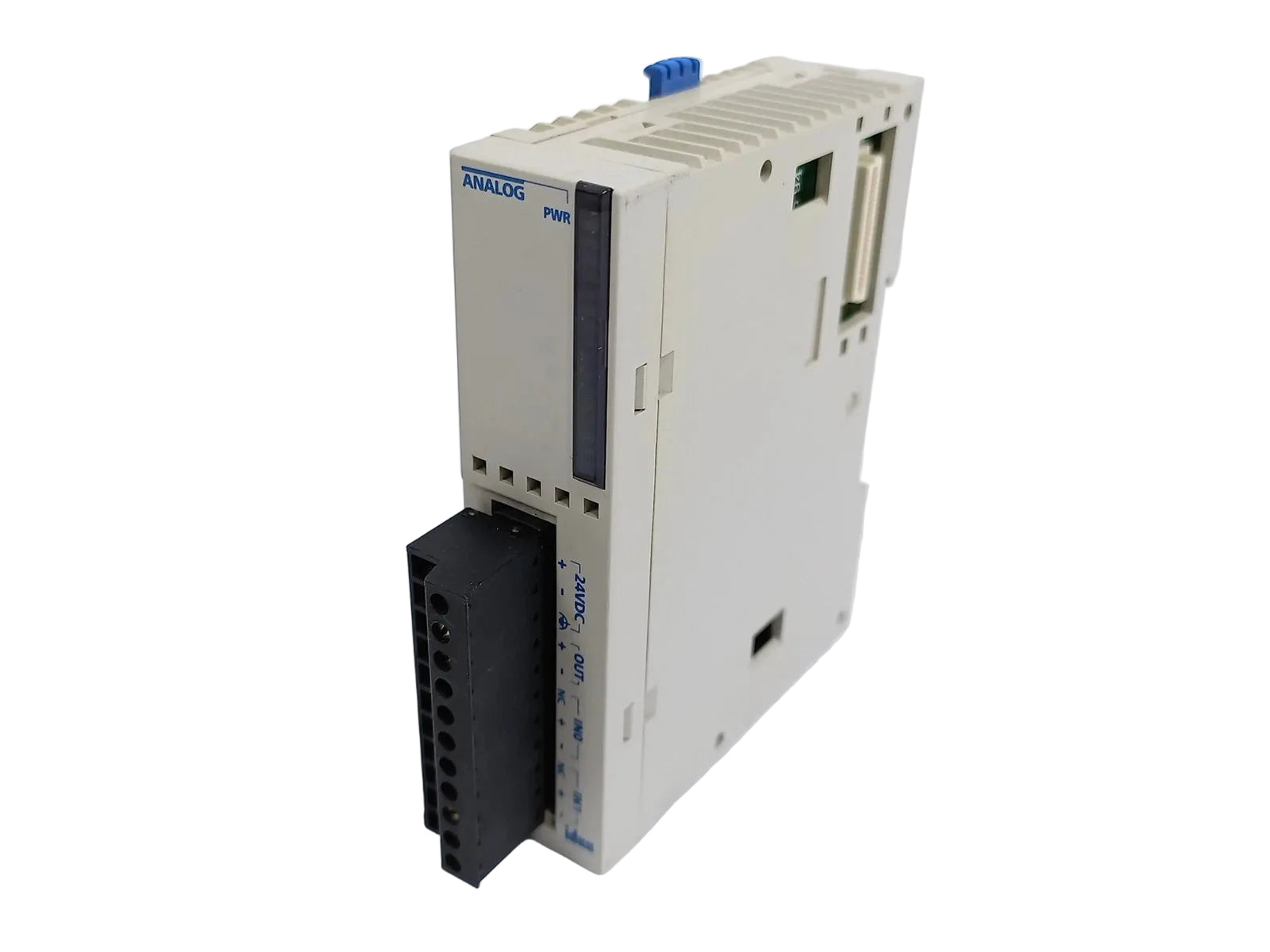

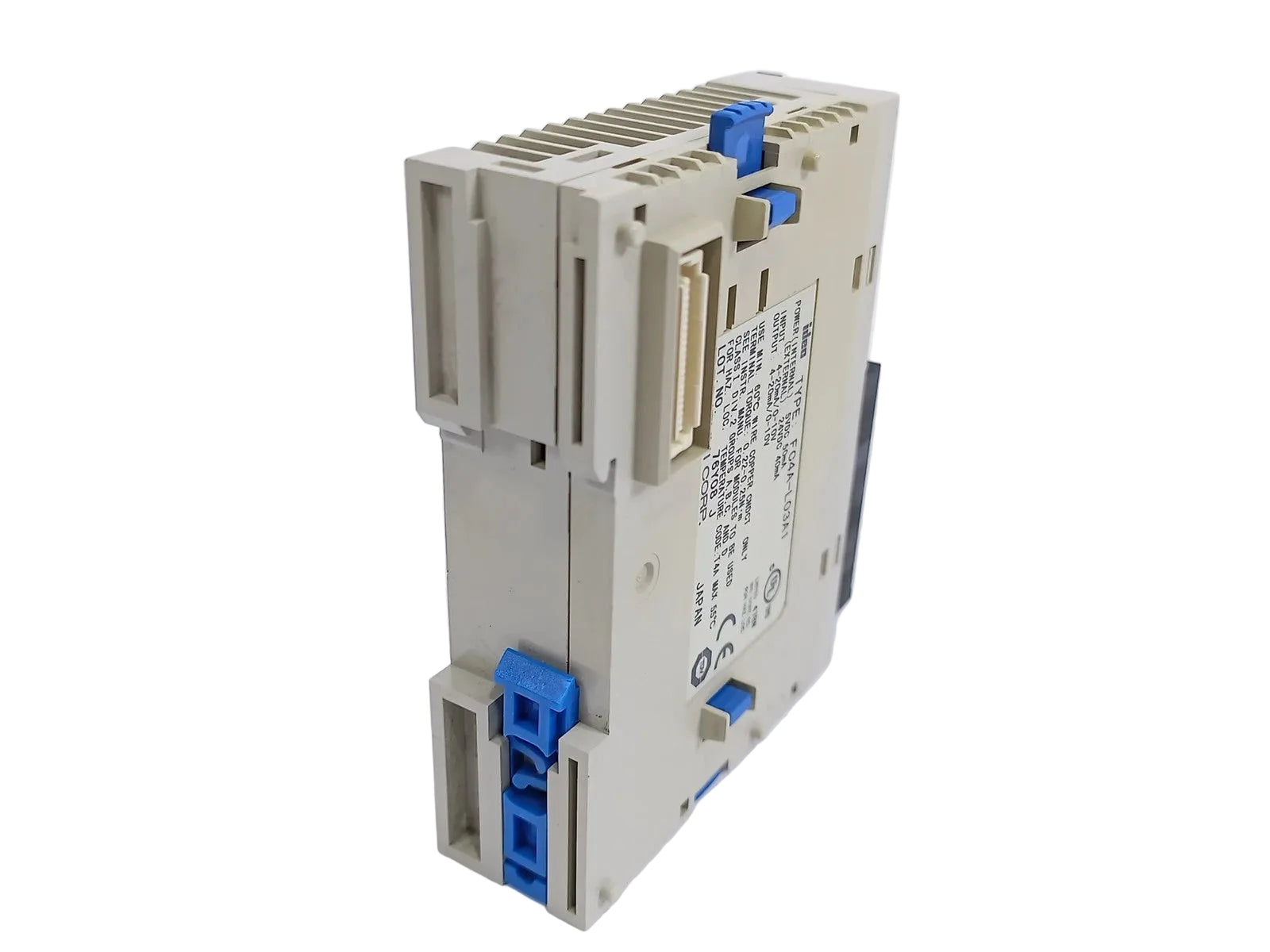

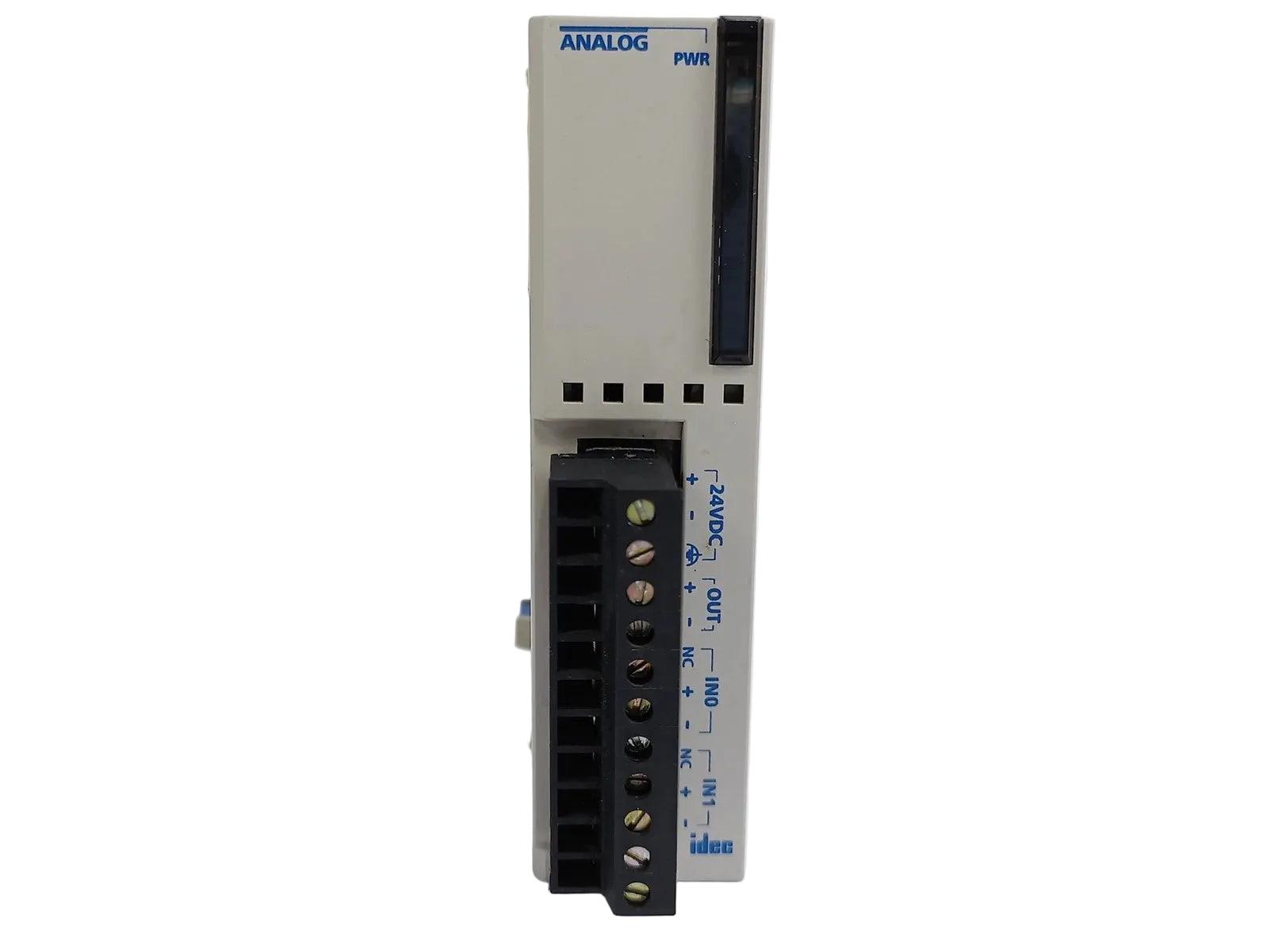

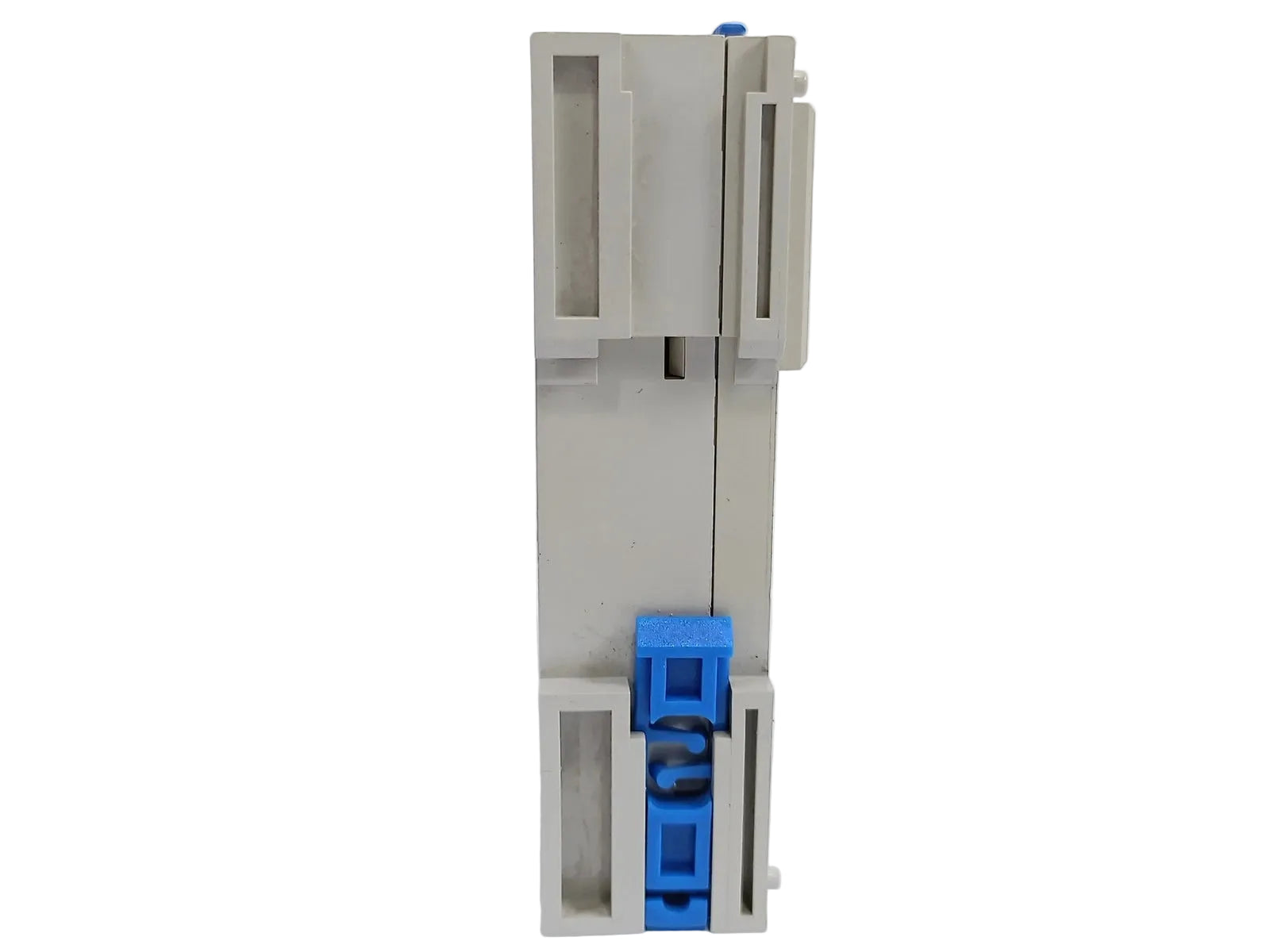

IDEC FC4A-L03A1 MicroSmart Analog I/O Module 2-Input 1-Output
- Regular price
- $649.00
- Sale price
- $649.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC4A-L03A1
Description
The IDEC FC4A-L03A1 is an analog I/O module for the MicroSmart FC4A PLC series. It provides two analog inputs and one analog output, supporting 0–10 VDC and 4–20 mA signals for monitoring and controlling analog process values.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Industrial Automation |
| Part Number | FC4A-L03A1 |
| Subcategory | Analog I/O Modules |
| Series | MicroSmart FC4A |
| Module Type | Analog I/O Module |
| Power Supply | 24 VDC |
| Allowable Voltage Range | 20.4–28.8 VDC |
| Analog Inputs | 2 |
| Input Signal Types | 0–10 VDC, 4–20 mA DC |
| Analog Output | 1 |
| Output Range | 0–10 VDC |
| Input Resolution | 12-bit / 4096 increments |
| Input Impedance | 1 MΩ minimum voltage; 10 Ω current |
| Connector | MC1.5/11-G-3.81BK, Phoenix Contact |
| Terminal Type | Screw terminal |
| Connector Durability | 100 insertion/removal cycles minimum |
| External Current Draw | 45 mA at 24 VDC |
| Weight | 100 g |
Information About FC4A-L03A1
The FC4A-L03A1 belongs to the IDEC MicroSmart FC4A analog I/O module family and is designed for integration with compatible FC4A PLC systems. The module operates from a 24 VDC supply with an allowable range of 20.4–28.8 VDC. Its two analog input channels accept voltage signals from 0–10 VDC or current signals from 4–20 mA, while the analog output supports 0–10 VDC. The module uses a Phoenix Contact MC1.5/11-G-3.81BK motherboard connector and provides 12-bit analog input resolution.
Key Features:
- Analog I/O Configuration: Provides two analog inputs and one analog output.
- Voltage Inputs: Supports 0–10 VDC analog input signals.
- Current Inputs: Supports 4–20 mA analog input signals.
- Analog Output: Provides a 0–10 VDC output range.
- 24 VDC Supply: Operates from a nominal 24 VDC power source.
- 12-Bit Resolution: Converts analog input signals using 4096 digital increments.
- PLC Integration: Designed for use with IDEC MicroSmart FC4A PLC systems.
- Screw Terminal Connection: Uses an FC4A-PMT11P terminal block and Phoenix Contact motherboard connector.
The FC4A-L03A1 delivers the reliability and precision required for analog signal monitoring and control in PLC-based automation systems.
