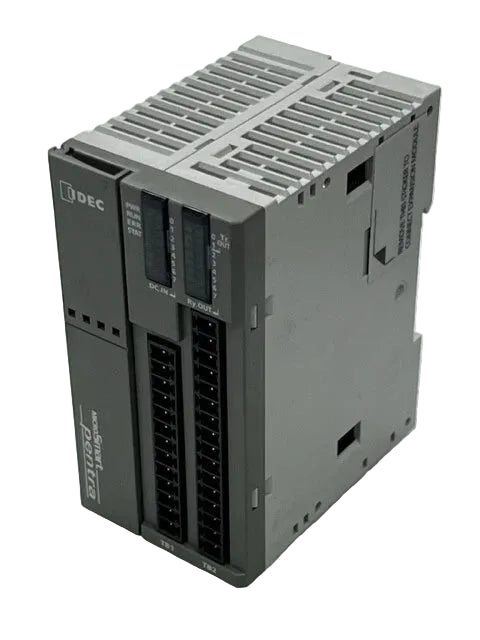

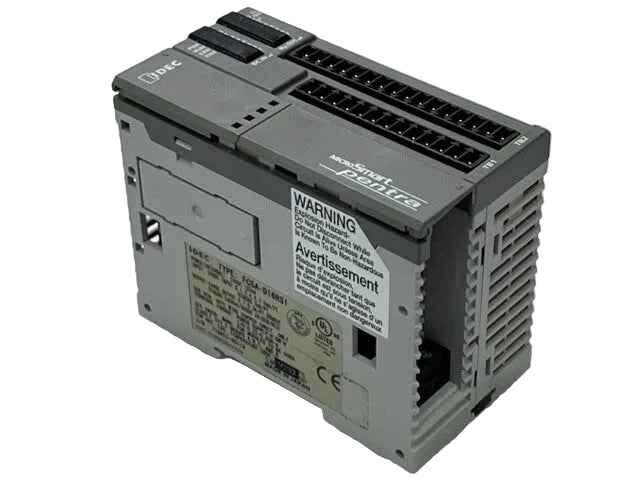

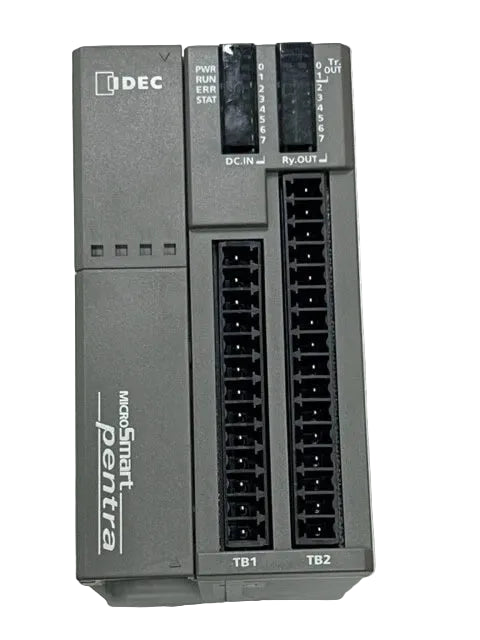

IDEC FC5A-D16RS1 MicroSmart Pentra 16-I/O 24VDC Slim PLC CPU Module
- Regular price
- $609.00
- Sale price
- $609.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC5A-D16RS1
Description
The IDEC FC5A-D16RS1 is a 16-I/O MicroSmart Pentra slim PLC CPU module with 8 inputs and 8 outputs. It operates from a 24 VDC supply and combines transistor source outputs with a compact programmable controller design for industrial automation. The unit is suitable for machine control, equipment automation, and PLC-based control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | PLC / Programmable Logic Controller |
| Part Number | FC5A-D16RS1 |
| Subcategory | Micro PLC |
| Series | MicroSmart Pentra FC5A |
| Module Type | Slim CPU Module |
| Total I/O Points | 16 |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Output Type | Transistor Source |
| Rated Supply Voltage | 24 VDC |
| Allowable Supply Voltage | 20.4–26.4 VDC |
| Rated Output Voltage | 24 VDC |
| Rated Output Current | 0.3 A per output point |
| Maximum Current per Common Line | 1 A |
| Program Capacity | 62,400 bytes / 10,400 steps |
| User Program Storage | EEPROM |
| Operating Temperature | 0 to 55°C |
| Mounting | DIN Rail / Panel |
| Dimensions | 90 × 70 × 14.6 mm |
| Weight | 90 g |
Information About FC5A-D16RS1
The FC5A-D16RS1 is part of the IDEC MicroSmart Pentra FC5A series of slim CPU modules. It provides 16 total I/O points, with 8 inputs and 8 transistor source outputs rated for 24 VDC operation. The controller includes EEPROM user-program storage, supports expansion I/O modules, and provides communication capabilities including Modbus functions. Its compact 90 × 70 × 14.6 mm form factor supports DIN-rail or panel installation in industrial control cabinets.
Key Features:
- 16 I/O Points: Provides 8 inputs and 8 transistor source outputs in one compact CPU module.
- 24 VDC Supply: Operates from a 24 VDC power source with an allowable range of 20.4–26.4 VDC.
- Transistor Source Outputs: Eight source-type transistor outputs provide 24 VDC switching for connected loads.
- MicroSmart Pentra Series: Belongs to the FC5A family of compact programmable logic controllers.
- Program Memory: Uses EEPROM for non-volatile storage of the user control program.
- I/O Expansion: Supports expansion modules for increasing the number of available I/O points.
- Communication Functions: Supports maintenance and user communication, including Modbus ASCII/RTU functions.
- Compact Slim Design: Measures approximately 90 × 70 × 14.6 mm for installation where panel space is limited.
The FC5A-D16RS1 delivers the reliability and precision required for programmable machine control, industrial automation, and compact PLC applications.
