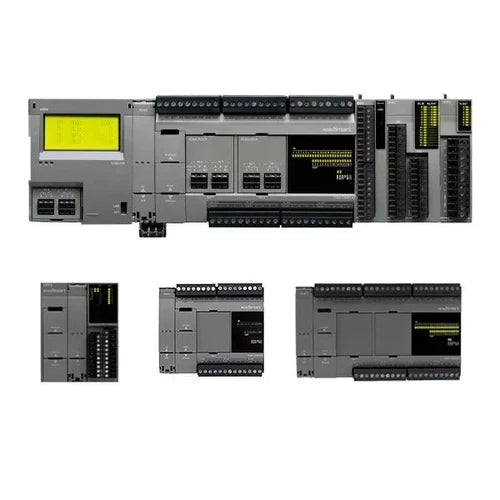

IDEC FC6A-C16R1CE MicroSmart 16-I/O 24VDC Relay PLC CPU Module
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC6A-C16R1CE
Description
The IDEC FC6A-C16R1CE is a 16-I/O MicroSmart PLC CPU module with 24 VDC operation and relay outputs. It combines 9 digital inputs and 7 relay outputs with built-in Ethernet, serial communication, and SD memory interfaces. The controller is designed for machine automation, process control, and industrial equipment applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | PLC / Programmable Logic Controller |
| Part Number | FC6A-C16R1CE |
| Subcategory | Micro PLC |
| Series | FC6A MicroSmart |
| Product Type | CPU Module |
| Total Digital I/O | 16 |
| Digital Inputs | 9 |
| Digital Outputs | 7 |
| Output Type | Relay |
| Rated Supply Voltage | 24 VDC |
| Allowable Supply Voltage | 20.4–28.8 VDC |
| Maximum Power Consumption | 3.36 W / 140 mA at 24 VDC |
| Program Capacity | 384 KB / 48,000 steps |
| Analog Input | 1 × 0–10 VDC |
| Ethernet Port | 1 |
| Serial Interface | RS232C / RS485, user selectable |
| USB Port | USB Mini-B |
| SD Memory Port | Yes |
| Communication Protocols | Modbus TCP / Modbus RTU |
| High-Speed Counter | 100 kHz |
| Operating Temperature | −25°C to +65°C |
| Protection Rating | IP20 |
| Mounting | DIN Rail / Panel |
| Weight | 150 g |
Information About FC6A-C16R1CE
The FC6A-C16R1CE is part of the IDEC FC6A MicroSmart all-in-one PLC series and serves as a compact CPU module for programmable control systems. It provides 384 KB of program capacity and supports ladder and script programming for control applications. Integrated Ethernet, user-selectable RS232C/RS485, Modbus TCP/RTU, USB Mini-B, and SD memory functions provide multiple options for programming, communication, and data handling. The module also supports I/O expansion, data logging, web server functions, and installation in industrial control panels.
Key Features:
- 16-I/O Configuration: Provides 9 digital inputs and 7 relay outputs in a compact CPU module.
- 24 VDC Operation: Designed for a 24 VDC control power supply.
- Relay Outputs: Seven integrated relay outputs provide switching capability for connected control loads.
- Ethernet Interface: Built-in Ethernet port supports network communication and automation connectivity.
- Serial Communication: Integrated RS232C/RS485 interface is user selectable.
- Modbus Support: Supports Modbus TCP and Modbus RTU communication protocols.
- SD Memory Port: Integrated SD memory interface supports data storage and data logging functions.
- Expansion Capability: Supports expansion modules for larger digital and analog I/O configurations.
The FC6A-C16R1CE delivers the reliability and precision required for industrial PLC control, machine automation, and process control applications.
