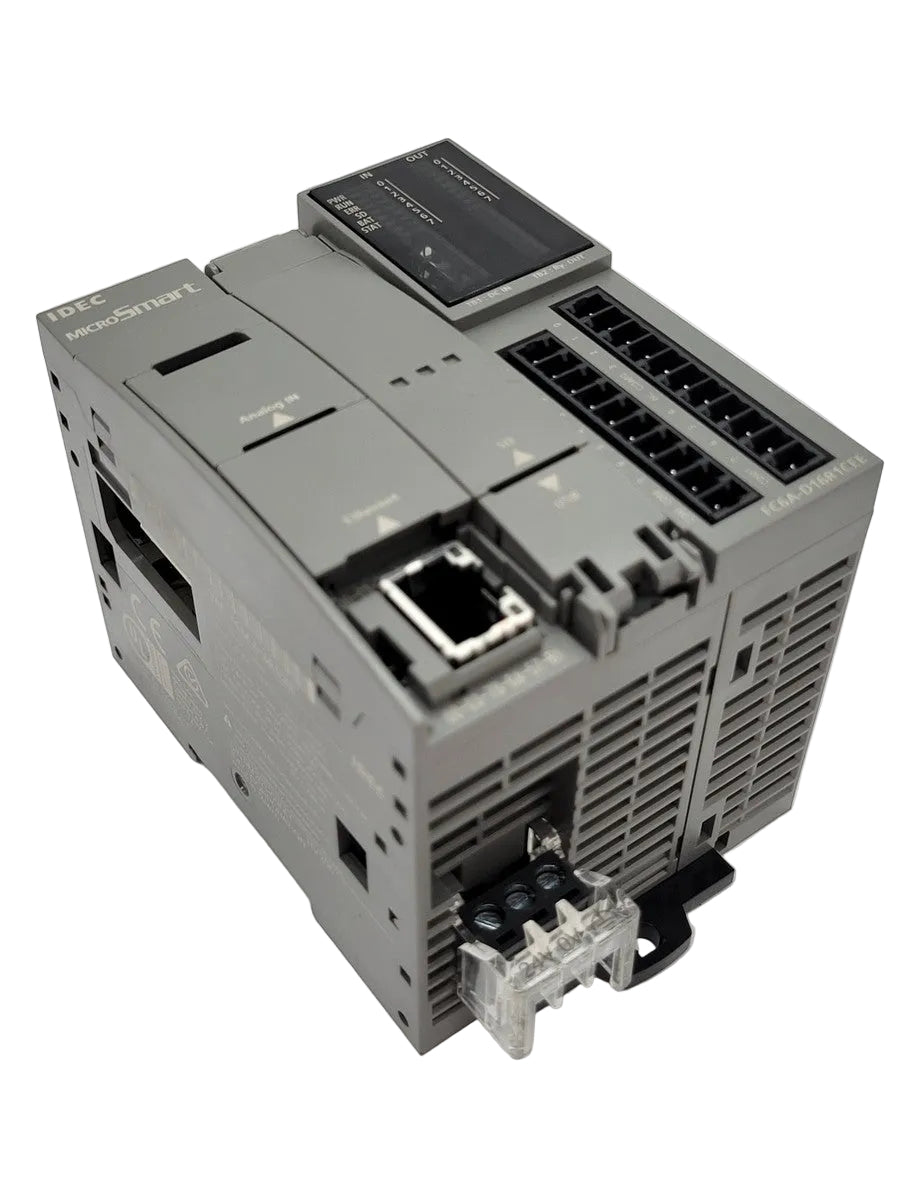

IDEC FC6A-D16R1CEE MicroSmart 16-I/O PLC CPU Module with Relay Outputs
- Regular price
- $549.00
- Sale price
- $549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC6A-D16R1CEE
Description
The IDEC FC6A-D16R1CEE is a MicroSmart Plus CPU module with 16 embedded digital I/O points for PLC-based industrial automation and machine control. It provides eight digital inputs and eight relay outputs, operates from a 24 V DC supply, and includes integrated Ethernet, USB, and Bluetooth communication capabilities. The module is designed for applications requiring programmable control, network communication, and expandable I/O.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | PLC Components |
| Part Number | FC6A-D16R1CEE |
| Subcategory | PLC CPU Modules |
| Series | FC6A MicroSmart |
| Product Type | CPU Module |
| Embedded Digital I/O | 16 |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Output Type | Relay |
| Operating Voltage | 24 V DC |
| Allowable Voltage Range | 20.4–28.8 V DC |
| Ethernet Ports | 2 |
| USB Interface | USB Mini-B |
| Communication Protocols | EtherNet/IP, MQTT Sparkplug B, Modbus TCP/RTU, BACnet |
| Program Capacity | 800 KB |
| Analog Input | 1 |
| Analog Input Range | 0–10 V DC |
| High-Speed Counter | Up to 100 kHz |
| Operating Temperature | -25°C to 65°C |
| Protection Rating | IP20 |
| Terminal Type | Screw Terminal |
| Maximum Digital I/O | 2,044 points |
| Maximum Analog I/O | 511 points |
| Maximum Expansion Modules | 63 |
| Certifications | CE, UL, TUV |
| Hazardous Location Rating | Class I Division 2 |
| Weight | 0.64 lb |
Information About FC6A-D16R1CEE
The FC6A-D16R1CEE is part of the IDEC FC6A MicroSmart PLC series and combines a CPU with integrated digital I/O in a compact controller configuration. Its communication architecture supports Ethernet-based protocols including EtherNet/IP, MQTT Sparkplug B, Modbus TCP/RTU, and BACnet for integration with industrial networks and automation systems. The controller provides 800 KB of program capacity, an SD memory interface, USB connectivity, and support for additional expansion modules. The FC6A platform can be expanded to accommodate larger digital and analog I/O configurations for more complex control installations.
Key Features:
- 16 Embedded I/O Points: Provides 16 integrated digital I/O points for direct connection to field devices.
- 8 Digital Inputs: Includes eight digital input channels for receiving signals from switches, sensors, and other control devices.
- 8 Relay Outputs: Provides eight relay output channels for switching compatible external loads.
- 24 V DC Operation: Designed for operation from a 24 V DC control power supply.
- Dual Ethernet Ports: Includes two Ethernet interfaces for PLC networking and industrial communication.
- Multiple Protocols: Supports EtherNet/IP, MQTT Sparkplug B, Modbus TCP/RTU, and BACnet communication.
- 800 KB Program Capacity: Provides internal memory capacity for PLC programs and control applications.
- Expansion Capability: Supports additional expansion modules and larger I/O configurations for scalable automation systems.
The FC6A-D16R1CEE delivers the reliability and precision required for PLC-based machine control, industrial automation, process monitoring, and networked control systems.
