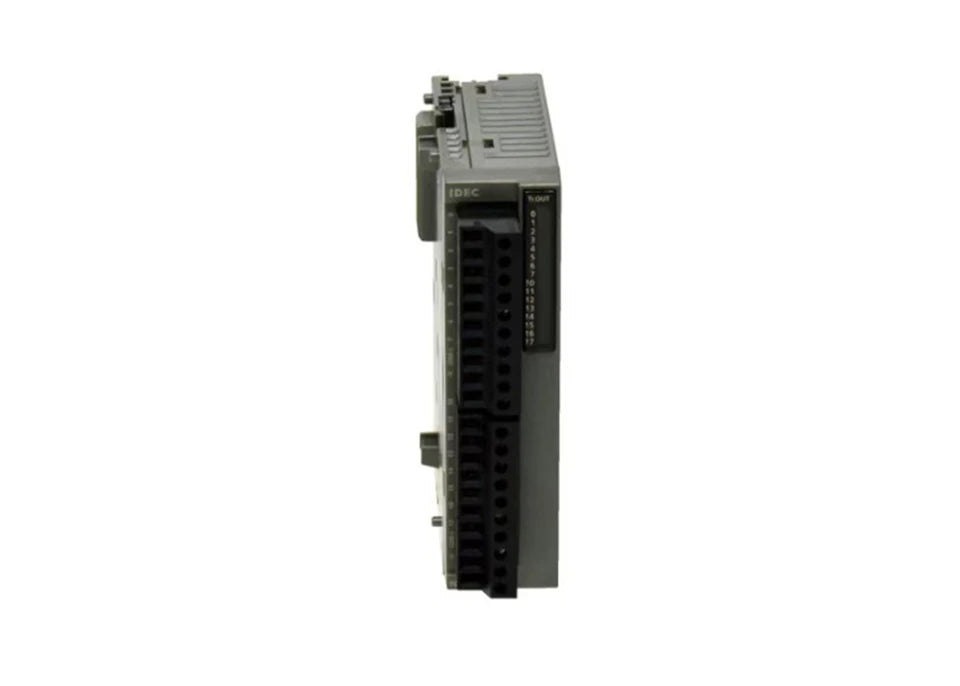

IDEC FC6A-J4CH1Y 4-Channel Isolated Thermocouple Input Expansion Module
- Regular price
- $492.00
- Sale price
- $492.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC6A-J4CH1Y
Description
The IDEC FC6A-J4CH1Y is a four-channel isolated thermocouple input expansion module for the FC6A MicroSmart PLC system. It receives temperature signals from compatible thermocouples and converts them into digital values for PLC monitoring and control applications. The module supports multiple thermocouple types and configurable sampling times.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | PLC Modules |
| Part Number | FC6A-J4CH1Y |
| Subcategory | Thermocouple Input Modules |
| Series | FC6A MicroSmart |
| Product Type | Thermocouple Input Expansion Module |
| Number of Inputs | 4 |
| Input Type | Thermocouple |
| Supported Thermocouple Types | K, J, R, S, B, E, T, N, C |
| Conversion Method | Sigma-Delta ADC |
| Input Configuration | Differential |
| Sampling Time | 30 ms or 120 ms |
| Input Isolation | Optocoupler-isolated |
| Terminal Type | Screw Terminals |
| Operating Temperature | -25°C to +65°C |
| Protection Rating | IP20 |
| Ethernet Ports | 1 |
| USB Port | USB Type-A |
| SD Card Slot | Yes |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Protection Rating | IP66F / IP67F |
| Mounting Type | Panel Mount |
| Body / Bezel Color | Black |
| Maximum Expansion Modules | 2 |
| Dimensions | 167.2 × 134.7 × 54.4 mm |
| Weight | 0.24 lb |
Information About FC6A-J4CH1Y
The FC6A-J4CH1Y is an analog input expansion module from the IDEC FC6A MicroSmart PLC series, designed for thermocouple temperature measurement. It provides four isolated thermocouple input channels and supports Type K, J, R, S, B, E, T, N, and C thermocouples. The module uses a sigma-delta ADC and differential input processing to convert temperature signals into digital data. Sampling time can be configured to 30 ms or 120 ms using IDEC programming software.
Key Features:
- Four Thermocouple Inputs: Provides four channels for connecting compatible thermocouple sensors.
- Isolated Inputs: Provides electrical isolation between the thermocouple input channels.
- Multiple Thermocouple Types: Supports K, J, R, S, B, E, T, N, and C thermocouple types.
- Sigma-Delta ADC: Converts analog thermocouple signals into digital measurement data.
- Differential Input: Uses differential signal processing for thermocouple measurements.
- Selectable Sampling Time: Supports 30 ms or 120 ms sampling settings.
- Screw Terminals: Provides screw-type terminals for field wiring connections.
- PLC Expansion: Designed for integration with IDEC FC6A MicroSmart PLC systems.
The FC6A-J4CH1Y delivers the reliability and precision required for industrial temperature monitoring, process measurement, and PLC-based automation control.
