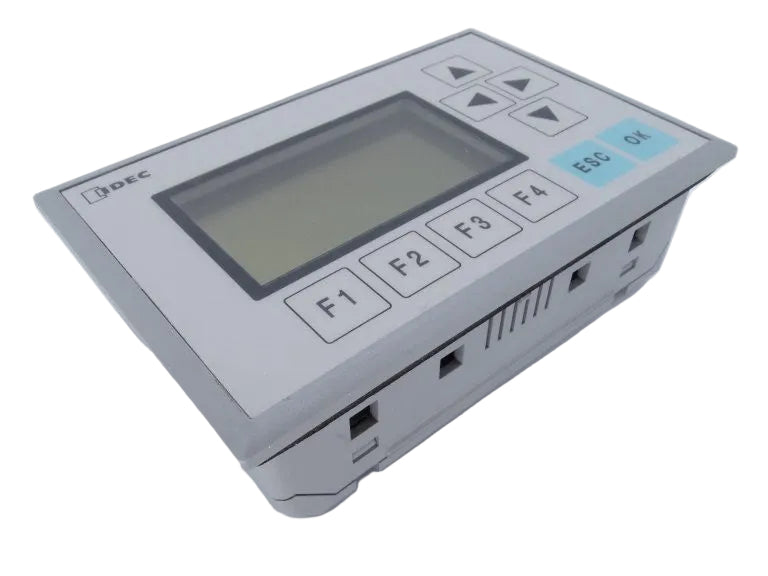

IDEC FL1E-RD1 SmartRelay Text Display with 128 × 64 LCD and Keypad
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FL1E-RD1
Description
The IDEC FL1E-RD1 is a dedicated text display for the FL1E SmartRelay automation system. It provides a 128 × 64 FSTN graphic LCD, 10-key membrane keypad, LED backlight, and serial communication for local monitoring and operator input.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Industrial Automation |
| Part Number | FL1E-RD1 |
| Subcategory | SmartRelay Text Displays |
| Series | FL1E SmartRelay |
| Product Type | Text Display |
| Display Type | FSTN Graphic LCD |
| Display Resolution | 128 × 64 pixels |
| Keypad | 10-key membrane keypad |
| Backlight | LED |
| Rated Voltage | 12 VDC, 24 VAC/DC |
| Allowable Voltage Range | 10.2–28.8 VDC; 20.4–26.4 VAC |
| Display Cable | 2.5 m supplied |
| Maximum Cable Extension | Up to 10 m |
| Dimensions | 128.2 × 86 × 38.7 mm |
| Weight | 220 g |
Information About FL1E-RD1
The FL1E-RD1 is part of the IDEC FL1E SmartRelay accessory series and is designed to operate as an external text display for compatible SmartRelay base modules. It supports 12 VDC and 24 VAC/DC power and communicates with the controller at a 19,200-baud data transmission rate. The display uses a 128 × 64 pixel FSTN graphic LCD with an LED backlight and includes a 10-key membrane keypad. The supplied 2.5 m display cable connects the unit to the SmartRelay, with extension capability up to 10 m using a 9-pin D-sub extension cable.
Key Features:
- Text Display: Provides dedicated operator information display for IDEC FL1E SmartRelay systems.
- Graphic LCD: Uses a 128 × 64 pixel FSTN graphic display for text and graphical information.
- Membrane Keypad: Includes 10 keys for local operator commands and navigation.
- LED Backlight: Provides illuminated display operation for improved screen visibility.
- Flexible Power: Supports 12 VDC and 24 VAC/DC power supplies.
- Serial Communication: Provides data communication with the connected SmartRelay at 19,200 baud.
- Cable Included: Supplied with a 2.5 m text display cable for controller connection.
- Panel Protection: Features an IP65-rated operator-facing enclosure for industrial installation.
The FL1E-RD1 delivers the reliability and precision required for local operator monitoring and control of SmartRelay automation systems.
