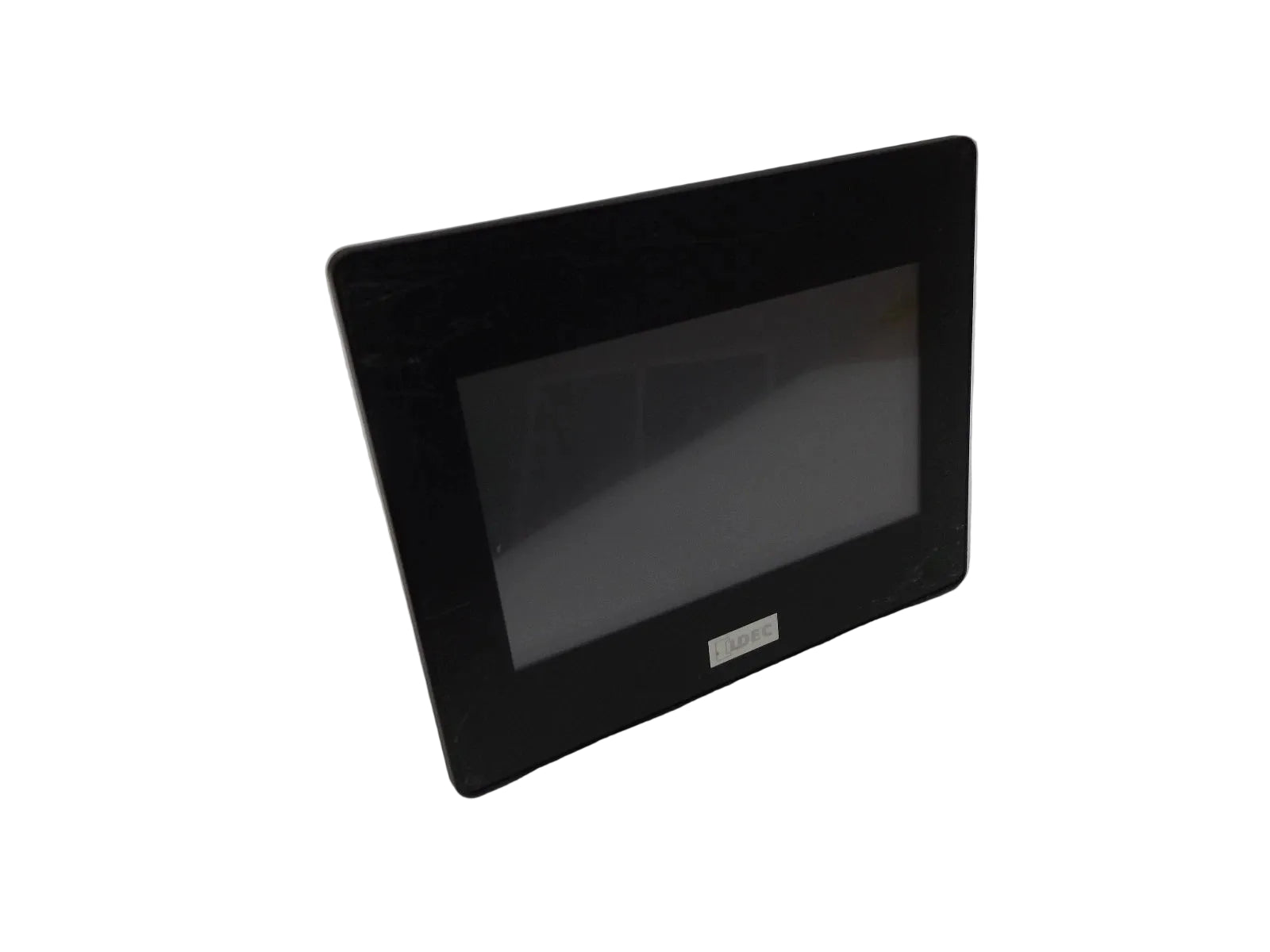

IDEC HG1G-4VT22TF-B 4.3-Inch Compact Touchscreen HMI Panel
- Regular price
- $565.00
- Sale price
- $565.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HG1G-4VT22TF-B
Description
IDEC HG1G-4VT22TF-B is a compact 4.3-inch touchscreen HMI with a 65,536-color TFT LCD and 480 × 272 pixel resolution. It provides Ethernet, serial, and USB connectivity for industrial operator-interface, monitoring, and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Industrial Automation |
| Part Number | HG1G-4VT22TF-B |
| Subcategory | HMI Touchscreen Panels |
| Product Type | 4.3-Inch HMI |
| Display Type | TFT Color LCD |
| Display Size | 4.3 in |
| Resolution | 480 × 272 pixels |
| Brightness | 800 cd/m² |
| Rated Power Voltage | 12–24 VDC |
| Allowable Voltage Range | 10.2–28.8 VDC |
| Maximum Power Consumption | 8 W |
| Communication | Serial, Ethernet, USB |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| NEMA/Type Rating | Type 4X, Type 13 |
| Dimensions | 128 × 102 × 31.8 mm |
| Weight | 0.66 lb |
Information About HG1G-4VT22TF-B
The HG1G-4VT22TF-B belongs to IDEC’s HG1G Compact HMI Series and uses an analog resistive touchscreen with a black bezel. The unit supports up to four communication protocols simultaneously and includes remote monitoring, control, and FTP server functionality. It operates from a 12–24 VDC supply and supports both portrait and landscape mounting. Its compact panel-mount construction provides IP66F/IP67F, Type 4X, Type 13, and Class I Division 2 protection.
Key Features:
- Display Size: 4.3-inch TFT color LCD with 65,536 colors.
- Resolution: 480 × 272 pixels for graphical machine and process interfaces.
- Touchscreen: Analog resistive touchscreen for operator input.
- Brightness: 800 cd/m² display brightness for high-visibility operation.
- Communication: Provides serial, Ethernet, and USB interfaces.
- Protocol Support: Supports up to four communication protocols simultaneously.
- Remote Access: Supports remote monitoring and control through network connectivity.
- Environmental Protection: Rated IP66F/IP67F, Type 4X, Type 13, and Class I Division 2.
The HG1G-4VT22TF-B delivers the reliability and precision required for industrial operator interfaces, machine monitoring, and control applications.
Description
IDEC HG1G-4VT22TF-B is a compact 4.3-inch touchscreen HMI with a 65,536-color TFT LCD and 480 × 272 pixel resolution. It provides Ethernet, serial, and USB connectivity for industrial operator-interface, monitoring, and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Industrial Automation |
| Part Number | HG1G-4VT22TF-B |
| Subcategory | HMI Touchscreen Panels |
| Product Type | 4.3-Inch HMI |
| Display Type | TFT Color LCD |
| Display Size | 4.3 in |
| Resolution | 480 × 272 pixels |
| Brightness | 800 cd/m² |
| Rated Power Voltage | 12–24 VDC |
| Allowable Voltage Range | 10.2–28.8 VDC |
| Maximum Power Consumption | 8 W |
| Communication | Serial, Ethernet, USB |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| NEMA/Type Rating | Type 4X, Type 13 |
| Dimensions | 128 × 102 × 31.8 mm |
| Weight | 0.66 lb |
Information About HG1G-4VT22TF-B
The HG1G-4VT22TF-B belongs to IDEC’s HG1G Compact HMI Series and uses an analog resistive touchscreen with a black bezel. The unit supports up to four communication protocols simultaneously and includes remote monitoring, control, and FTP server functionality. It operates from a 12–24 VDC supply and supports both portrait and landscape mounting. Its compact panel-mount construction provides IP66F/IP67F, Type 4X, Type 13, and Class I Division 2 protection.
Key Features:
- Display Size: 4.3-inch TFT color LCD with 65,536 colors.
- Resolution: 480 × 272 pixels for graphical machine and process interfaces.
- Touchscreen: Analog resistive touchscreen for operator input.
- Brightness: 800 cd/m² display brightness for high-visibility operation.
- Communication: Provides serial, Ethernet, and USB interfaces.
- Protocol Support: Supports up to four communication protocols simultaneously.
- Remote Access: Supports remote monitoring and control through network connectivity.
- Environmental Protection: Rated IP66F/IP67F, Type 4X, Type 13, and Class I Division 2.
The HG1G-4VT22TF-B delivers the reliability and precision required for industrial operator interfaces, machine monitoring, and control applications.
