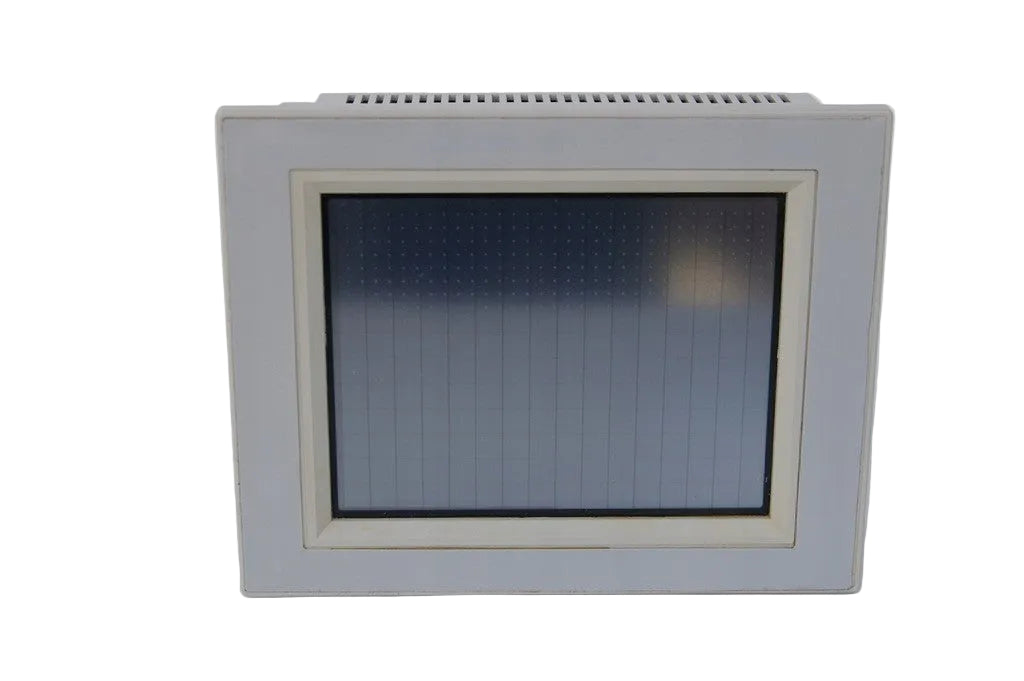

IDEC HG2F-SS22VCF 5.7-Inch Color STN Touchscreen Operator Interface
- Regular price
- $1,197.00
- Sale price
- $1,197.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HG2F-SS22VCF
Description
The IDEC HG2F-SS22VCF is a 5.7-inch color touchscreen operator interface designed for industrial machine monitoring and control. It features a 256-color STN LCD with 320 × 240 pixel resolution, resistive touch operation, and serial communication interfaces. The unit is intended for panel-mounted HMI applications in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | HMI / MMI / OIT |
| Part Number | HG2F-SS22VCF |
| Subcategory | Operator Interface |
| Series | HG2F |
| Display Type | Color STN LCD |
| Screen Size | 5.7 in |
| Display Resolution | 320 × 240 pixels |
| Display Colors | 256 colors |
| Touch Technology | Touchscreen |
| Primary Serial Interface | RS-232C / RS-485 / RS-422 |
| Secondary Serial Interface | RS-232C |
| Compact Flash Interface | Yes |
| Rated Supply Voltage | 24 VDC |
| Power Consumption | 10 W maximum |
| Operating Temperature | 0°C to 50°C |
| Protection Rating | IP65 |
| Bezel Color | Light Gray |
| Mounting Type | Panel Mount |
| Weight | Approx. 2.01 lb |
Information About HG2F-SS22VCF
The HG2F-SS22VCF is part of the IDEC HG2F SmartTouch series of industrial operator interfaces. It uses a 5.7-inch color STN LCD and a touchscreen interface for displaying operating information and accepting operator commands. The model includes an RS-232C maintenance interface, an RS-232C/RS-485/RS-422 communication interface, and a Compact Flash interface for supported applications. The unit operates from a 24 VDC supply and is designed for integration into industrial control panels and automation equipment.
Key Features:
- 5.7-Inch Color Display: Color STN LCD provides a 320 × 240 pixel display for industrial HMI applications.
- 256-Color Display: Supports 256-color graphical screen presentation.
- Touchscreen Operation: Resistive touchscreen provides direct operator interaction with displayed controls.
- Serial Communication: Supports RS-232C, RS-485, and RS-422 communication through the primary interface.
- Maintenance Interface: Provides a secondary RS-232C interface for compatible maintenance and communication functions.
- Compact Flash Interface: Includes a CF card interface for supported data and application storage functions.
- 24 VDC Operation: Designed for industrial control systems using a nominal 24 VDC supply.
- IP65 Protection: Front panel provides IP65 protection for panel-mounted industrial installations.
The HG2F-SS22VCF delivers the reliability and precision required for industrial machine monitoring, operator control, and HMI applications.
