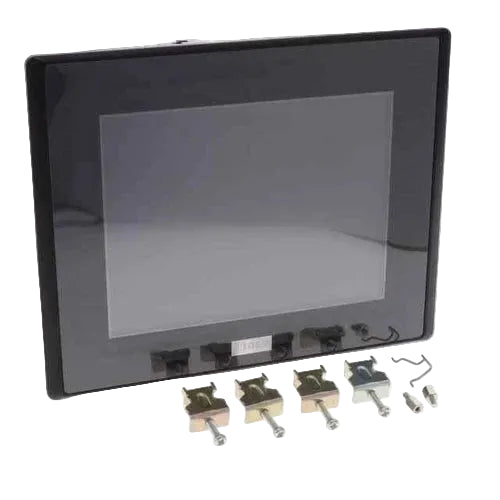

IDEC HG2G-V5FT22TF-B 5.7-Inch Color TFT High-Performance Touchscreen HMI
- Regular price
- $1,189.00
- Sale price
- $1,189.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HG2G-V5FT22TF-B
Description
The IDEC HG2G-V5FT22TF-B is a 5.7-inch high-performance touchscreen HMI with a color TFT LCD and 640 × 480 pixel resolution. It provides Ethernet, USB, and serial communication capabilities for monitoring and controlling industrial equipment. The black-bezel unit is designed for panel-mounted automation applications and supports operation from 20.4–28.8 VDC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | HMI / MMI / OIT |
| Part Number | HG2G-V5FT22TF-B |
| Subcategory | Operator Interface |
| Series | HG2G High Performance |
| Display Type | Color TFT LCD |
| Screen Size | 5.7 in |
| Display Resolution | 640 × 480 pixels |
| Color Depth | 65,536 colors |
| Effective Display Area | 115.2 × 86.4 mm |
| Brightness | 800 cd/m² |
| Backlight | White LED |
| Backlight Life | Minimum 100,000 hours |
| Touch Technology | Analog resistive membrane |
| User Memory | 56 MB |
| Supply Voltage | 24 VDC |
| Allowable Voltage Range | 20.4–28.8 VDC |
| Maximum Power Consumption | 18 W |
| Ethernet Ports | 1 |
| USB Port | USB Type-A |
| SD Card Slot | Yes |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Protection Rating | IP66F / IP67F |
| Mounting Type | Panel Mount |
| Body / Bezel Color | Black |
| Maximum Expansion Modules | 2 |
| Dimensions | 167.2 × 134.7 × 54.4 mm |
| Weight | 800 g |
Information About HG2G-V5FT22TF-B
The HG2G-V5FT22TF-B belongs to the IDEC HG2G high-performance HMI series and uses a 65,536-color TFT display with an analog resistive touch interface. The unit includes 56 MB of user memory, one Ethernet port, USB Type-A connectivity, and an SD card slot for data and application functions. Its web server, email notification, and FTP server/client functions provide additional options for remote monitoring, alerts, and maintenance. The HMI is designed for industrial environments from -20°C to +60°C and provides IP66F/IP67F protection when properly panel mounted.
Key Features:
- 5.7-Inch TFT Display: Provides a 640 × 480 pixel color display for industrial HMI visualization.
- 65,536 Colors: Supports detailed color-based presentation of machine and process information.
- Resistive Touchscreen: Analog resistive membrane provides direct operator interaction.
- Ethernet Connectivity: One Ethernet port supports network communication and remote functions.
- USB Interface: USB Type-A port provides connectivity for compatible USB devices.
- Remote Monitoring: Integrated web server functionality allows system status to be accessed remotely.
- Maintenance Functions: FTP server/client capability supports applicable data transfer and maintenance operations.
- Environmental Protection: IP66F/IP67F protection and -20°C to +60°C operating temperature support industrial installations.
The HG2G-V5FT22TF-B delivers the reliability and precision required for industrial HMI, machine monitoring, and automation control applications.
