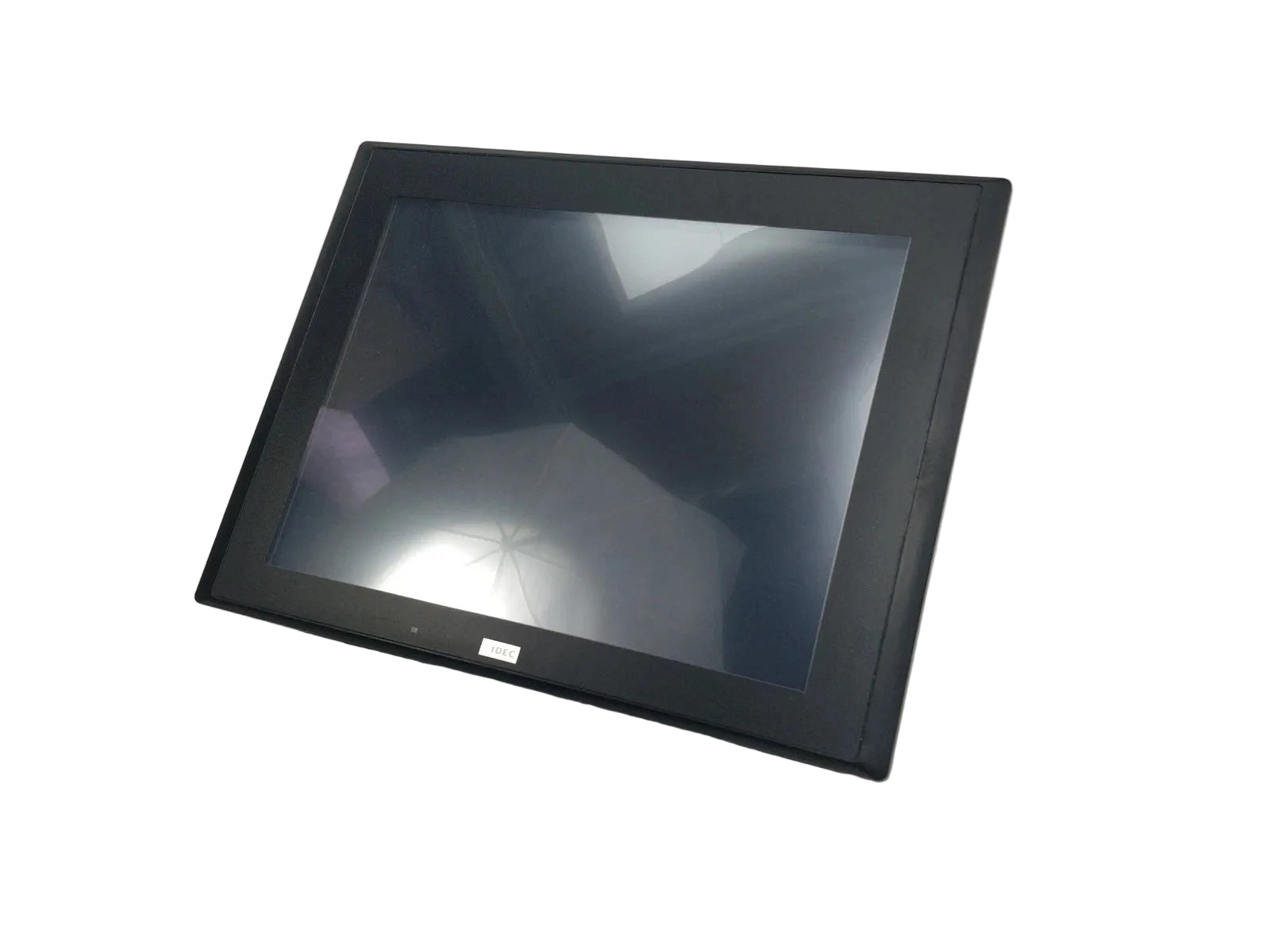

IDEC HG4G-VCXT22MF-B 12.1-Inch High Performance Color TFT HMI
- Regular price
- $2,399.00
- Sale price
- $2,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HG4G-VCXT22MF-B
Description
The IDEC HG4G-VCXT22MF-B is a 12.1-inch high-performance HMI with a color TFT LCD and black bezel for industrial machine monitoring and operator control. It provides 1024 × 768 resolution, touchscreen operation, Ethernet connectivity, multimedia interfaces, and support for multiple communication protocols.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Industrial Automation |
| Part Number | HG4G-VCXT22MF-B |
| Subcategory | HMI Operator Interfaces |
| Product Type | 12.1-Inch HMI |
| Display Type | Color TFT LCD |
| Display Size | 12.1 in |
| Display Resolution | 1024 × 768 pixels |
| Display Brightness | 600 cd/m² |
| Color Depth | 65,536 colors |
| Supply Voltage | 24 VDC |
| Operating Voltage Range | 20.4–28.8 VDC |
| Maximum Power Consumption | 25 W |
| Operating Temperature | -20°C to +60°C |
| Backlight Life | Minimum 100,000 hours |
| Enclosure Rating | Type 4X, Type 12, Type 13 |
| Expansion Modules | Up to 4 |
| Communication Support | FTP, Email, Web Server, BACnet/IP |
| Weight | 4.63 lb |
Information About HG4G-VCXT22MF-B
The HG4G-VCXT22MF-B belongs to IDEC’s HG4G-V High Performance HMI series and is designed for industrial automation interface applications. It operates from a 24 VDC supply with an allowable range of 20.4–28.8 VDC and supports temperatures from -20°C to +60°C. The unit supports FTP, email, web server functions, BACnet/IP, and up to four communication protocols simultaneously. Its multimedia configuration provides video input and audio output, while expansion capability supports up to four expansion modules.
Key Features:
- 12.1-Inch TFT Display: Provides a large color display for industrial visualization and operator control.
- 1024 × 768 Resolution: Provides high-resolution graphical screen presentation.
- 600 cd/m² Brightness: Provides a bright display suitable for industrial HMI environments.
- Ethernet Connectivity: Includes one Ethernet port for network-based automation communication.
- Multimedia Interface: Supports video input and audio output for multimedia HMI functions.
- Multi-Protocol Support: Allows up to four communication protocols to operate simultaneously.
- Expansion Capability: Supports up to four analog and digital I/O expansion modules.
- Environmental Protection: Provides IP67F protection and Type 4X, 12, and 13 enclosure ratings.
The HG4G-VCXT22MF-B delivers the reliability and precision required for industrial HMI monitoring, visualization, and machine control applications.
