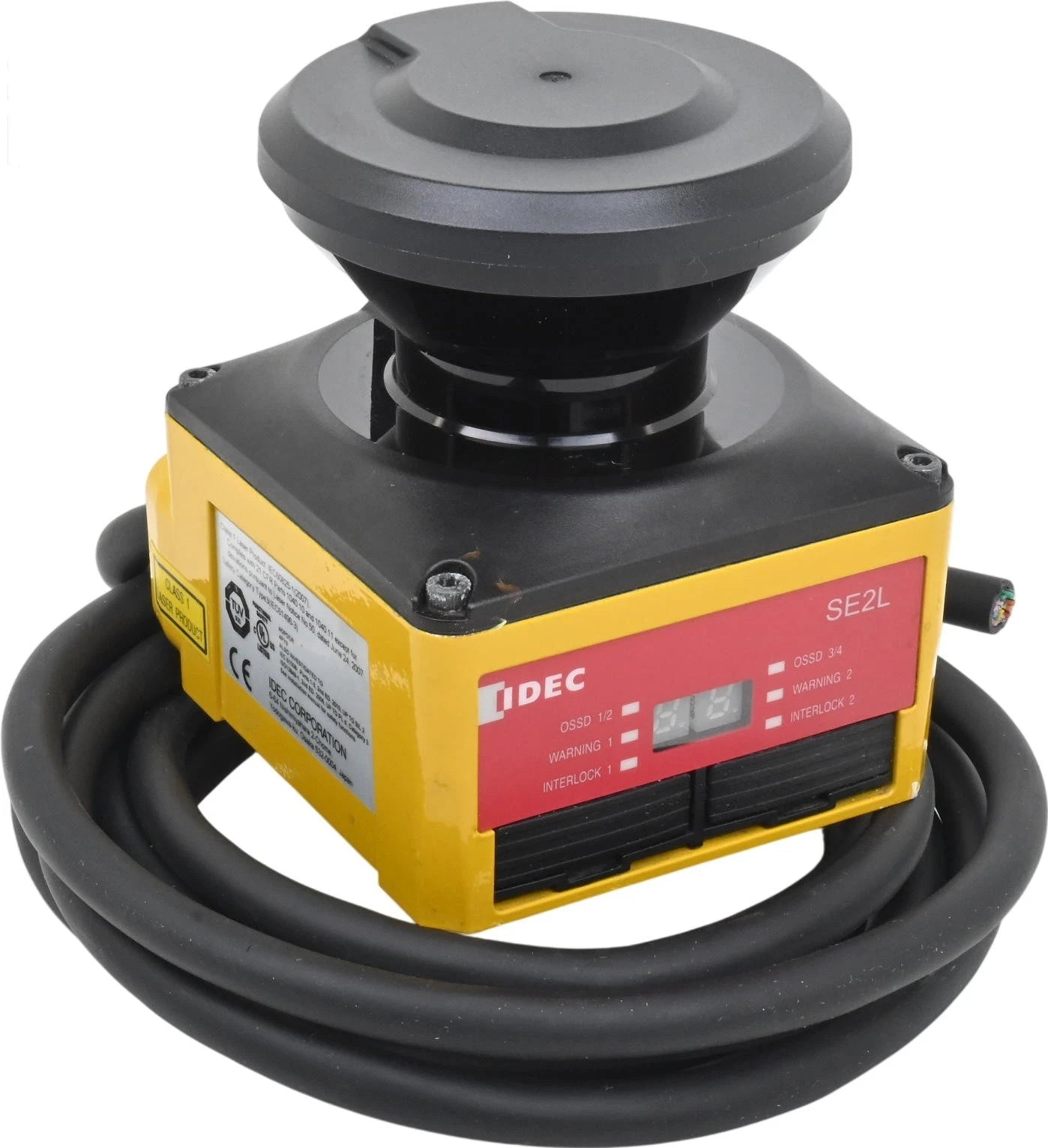

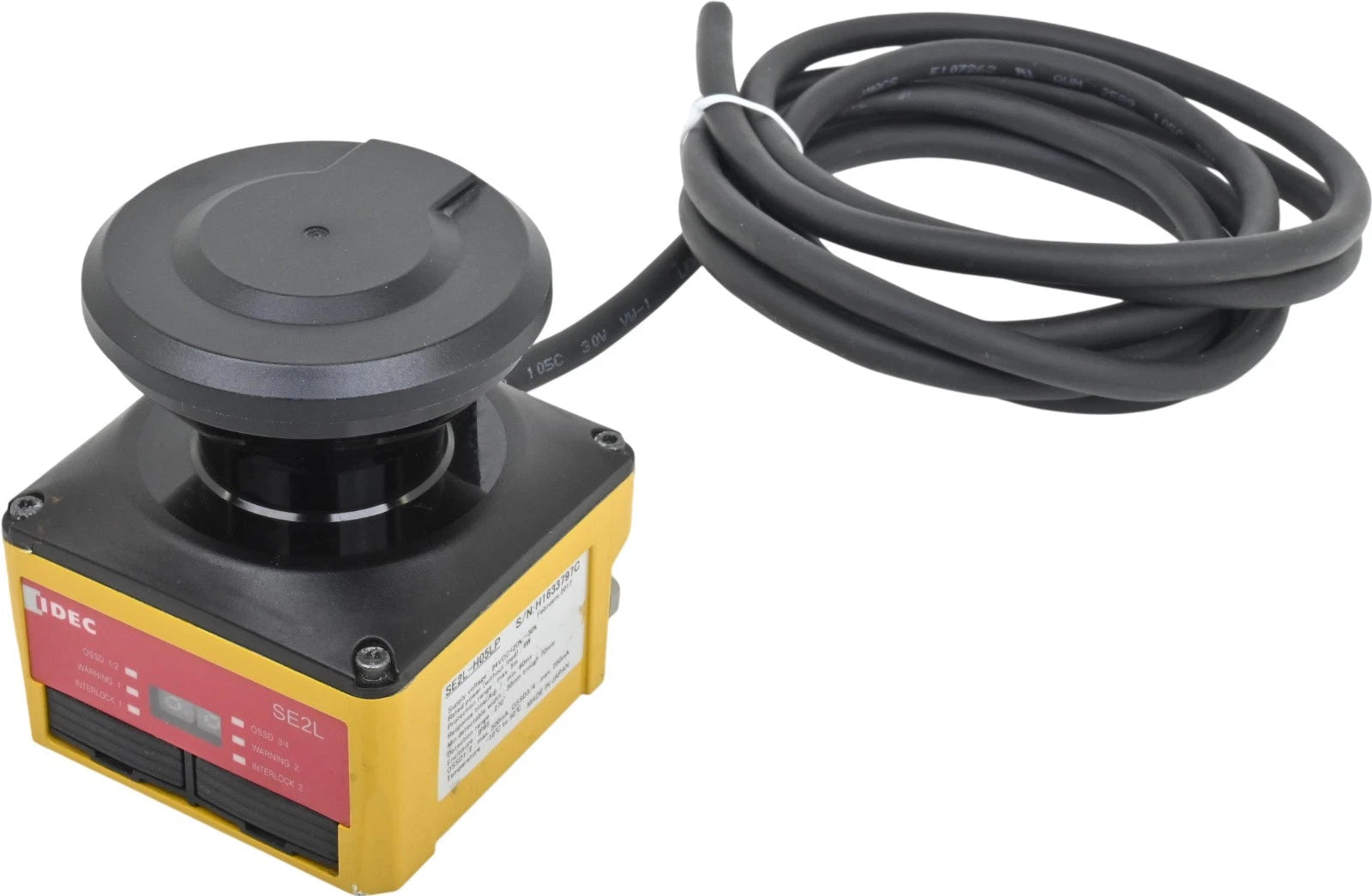

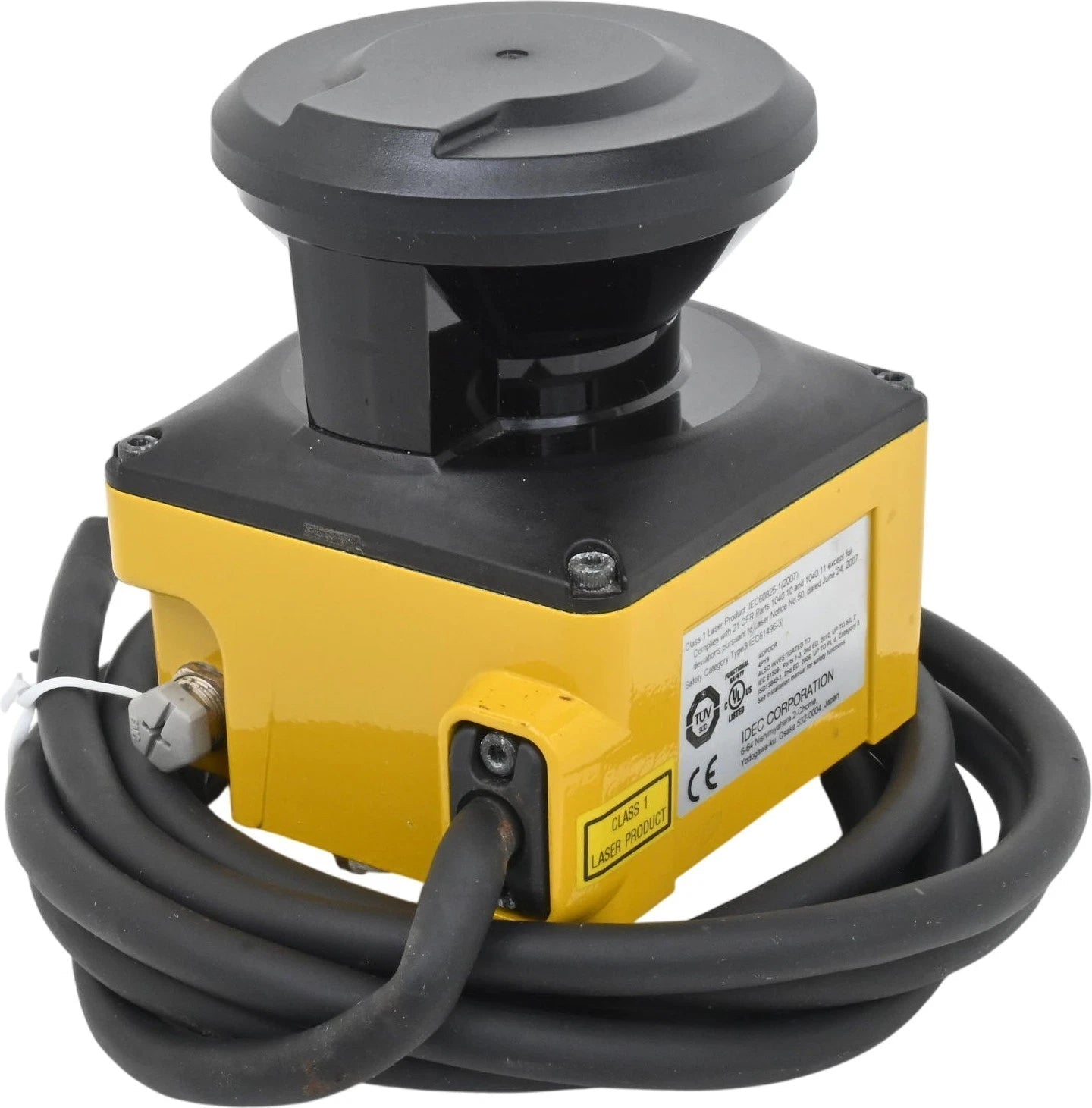

IDEC SE2L-H05LP 270° Safety Laser Scanner for Industrial Machine Guarding
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE2L-H05LP
Description
The IDEC SE2L-H05LP is a safety laser scanner designed to detect personnel and objects entering hazardous areas around industrial machinery. It provides a 270° scanning field with a safety protection range of up to 5 m, making it suitable for machine guarding, automated equipment, and access monitoring applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Safety Components |
| Part Number | SE2L-H05LP |
| Subcategory | Safety Laser Scanners |
| Series | SE2L Series |
| Safety Protection Range | Up to 5 m |
| Warning Range | Up to 20 m |
| Scanning Angle | 270° |
| Laser Wavelength | 905 nm |
| Laser Classification | Class 1 |
| Power Supply | 24 VDC |
| Communication Interface | RS-485 |
| Safety Type | Type 3 |
| Functional Safety | SIL 2 |
| Performance Level | PLd |
| Enclosure Rating | IP65 |
| Housing Material | Aluminum |
| Optical Window Material | Polycarbonate |
| Operating Temperature | -10°C to +50°C |
| Weight | 0.8 kg |
Information About SE2L-H05LP
The SE2L-H05LP is part of the IDEC SE2L Series of safety laser scanners developed for industrial safety monitoring. It features an aluminum housing with a polycarbonate optical window and uses a 905 nm pulsed laser diode for scanning and detection. The unit operates from a 24 VDC supply and supports RS-485 communication for connection with compatible equipment and master-slave configurations. Its IP65 enclosure and Type 3 safety classification make it suitable for integration into industrial automation and machine safety systems.
Key Features:
- Safety protection range: Provides detection coverage up to 5 m within the configured safety zone.
- Warning range: Supports a non-safety warning area extending up to 20 m.
- 270° scanning field: Monitors a broad area around the scanner installation point.
- 905 nm laser technology: Uses a pulsed laser diode for distance and area detection.
- Class 1 laser: Incorporates Class 1 laser technology for the scanning system.
- Configurable detection areas: Allows monitoring zones to be adapted to different machine layouts.
- RS-485 communication: Provides a communication interface for compatible system configurations.
- IP65 enclosure: Protects the scanner against dust and water jets in suitable industrial environments.
The SE2L-H05LP delivers the reliability and precision required for machine guarding, robotic cell protection, automated equipment, and industrial access monitoring.
