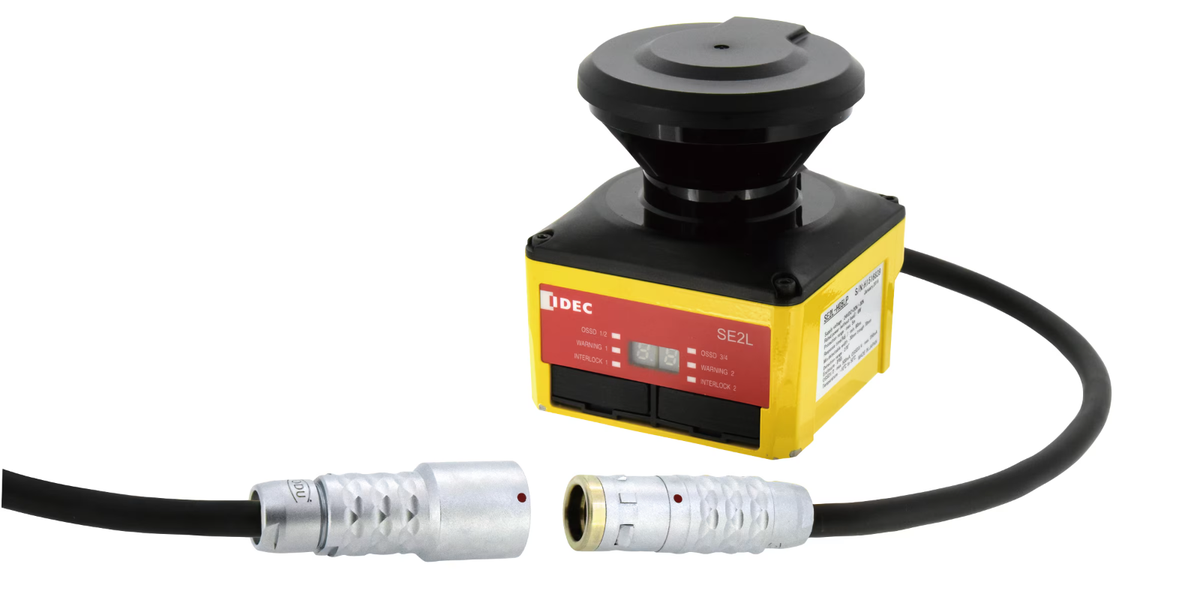

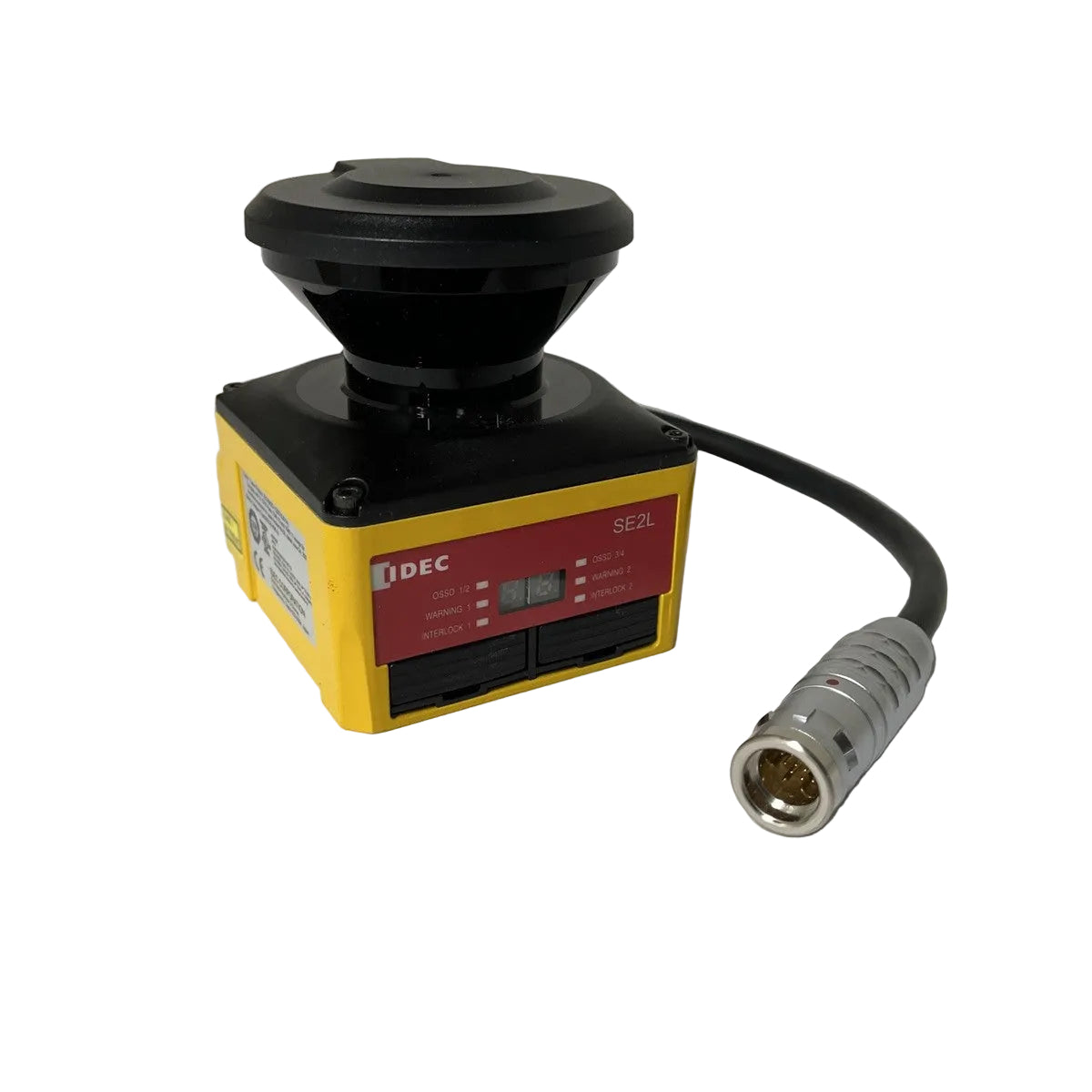

IDEC SE2L-H05LPC 270° Safety Laser Scanner with 5 m Protection Range
- Regular price
- $3,622.00
- Sale price
- $3,622.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE2L-H05LPC
Description
The IDEC SE2L-H05LPC is a safety laser scanner designed to monitor hazardous areas around industrial machinery, robotic systems, and automated equipment. It provides a 270° sensing field with a maximum safety protection range of 5 m and a non-safety warning range of 20 m. The connector-type configuration is intended for integration into industrial machine safety and access-monitoring systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | IDEC |
| Category | Safety Components |
| Part Number | SE2L-H05LPC |
| Subcategory | Safety Laser Scanners |
| Series | SE2L Series |
| Protection Range | Maximum 5 m |
| Warning Range | Maximum 20 m, non-safety |
| Sensing Angle | 270° |
| Scan Cycle | 30 ms |
| Scan Area | Maximum 32 patterns; up to 128 area sets with encoder input |
| Laser Wavelength | 905 nm |
| Laser Classification | Class 1, IEC 60825-1 |
| Safety Type | Type 3 |
| Functional Safety | SIL 2 |
| Performance Level | PLd |
| Enclosure Rating | IP65 |
| Power Supply | 24 VDC |
| Housing Material | Aluminum |
| Optical Window | Polycarbonate |
| Connector Cable | 0.3 m waterproof connector |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 80 mm W × 80 mm D × 95 mm H, without cable |
| Weight | 0.5 kg |
Information About SE2L-H05LPC
The SE2L-H05LPC belongs to IDEC’s SE2L Series of safety laser scanners and uses a compact aluminum housing with a polycarbonate optical window. The unit uses a 905 nm pulsed laser diode and Class 1 laser technology for area detection. Its connector configuration uses a 0.3 m waterproof connector cable, distinguishing it from the 3 m flying-lead configuration of the SE2L-H05LP. The scanner supports configurable protection patterns, master-slave operation, and encoder inputs for use in automated safety applications.
Key Features:
- Safety protection range: Provides a maximum protection zone of 5 m for safety monitoring.
- Warning range: Provides a non-safety warning zone extending up to 20 m.
- 270° sensing angle: Covers a wide area around the scanner for machine and access monitoring.
- Configurable patterns: Supports up to 32 area patterns, with up to 128 area sets when the encoder input function is used.
- Scan cycle: Performs scanning with a 30 ms cycle at a rotational speed of 2,000 rpm.
- Laser technology: Uses a 905 nm pulsed laser diode with Class 1 laser classification.
- Connector configuration: Uses a 0.3 m waterproof connector rather than the flying-lead cable used on the H05LP version.
- Safety classification: Provides Type 3 safety classification with SIL 2 functional safety and PLd performance.
The SE2L-H05LPC delivers the reliability and precision required for machine guarding, robotic-cell protection, automated equipment, and industrial access monitoring.
