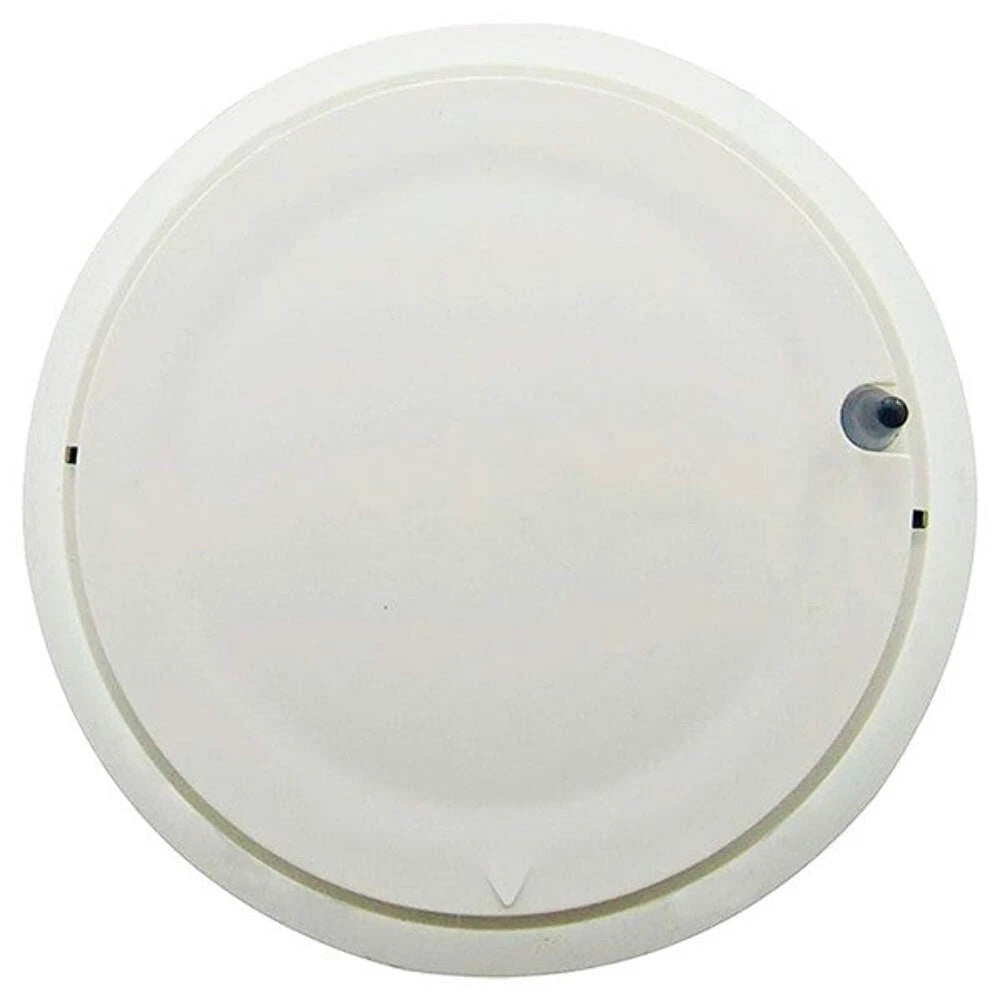

IDP-FIRE-CO-IV | Silent Knight Addressable Multi-Criteria Fire & CO Detector
- Regular price
- $477.00
- Sale price
- $477.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IDP-FIRE-CO-IV
Description
The Silent Knight IDP-FIRE-CO-IV is an addressable multi-criteria fire and carbon monoxide detector designed for use with IFP-series fire alarm control panels. It integrates smoke, heat, carbon monoxide, and light/flame sensing technologies to provide comprehensive hazard detection. This unit enhances detection accuracy while reducing nuisance alarms in commercial and residential applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Safety |
| Part Number | IDP-FIRE-CO-IV |
| Subcategory | Fire Detector |
| Detection Type | Smoke, CO, Heat, Light/Flame |
| Operating Voltage | 15 to 32 VDC |
| Operating Current | 200 µA at 24 VDC |
| Maximum Alarm Current | 2 mA at 24 VDC |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Standards Compliance | UL 268 (7th Ed), UL 521, UL 2075 |
| Communication Type | Addressable (Single SLC Address) |
| Drift Compensation | Automatic |
| Dimensions | 2.7 in (H) × 6.875 in (D) with B200S Base |
| Weight | 200 g (approx.) |
Information About IDP-FIRE-CO-IV
The IDP-FIRE-CO-IV is an intelligent addressable detector engineered for integration within Silent Knight IFP-series fire alarm systems. It combines four sensing elements—photoelectric smoke, electrochemical CO, thermal heat, and light/flame detection—within a single device to improve event verification. The detector uses advanced processing algorithms to analyze environmental conditions and distinguish actual threats from non-hazardous sources. Designed for indoor installations, it operates within standard low-voltage fire alarm circuits and supports compatibility with intelligent sounder bases.
Key Features:
-
Multi-Criteria Detection: Integrates smoke, CO, heat, and light/flame sensors for comprehensive hazard analysis.
-
Separate CO Signal: Provides distinct carbon monoxide alarm signaling for differentiated response.
-
Addressable Communication: Uses a single SLC address for efficient system integration.
-
Automatic Drift Compensation: Maintains sensor accuracy over time.
-
RealTest® CO Testing: Enables functional CO testing without hazardous gas exposure.
-
Nuisance Alarm Reduction: Advanced algorithms minimize false alarm conditions.
-
UL Listed: Complies with UL 268 7th edition, UL 521, and UL 2075 standards.
-
Sounder Base Compatibility: Designed for use with B200S intelligent sounder base.
The IDP-FIRE-CO-IV delivers the reliability and precision required for integrated fire and carbon monoxide detection systems.
