IE-3000-4TC | Cisco Industrial Ethernet 3000 Series Switch
- Regular price
- $397.00
- Sale price
- $397.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IE-3000-4TC
Description

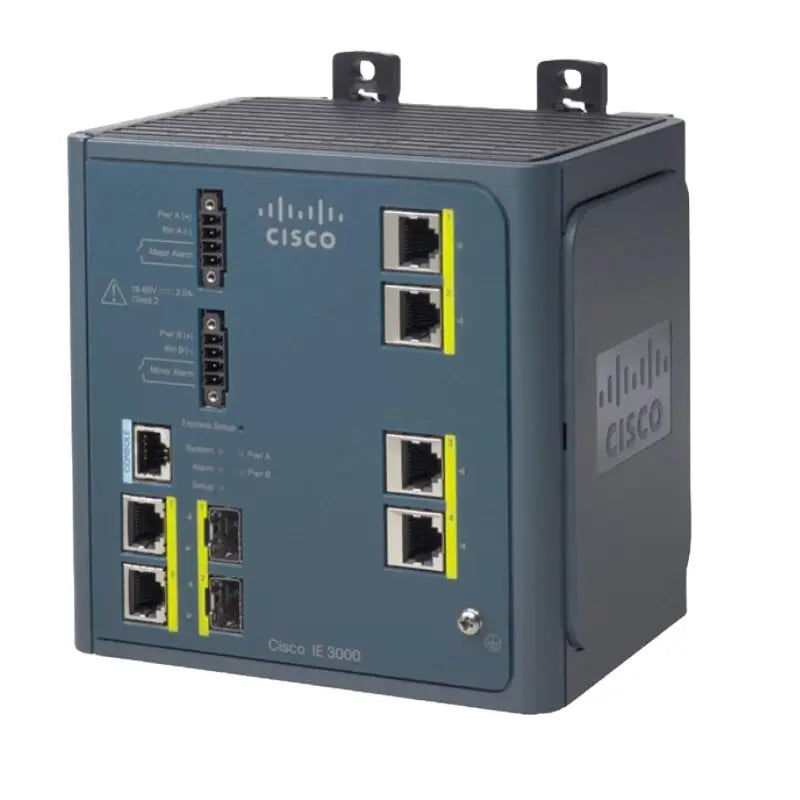

The Cisco IE-3000-4TC is a rugged, compact industrial Ethernet switch designed for harsh environments and mission-critical applications. It offers Layer 2 capabilities, dual-purpose uplinks, and modular expansion options for industrial network flexibility.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Equipment
|
| Part Number | IE-3000-4TC |
| Subcatecory |
Industrial Ethernet Switches
|
|
Ports
|
4 x 10/100 Ethernet, 2 x dual-purpose copper/SFP uplinks |
|
Expansion Module Support
|
2 Cisco modules (IEM-3000-8FM=, IEM-3000-8TM=) |
|
DC Input Range
|
18VDC to 60VDC |
|
Software Image
|
LAN Base (Layer 2) |
|
Switching Fabric
|
16 Gbps |
|
Forwarding Rate
|
6.5 Mpps (64-byte packets) |
|
Memory
|
128 MB DRAM, 64 MB Compact Flash |
|
MAC Address Support
|
Up to 8000 (Layer 2), 2000 (Layer 3) |
|
IGMP Support
|
256 groups (L2), 1000 multicast routes (L3) |
|
Unicast Routes
|
Up to 3000 (Layer 3) |
|
Jumbo Frame Support
|
Up to 9018 bytes (Gigabit uplinks) / 1998 bytes (others) |
|
Dimensions (W x H x D)
|
6.0" x 5.8" x 4.4" (152mm x 147mm x 112mm) |
|
Weight
|
4.4 lb (2.0 kg) |
Information About IE-3000-4TC
The IE-3000-4TC is part of the Cisco Industrial Ethernet 3000 Series, delivering reliable and scalable switching for industrial automation and control systems. This switch is equipped with four 10/100 Ethernet ports and two dual-purpose uplink ports, which can operate as either 10/100/1000 copper or SFP fiber connections — one active per uplink. Built with modular flexibility in mind, the IE-3000-4TC supports a variety of expansion modules, including the Cisco IEM-3000-8FM= (fiber) and IEM-3000-8TM= (twisted pair) modules.
Key Features:
- Flexible Uplink Options: features two dual-purpose uplinks configurable for either 10/100/1000Base-T copper or SFP fiber, offering connectivity choice per port.
- Modular Expandability: supports two Cisco expansion modules for fiber or twisted pair extensions, enabling scalable deployment in diverse industrial settings.
- Industrial-Grade Power: operates with a broad DC input range from 18V to 60V, ensuring reliability in power-variable environments.
- High Switching Performance: includes a 16 Gbps switching fabric and 6.5 Mpps forwarding rate for wire-speed performance across demanding industrial networks.
- Advanced Layer 2 Capabilities: supports up to 8000 MAC addresses, IGMP multicast groups, and jumbo frames up to 9018 bytes for high-throughput applications.
- Compact Rugged Design: enclosed in a robust 4.4 lb (2.0 kg) industrial chassis with small footprint dimensions, ideal for DIN-rail or wall-mounted installations.
The IE-3000-4TC delivers industrial-strength switching with modular expansion, flexible uplinks, and a robust feature set tailored for critical automation networks.
