IFP-1000 | Honeywell Silent Knight Fire Alarm FACP Board Parts
- Regular price
- $3,419.05
- Sale price
- $3,419.05
- Regular price
-
$3,599.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IFP-1000
Description
The Honeywell IFP-1000 is a powerful addressable fire alarm control panel (FACP) from the Silent Knight series, offering intelligent device management, digital communication, and modular expansion. Though this unit powers up on 120V, it has a known display issue and is currently non-functional.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Fire Alarm Control Panels
|
| Part Number | IFP-1000 |
| Subcategory | Addressable FACP Components / Parts |
| Supported Devices | 127 Hochiki or 99 IDP detectors + 99 IDP modules (expandable) |
| Expansion Capacity | Up to 1016 Hochiki or 792 IDP devices |
| Communication | Built-in UL-listed digital communicator |
| Wiring Style | Class B (Style 4), Class A (Style 6 or 7) for SLC/SBUS |

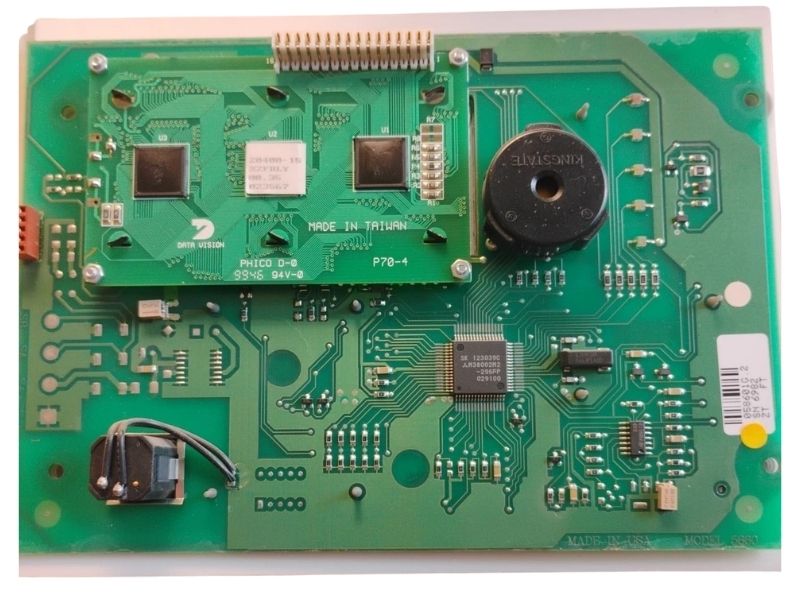

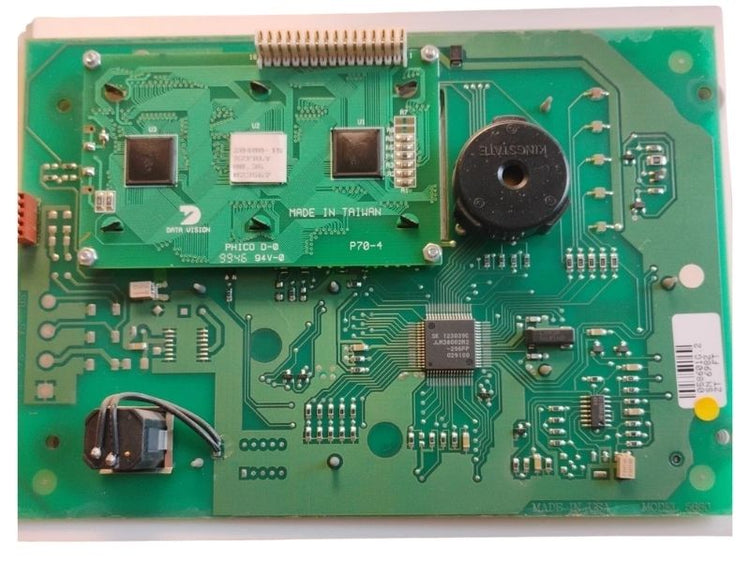

| Interface | 80-character LCD (non-working in this unit) |
| Drift Compensation | Automatic |
| Input Voltage | 120 VAC |
| Compatibility | Hochiki and IDP device protocols |
| Dimensions | 13 × 13 × 6 in |
| Weight | 6 lbs |
Information About IFP-1000
The IFP-1000 is a robust, addressable fire alarm control system designed to support both Hochiki and IDP devices. It can manage up to 127 Hochiki or 99 IDP detectors and 99 modules out of the box, with scalable expansion up to 1016 Hochiki or 792 IDP devices. The panel features a modular design with built-in UL-listed digital communication for remote monitoring and configuration. It supports both Class A and Class B wiring styles for SLC and SBUS, allowing for flexible installations. Equipped with features like automatic drift compensation, maintenance alerts, and day/night sensitivity settings, the system also includes a built-in 80-character backlit LCD annunciator. It is housed in a rugged enclosure and optimized for fast programming and device testing through enhanced SKSS software.
Key Features:
- Extensive Device Support: Handles 127 Hochiki or 99 IDP detectors and 99 modules (expandable to 1016 Hochiki or 792 IDP devices).
- Built-in Communicator: UL-listed digital communicator provides centralized reporting by point or zone.
- Flexible Wiring: Operates with standard, non-shielded wire in Class A or B configuration for both SLC and SBUS.
- Advanced Maintenance Tools: Includes drift compensation, sensor sensitivity settings, and maintenance alerts.
- User Interface: Features a backlit 80-character LCD display for system status and configuration (note: display issue in this unit).
- Intelligent Power Distribution: Built-in support for distributed, intelligent power modules.
- Fast Programming Interface: SKSS software improves upload/download speeds by up to 5x.
- Automatic Device Testing: Periodically tests addressable devices without manual intervention.
The IFP-1000 provides scalable, intelligent fire protection with versatile device support and powerful diagnostic features, though the current board has a faulty display.
