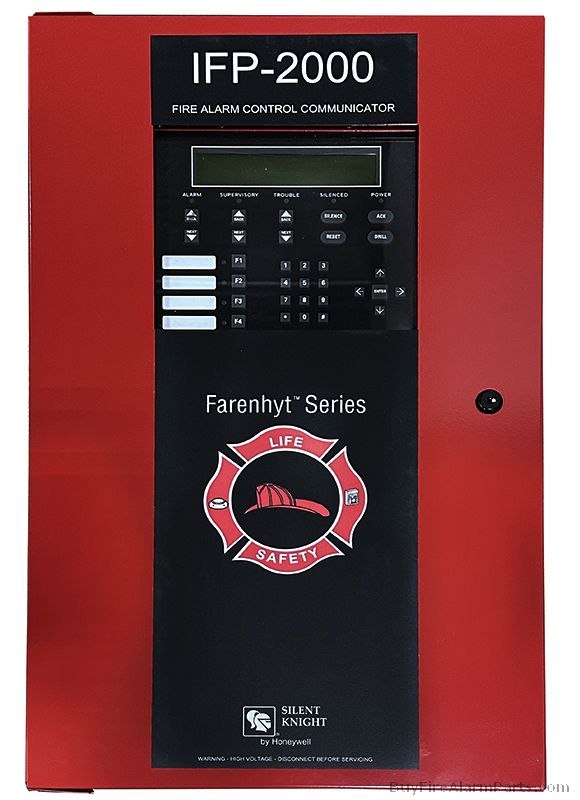

IFP-2000 | Silent Knight Fire Alarm Control System
- Regular price
- $4,347.00
- Sale price
- $4,347.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IFP-2000
Description
The IFP‑2000 is a scalable analog/addressable fire alarm control panel designed for medium to large commercial and industrial facilities. With built-in support for up to 318 addressable devices and expansion capacity up to 636 points, it offers flexible fire detection and notification configurations. Engineered for advanced control, it supports networking of up to 16 panels and integrates seamlessly with IDP and SD protocol devices.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Silent Knight |
| Category |
Fire Alarm Systems
|
| Part Number | IFP-2000 |
| Subcategory | Addressable Fire Control Panels |
| Type | Intelligent Analog/Addressable Fire Alarm Control Panel |
| Device Capacity | 159 IDP sensors + 159 IDP modules or 127 SD devices/loop |
| Max Points (with expansion) | 636 per panel (with 5815XL); 10,176 in networked systems |
| Networking Capability | Up to 16 interconnected panels |
| Flexput Circuits | 8 programmable (3A each @ 24 VDC) |
| Relays | 1 Form C trouble relay + 2 programmable Form C relays |
| Power Supply | 120 VAC / 240 VAC |
| Output Power | 9A @ 24 VDC (power-limited) |
| Display | Four-line LCD, 40 characters per line |
| Programming Interface | USB + software suite (SK‑SCK, Silent Knight Tools) |
| Cabinet Dimensions | 16″W × 26.4″H × 4.65″D (40.6 × 67 × 11.8 cm) |
| Flush Mount Size | 14.75″W × 25″H × 4″D (37.5 × 63.5 × 10.2 cm) |
| Operating Temperature | 32–120°F (0–49°C) |
| Humidity | 10–93% non-condensing |
| Approvals | UL, FM, CSFM, OSHPD, NFPA 72 compliant |
| Battery Backup |
17–55 AH; up to 18 AH internal, larger in RBB or AB-55 box |
| Weight | 28 lb (12.8 kg) |
Information About IFP-2000
The IFP‑2000 is a fully intelligent analog/addressable fire alarm control panel equipped with one signaling line circuit (SLC) supporting up to 159 IDP sensors and 159 IDP modules, or 127 SD devices per loop. It can be expanded using the 5815XL SLC expander to manage up to 636 points. The system includes Flexput™ circuits, a dual-line digital communicator, built-in synchronization for leading notification appliances, and extensive network interconnectivity for up to 16 panels—totaling over 10,000 points. With support for both Class A and B wiring styles, JumpStart auto-programming, and diagnostic features such as drift compensation and sensitivity testing, the IFP-2000 ensures reliable fire protection with advanced control options.
Key Features:
- High Device Capacity: Supports up to 318 addressable devices (expandable to 636 with SLC expander).
- Panel Networking: Link up to 16 panels for a combined capacity of 10,176 addressable points.
- Dual RS‑485 Communication: Ensures reliable communication with system accessories.
- Eight Flexput™ Circuits: Configure for notification, auxiliary power, or conventional detector inputs.
- Programmable Relays: Includes Form C relays for trouble and auxiliary conditions, rated at 2.5A.
- Built-in Digital Communicator: UL‑listed for remote system event reporting and supervision.
- Advanced Diagnostics: Offers sensitivity testing, drift compensation, day/night thresholds, and maintenance alerts.
- Backlit LCD Display: Four-line, 40-character display provides system status and interaction.
- JumpStart™ Auto Programming: Simplifies initial configuration with default logic.
- Agency Listings: UL, FM, CSFM, OSHPD, and City of New York approved.
The IFP‑2000 delivers the scalability, diagnostics, and reliability required for advanced life safety systems across single or multi-building environments.
