IFP-300B | Silent Knight Intelligent Addressable Fire Alarm Control Panel with IP/POTS Communicator
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IFP-300B
Description

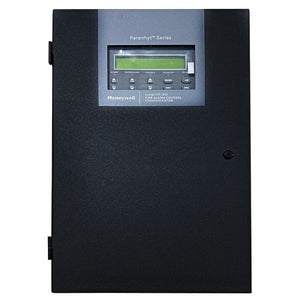

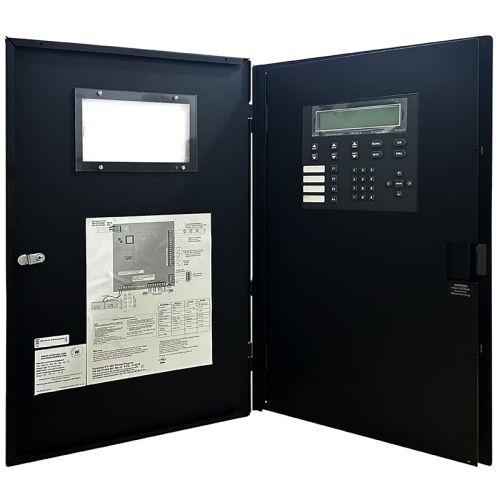

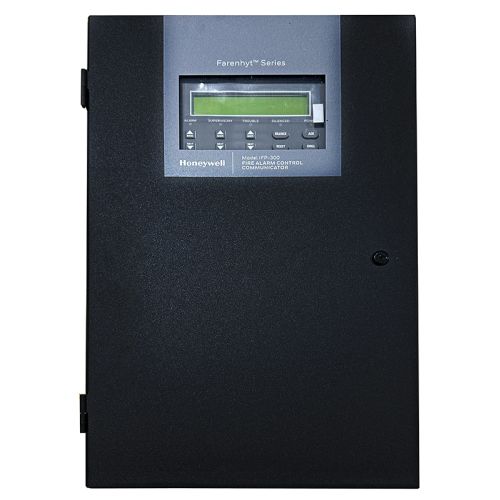

The Silent Knight IFP-300B is an intelligent addressable fire alarm control panel housed in a black surface-mount cabinet with a built-in IP/POTS communicator. It supports up to 300 addressable points using IDP/SK devices and offers advanced features like JumpStart auto programming, field-upgradable firmware, and integrated network capability for up to 32 panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Equipment |
| Part Number | IFP-300B |
| Subcategory | Intelligent Addressable FACP |
| Type | Intelligent addressable fire alarm control panel |
| Device Capacity | Up to 300 (IDP/SK) or 254 (SD) addressable points |
| SLC Loops | 1 built-in; supports IDP/SK or SD devices |
| NAC / Flexput Circuits | 4 configurable circuits, 3.0 A each, 6.0 A total |
| Communication | Built-in IP and POTS communicator; optional cellular |
| Networking | Up to 32 panels via SK-NIC (copper or fiber) |
| Programming Interface | Onboard keypad or PC via USB (HFSS software) |
| Software Features | JumpStart AutoProgramming®, drift compensation, maintenance alerts |
| Display | 4-line LCD with 40 characters per line (160 total) |
| Supported Devices | Up to 159 IDP/SK detectors and 159 IDP/SK modules or 127 SD devices |
| Annunciation & Reporting | Supports RA-2000 annunciators and 5824 printer interface |
| Primary Power | 120 VAC, 60 Hz, 3.3 A input |
| Battery Support | Two 18 Ah internal batteries; charger supports 17–55 Ah |
| Mounting Options | Surface or flush mount |
| Firmware Update | Field-upgradable |
| Enclosure Color | Black |
| Compatibility | AMSECO, Gentex®, System Sensor®, and Wheelock synchronization |
| Weight | 16 lbs |
| Dimensions | 26.40 × 16.40 × 4.10 in |
Information About IFP-300B
The IFP-300B is a high-performance addressable fire alarm control panel from Honeywell Silent Knight, designed to provide advanced system management and communication in commercial and institutional environments. It includes one built-in SLC loop that supports IDP/SK or SD device families and can handle up to 300 addressable points. The unit features four configurable Flexput circuits that can function as NAC outputs or auxiliary power, providing design flexibility. With a built-in IP/POTS communicator, USB programming port, and network support for up to 32 sites via the SK-NIC card, the IFP-300B ensures fast configuration, reliable data transmission, and comprehensive event monitoring in a secure black cabinet enclosure.
Key Features
- Integrated IP/POTS Communicator: Provides built-in dual communication paths for reporting via phone line or IP without requiring add-on modules.
- Expandable Capacity: Supports up to 300 addressable points using IDP/SK devices or 254 points with SD devices.
- Versatile Flexput Circuits: Four configurable outputs can be used as NACs or auxiliary power circuits for flexible design.
- Advanced Programming: Features JumpStart AutoProgramming® and onboard USB interface for quick setup and maintenance.
- Comprehensive Networking: Connects up to 32 panels through SK-NIC modules using copper or fiber network options.
- High-Visibility Display: 4×40 LCD screen provides clear visibility for system messages and diagnostics.
- Multiple Device Compatibility: Supports IDP, SK, and SD devices, as well as synchronization with AMSECO, Gentex, System Sensor, and Wheelock appliances.
- Secure Black Cabinet: Available in a durable black enclosure suitable for surface or flush mounting.
The IFP-300B delivers the reliability and precision required for intelligent, scalable fire alarm control in modern commercial and industrial safety systems.
