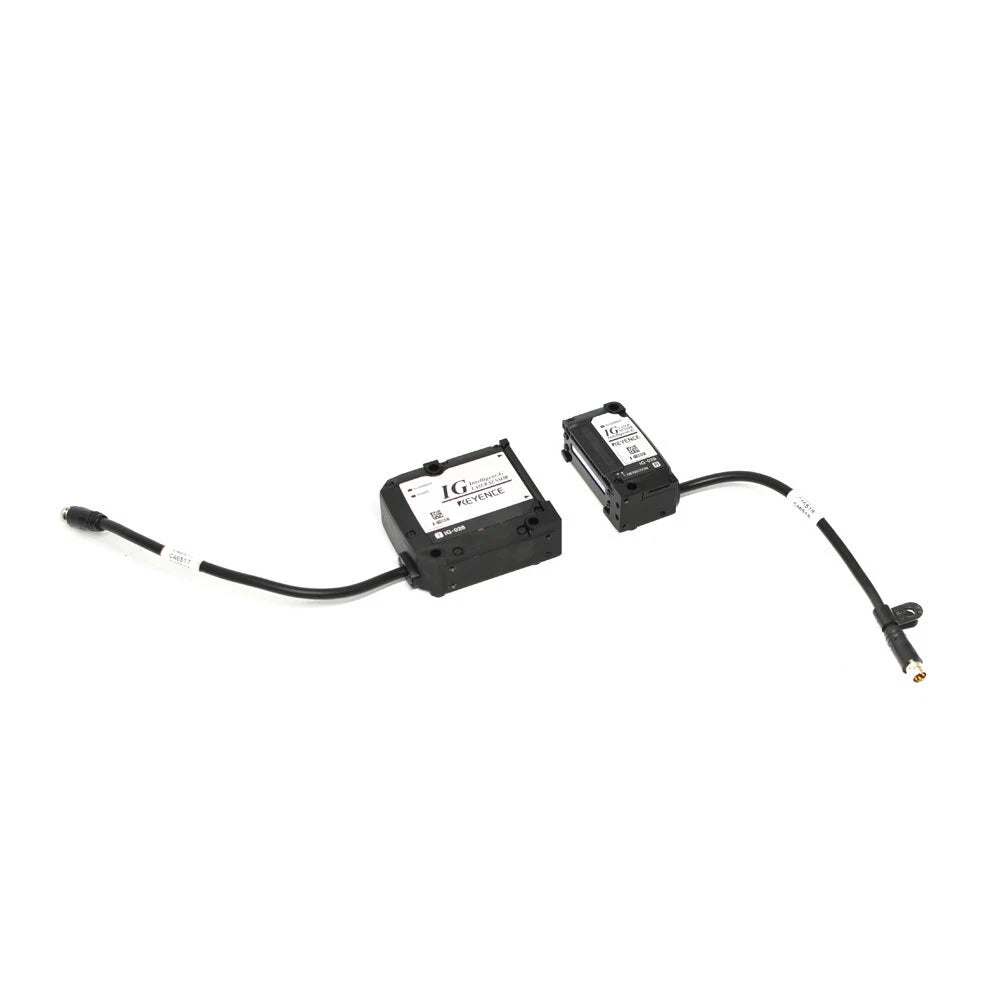

IG-028 | Keyence Intelligent-G Laser Sensor, CCD Micrometer, 28 mm Range, IP67
- Regular price
- $829.00
- Sale price
- $829.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IG-028
Description
The Keyence IG-028 Intelligent-G Laser Sensor is a high-precision laser micrometer sensor consisting of a transmitter and receiver pair. It features a CCD detection method for accurate measurement of transparent, metallic, or moving targets over a 28 mm range. Designed for industrial inspection, positioning, and gauging, the sensor provides analog output and LED indication for stable, real-time measurement performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | IG-028 |
| Subcategory | Photoelectric |
| Operation Principle | CCD method |
| Light Source | 660 nm visible light semiconductor laser |
| Laser Class | Class 1 (FDA / IEC / JIS) |
| Measuring Range | 28 mm (1.10") |
| Mounting Distance | 0–1500 mm (59.06") |
| Minimum Detectable Object | 0.1 mm (0.0039") high-sensitivity / 0.2 mm (0.0079") standard |
| Repeatability | 5 µm (0.20 mil) at 100 mm |
| Linearity | ±0.1% of F.S. (±28 µm) |
| Sampling Cycle | 980 µs (490 µs in high-speed mode) |
| Ambient Light Resistance | 5,000 lux (incandescent) / 5,000 lux (sunlight) |
| Enclosure Rating | IP67 (IEC60529) |
| Operating Temperature | -10°C to +45°C (14°F to 113°F) |
| Relative Humidity | 35–85% RH (no condensation) |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm (2 h in X, Y, Z) |
| Shock Resistance | 1000 m/s² |
| Operation Indicator | Optical alignment and power LEDs (red/green) |
| Output Type | Analog (voltage or current) |
| Case Material | Zinc die-cast (lower), PBT (upper), Polyarylate display part, SUS304 (metal components) |
| Lens Cover | Glass |
| Cable | PVC, 2 m length (included) |
| Accessories | Transmitter ×1, Receiver ×1, Sensor head cables (2 m ×2) |
| Weight | Approx. 0.75 lbs (500 g, including cables) |
Information About IG-028
The IG-028 is part of Keyence’s IG Series Intelligent-G Laser Sensors, combining CCD-based optical technology with advanced signal processing for micron-level accuracy. With a visible 660 nm semiconductor laser, it achieves exceptional repeatability and precision in both high-sensitivity and standard modes. The sensor’s IP67-rated zinc die-cast housing ensures durability in challenging factory environments. Equipped with an optical alignment LED and analog output, it integrates seamlessly into automation systems for measurement, edge detection, and part verification tasks.
Key Features:
- CCD Detection Method: Delivers high-resolution measurement accuracy and stability.
- Compact 28 mm Range: Suitable for short-distance precision measurement applications.
- Visible Laser Source: 660 nm red semiconductor laser simplifies alignment and setup.
- High Repeatability: ±5 µm at 100 mm distance ensures consistent measurement results.
- Robust Construction: IP67-rated enclosure with zinc die-cast and PBT housing for harsh environments.
- Dual LED Indicators: Green/red LED alignment and status indicators for transmitter and receiver.
- Wide Operating Range: Maintains performance up to 1500 mm mounting distance.
- Temperature Stability: ±0.01% F.S./°C ensures minimal drift in changing thermal conditions.
- Flexible Mounting: DIN-rail compatible with plug-in 2 m sensor head cables.
- Complete Set: Includes transmitter, receiver, and preassembled cables for fast installation.
The IG-028 provides the precision, speed, and reliability needed for accurate part dimension, alignment, and displacement measurement in automated systems.
