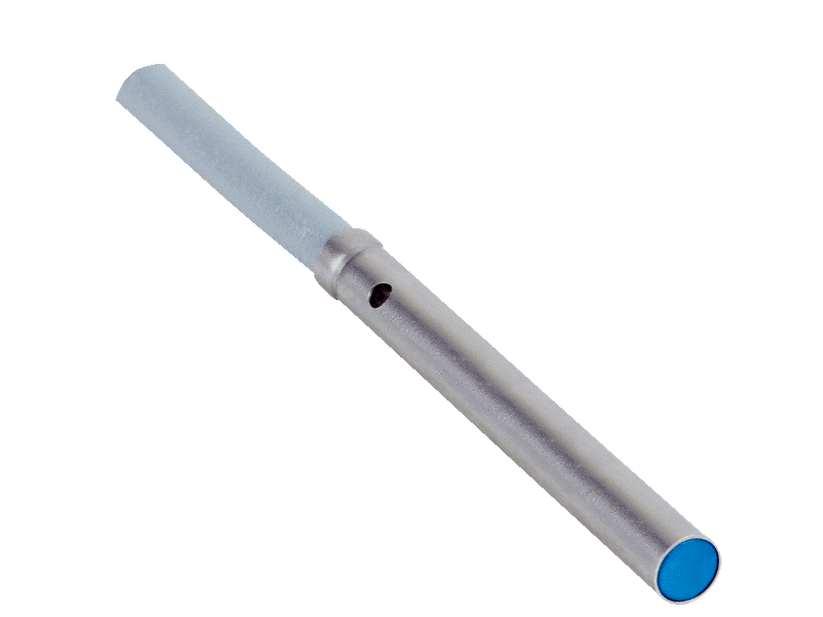

IH03-0B6PO-VU1 | SICK Miniature Inductive Proximity Sensor 0.6 mm PNP
- Regular price
- $414.00
- Sale price
- $414.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IH03-0B6PO-VU1
Description
The SICK IH03-0B6PO-VU1 is a compact inductive proximity sensor designed for precise detection of metallic objects at very short distances. With a 0.6 mm sensing range and high switching frequency, it provides fast and reliable performance in space-constrained industrial applications. Its stainless steel housing and flush-mount design ensure durability and stable operation in harsh environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Sensors |
| Part Number | IH03-0B6PO-VU1 |
| Subcategory | Inductive Proximity Sensors |
| Sensor Type | Inductive proximity sensor |
| Housing Design | Cylindrical, smooth |
| Housing Diameter | 3 mm |
| Installation Type | Flush (shielded) |
| Sensing Range (Sn) | 0.6 mm |
| Safe Sensing Range (Sa) | 0.486 mm |
| Switching Output | PNP |
| Output Function | Normally closed (NC) |
| Electrical Wiring | DC, 3-wire |
| Switching Frequency | Up to 5,000 Hz |
| Supply Voltage | 10–30 V DC |
| Current Consumption | Approx. 10 mA |
| Continuous Current | ≤ 100 mA |
| Connection Type | Cable, 3-core, 2 m |
| Cable Material | PUR |
| Housing Material | Stainless steel V2A (AISI 303) |
| Sensing Face Material | Plastic, POM |
| Enclosure Rating | IP67 |
| Operating Temperature | -25 °C to +70 °C |
| Housing Length | 22 mm |
| Weight | Approx. 15 g |
Information About IH03-0B6PO-VU1
The IH03-0B6PO-VU1 is part of SICK’s IH series of miniature inductive proximity sensors developed for high-precision automation tasks. It operates using an inductive sensing principle, making it suitable exclusively for metal target detection with excellent repeatability. The sensor features a PNP normally closed output and is pre-wired with a 2 m PUR cable for straightforward installation. Designed for continuous industrial use, it includes comprehensive protection against short circuit, reverse polarity, shock, and vibration.
Key Features:
- Inductive Proximity Sensing: Designed for reliable non-contact detection of metallic objects.
- Ultra-Short Sensing Range: 0.6 mm nominal sensing distance for high-precision applications.
- Flush Mount Design: Allows installation fully embedded in metal without loss of performance.
- High Switching Frequency: Up to 5,000 Hz for fast detection in dynamic processes.
- PNP Normally Closed Output: Compatible with standard industrial PLC inputs.
- Cylindrical Miniature Housing: Ø3 mm smooth design for extremely tight installation spaces.
- Robust Stainless Steel Construction: V2A (AISI 303) housing for mechanical durability.
- Pre-Wired PUR Cable: 2 m, 3-core cable suited for industrial environments.
- Integrated Protection Functions: Includes short-circuit and reverse polarity protection.
The IH03-0B6PO-VU1 delivers the reliability and precision required for miniature inductive sensing in high-speed industrial automation systems.
