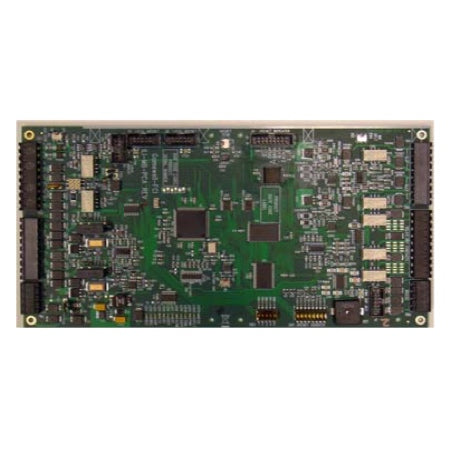

ILI95-MB-E3 | Gamewell-FCI Intelligent Loop Interface Main Board for E3 Series Systems
- Regular price
- $852.00
- Sale price
- $852.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ILI95-MB-E3
Description
The Gamewell-FCI ILI95-MB-E3 Intelligent Loop Interface Main Board is a key control module designed for E3 Series® fire alarm and mass notification systems. It serves as the main circuit interface, providing two signaling line circuits, notification appliance circuits, relay functions, and auxiliary power output for system integration. The ILI95-MB-E3 ensures fast communication, efficient system control, and reliable performance in complex building safety environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm & Life Safety Systems |
| Part Number | ILI95-MB-E3 |
| Subcategory | Intelligent Interface Module |
| Processor Type | 32-bit RISC microprocessor |
| Communication Protocol | Apollo SLC protocol |
| Signaling Line Circuits | Two Class A or B (Style 4, 6, or 7) |
| Device Capacity | 126 addressable devices per SLC |
| Notification Circuits | Two NACs, Class A or B, 2.0 A each |
| RS-485 Connectivity | Supports 16 ASM-16/ANU-48 and 6 LCD-E3 modules |
| Network Speed | 625K baud ARCNET |
| Event History Log | 4100 events |
| Relay Outputs | Alarm, trouble, and supervisory Form “C” contacts (2A @ 30 VDC) |
| UL Compliance | UL 864 9th Edition, UL 2572 |
| Optional Expansion | ANX board (up to 122 nodes), RPT-E3 repeater |
| Power Output | Auxiliary power and local energy city box output |
| Operating Type | Network-ready main board |
| Dimensions | 3.00 × 6.00 × 10.00 in |
| Weight | 0.8 lbs |
Information About ILI95-MB-E3
The ILI95-MB-E3 is an advanced main interface board engineered for use with Gamewell-FCI E3 Series® Expandable Emergency Evacuation and Combined Fire and Mass Notification Systems. It operates using Apollo protocol SLC devices and features a powerful 32-bit RISC processor for rapid data processing and precise control. The module supports up to 126 addressable devices per loop, offering scalability through RS-485 connectivity for additional modules and annunciators. With integral network capability at 625K baud, UL 864 and UL 2572 compliance, and optional fiber-optic communication via the RPT-E3 repeater, this module delivers reliable performance in mission-critical fire and evacuation systems.
Key Features:
- Dual Signaling Line Circuits: Supports two SLCs with up to 126 Apollo addressable devices per loop.
- High-Speed Network Communication: Operates on a 625K baud ARCNET network for rapid data transmission.
- Integrated Notification Circuits: Provides two Class A or B notification appliance circuits rated at 2.0 amps each.
- Flexible Connectivity: RS-485 interface supports up to 16 ASM-16 or ANU-48 LED driver modules and 6 LCD-E3 annunciators.
- Advanced Processing: Equipped with a 32-bit RISC processor for enhanced response time and reliability.
- Event Logging: Stores up to 4100 system events for diagnostics and maintenance tracking.
- UL Listed for Safety: Complies with UL 864 (9th Edition) and UL 2572 for mass notification systems.
- Optional Fiber-Optic Expansion: Compatible with RPT-E3 for signal boosting, transient protection, and extended communication distance.
The ILI95-MB-E3 delivers the reliability and precision required for intelligent fire detection and emergency communication control.
